0.12mm Thermocouple Extension Wire

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: Type K Thermocouple Wire

Payment & Shipping Terms

Minimum Order Quantity: 500

Packaging Details: Spool package with Carton box, Coil package with polybag

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

KP Thermocouple Extension Wire

,

0.12mm Thermocouple Extension Cable

,

Type K Thermocouple Extension Wire

Product Name:
Thermocouple Extension Wire
Color:
White, Red, Yellow And Etc
Certificate:
ISO9001
Grade:
KP/KN, Extension Grade KPX/KNX
Positive:
Chromel
Negative:
Alumel
Product Name:
Thermocouple Extension Wire
Color:
White, Red, Yellow And Etc
Certificate:
ISO9001
Grade:
KP/KN, Extension Grade KPX/KNX
Positive:
Chromel
Negative:
Alumel
Description

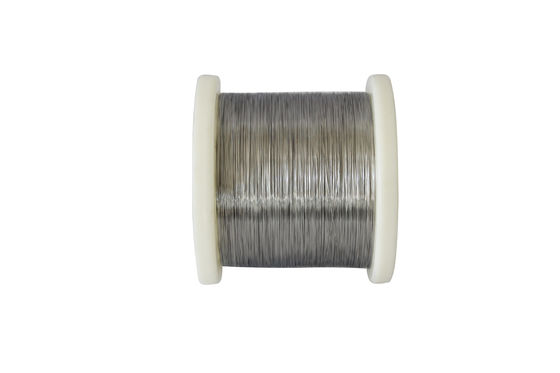

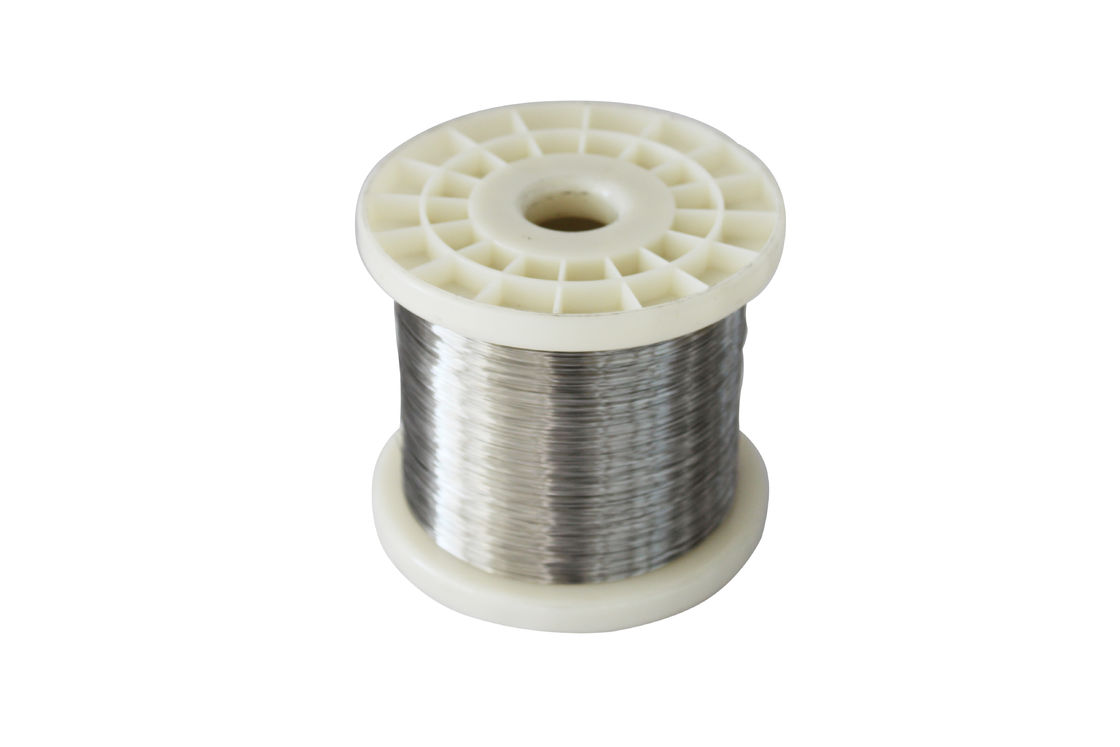

0.12mm Thermocouple Extension Wire

0.12mm Thermocouple Extension Wire 0


0.12mm Thermocouple Extension Wire 1


  • Thermocouple Extenion Wire

Type K Thermocouple (Nickel-Chromium / Nickel-Alumel): The type K is the most common type of thermocouple. It’s inexpensive, accurate, reliable, and has a wide temperature range. The type K is commonly found in nuclear applications because of its relative radiation hardness. Maximum continuous temperature is around 1,100C.














  • Thermocouple Wire
Code Wires component of the thermocouple
  +Positive leg -Negative leg
N Ni-cr-si (NP) Ni-si-magnesium (NN)
K Ni-Cr (KP) Ni-Al(Si) (KN)
E Ni-Cr (EP) Cu-Ni<constantan> (EN)
J Iron (JP) Cu-Ni<constantan> (JN)
T Copper (TP) Cu-Ni<constantan> (TN)



  • ​Standards
ASTM ANSI IEC DIN BS NF JIS GOST
(American Society for Testing and Materials) E 230 (American National Standard Institute) MC 96.1 (European Standard by the International Electrotechnical Commission 584)-1/2/3 (Deutsche Industrie Normen) EN 60584 -1/2 (British Standards) 4937.1041, EN 60584 - 1/2 (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 (Japanese Industrial Standards) C 1602 - C 1610 (Unification of the Russian Specifications) 3044






  • Size range

Wire: 0.12 to 8.0 mm.
