Constantan / Copper Nickel / CuNi44 Heating Resistance Wire For Winding

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: CuNi44

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: Spool package with Carton box, Coil package with polybag for Cuni44

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

CuNi44 Heating Resistance Wire

,

CuNi44 Copper Nickel Wire

,

Winding CuNi44 Wire

Material:
Nickel Copper
Nickel(Min):
44%
Resistivity:
0.5
Tensile Strength:
420 MPA
Density:
8.9 G/cm3
Application:
Heating, Resistivity
Condition:
Hard / Soft
Sureface:
Bright
Delivery Time:
7-20 Days
Maximum Temperature:
420℃
Melting Point:
1100℃
Material:
Nickel Copper
Nickel(Min):
44%
Resistivity:
0.5
Tensile Strength:
420 MPA
Density:
8.9 G/cm3
Application:
Heating, Resistivity
Condition:
Hard / Soft
Sureface:
Bright
Delivery Time:
7-20 Days
Maximum Temperature:
420℃
Melting Point:
1100℃
Description

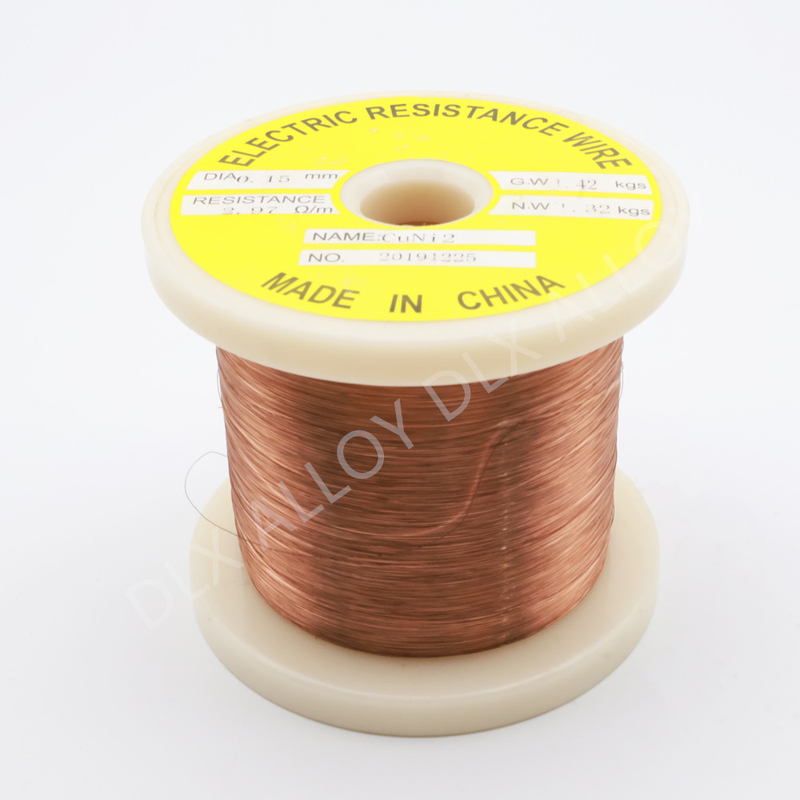

Constantan / Copper Nickel / CuNi44 Heating Resistance Wire For Winding

Constantan / Copper Nickel / CuNi44 Heating Resistance Wire For Winding 0




Constantan/Copper nickel/CuNi44 heating resistance wire for the winding

  • CuNi44 heating resistance wire



    Copper nickel alloy has low electric resistance,good heat-resistant and corrosion-resistant,easy to be processed and lead welded.
    It isused to make the key components in the thermal overload relay,low resistance thermal circuit breaker, and the electrical
    appliances. It is also an important material for electrical heating cable.


    Size dimension range:
    Wire: 0.05-10mm
    Ribbons: 0.05*0.2-2.0*6.0mm
    Strip: 0.05*5.0-5.0*250mm




  • Copper Nickel alloy performance tables
Properties/ Material Resistivity Max.working temperature Tensile strength Melting point Density TCR EMF vs Cu
( 200C μΩ.m) ( 0C ) ( Mpa ) ( 0C ) ( g/cm3 ) x10-6 / 0C (μV/ 0C)
          (20~600 0C) (0~100 0C)
NC003 0.03 200 210 1085 8.9 <100 -8
(CuNi1)
NC005 0.05 200 220 1090 8.9 <120 -12
(CuNi2)
NC010 0.1 220 250 1095 8.9 <60 -18
(CuNi6)
NC012 0.12 250 270 1097 8.9 <57 -22
(CuNi8)
NC015 0.15 250 290 1100 8.9 <50 -25
(CuNi10)
NC020 0.2 300 310 1115 8.9 <30 -28
(CuNi14)
NC025 0.25 300 340 1135 8.9 <25 -32
(CuNi19)
NC030 0.3 300 350 1150 8.9 <16 -34
(CuNi23)
NC035 0.35 350 400 1170 8.9 <10 -37
(CuNi30)
NC040 0.4 350 400 1180 8.9 0 -39
(CuNi34)
NC050 0.5 400 420 1200 8.9 <-6 -43
(CuNi44)

  • The Form we could offer
Size Range Wire Ribbon Strip Rod
dia 0.03-7.5mm dia 8.0-12.0mm (0.05-0.35)*(0.5-6.0)mm (0.50-2.5)*(5-180)mm 8-50mm






Do you provide free samples?
Yes, we can provide a free sample for testing,buyer should bear all the shipping costs.

What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
We are doing the best to match your demand.

What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
Normal order is 10-30days,it depends on customers' quantity.
Anyway,we try to offer good-quality products as soon as possible.
