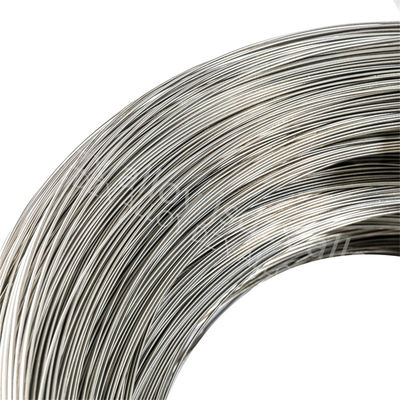

Premium-grade Cr20Ni80 (Nickel-Chromium 80/20 / Nikrothal 80 equivalent) precision electric resistance heating wire, engineered for continuous high-temperature service up to 1200C (2192F). Featuring 0.5mm ultra-uniform diameter, bright-annealed finish, and superior hot strength, this wire delivers non-sagging performance and excellent cyclic oxidation resistance in industrial electric furnaces, ceramic kilns, and heat-treating elements.

Product Overview

Product Overview: Cr20Ni80 High-Temperature Resistance Alloy Wire for Industrial Furnaces

Cr20Ni80 is the benchmark nickel-chromium electric resistance alloy (standard NiCr 80/20 matrix), specifically formulated for high-demand industrial heating applications requiring maximum operating temperatures up to 1200C (2192F).

Manufactured through vacuum induction melting and precision diamond die drawing, this 0.5mm bright-annealed wire develops a highly adherent, protective chromium oxide (Cr2O3) scale during initial heating. This self-healing ceramic layer prevents progressive internal oxidation, ensures non-magnetic stability at elevated temperatures, and delivers high electrical resistivity (1.09 micro-ohm-meter) with virtually zero element sagging over extended thermal cycles.

Technical Specifications

Key Engineering Features

Key Engineering Features of 0.5mm Cr20Ni80 Nichrome Resistance Wire

1. Exceptional 1200C High-Temperature Oxidation Resistance Under high-temperature oxidizing atmospheres, Cr20Ni80 forms an impervious, adhesive chromia surface layer that resists spalling during frequent on-off thermal cycles, significantly extending element lifespan compared to lower-nickel grades.

2. Superior High-Temperature Tensile Strength and Sag Resistance Unlike iron-chromium-aluminum (FeCrAl) alloys that suffer from severe grain coarsening and embrittlement after heating, Cr20Ni80 retains high hot strength and ductility, preventing element deformation and coil short-circuits inside furnace grooves.

3. Constant Electrical Resistivity and Uniform Heat Output The 0.5mm wire features tight cross-sectional tolerance (+/-0.01mm) and homogeneous chemical distribution, eliminating localized hot spots and ensuring uniform surface power loading (W/cm2) across multi-zone heating chambers.

Non-Magnetic and High Cold-Forming Ductility Supplied in a 100% bright-annealed soft state with elongation >= 20%, enabling tight mandrel coiling, wave-bending, and spiral winding without pre-heating, cracking, or surface flaking.

Industrial Applications

Industrial Applications: Where 0.5mm Cr20Ni80 Heating Wire Excels

• Industrial Electric Furnaces & Kilns: Open-coil, grooved refractory, and ceramic tube heating elements for metallurgical heat-treatment, tempering, and sintering furnaces up to 1200C.
• Laboratory & Muffle Furnaces: Precision heating spirals for high-temperature laboratory chambers, tube furnaces, and analytical test equipment.
• Semiconductor & Diffusion Equipment: High-purity, low-impurity heating coils for diffusion furnaces, crystal growth systems, and thermal processing chambers.
• Industrial Appliance & Air Heaters: Heavy-duty ceramic bobbin heaters, duct air heaters, and high-watt-density industrial radiant panels.

Product FAQ

Frequently Asked Questions (FAQ) for 0.5mm Cr20Ni80 Heating Wire

• Question 1: What makes Cr20Ni80 superior to FeCrAl (Kanthal) alloys for industrial furnace elements?

Answer: Although FeCrAl alloys offer higher maximum temperatures, they become extremely brittle after first heating and tend to sag at elevated temperatures. Cr20Ni80 maintains excellent ductility, non-magnetic properties, and superior hot tensile strength throughout its entire operating life, allowing elements to be easily repaired, reshaped, or re-welded even after thousands of operating hours.

• Question 2: What is the recommended surface load (W/cm2) for 0.5mm Cr20Ni80 wire in furnace elements?

Answer: For continuous 1000C to 1150C furnace operation with radiant heat dissipation, we recommend a surface power load between 2.0 and 4.0 W/cm2 depending on furnace atmosphere and element grooving. Operating within this range prevents premature element burnout and maximizes furnace thermal efficiency.

• Question 3: Can this 0.5mm Cr20Ni80 wire be welded to lead-out terminals?

Answer: Yes. Cr20Ni80 has outstanding weldability. It can be easily joined to low-resistance Ni-Fe or pure nickel terminal lead-out pins using TIG (argon arc) welding, spot welding, or mechanical crimping without requiring flux.

• Question 4: What are the packaging, MOQ, and quality certification standards?

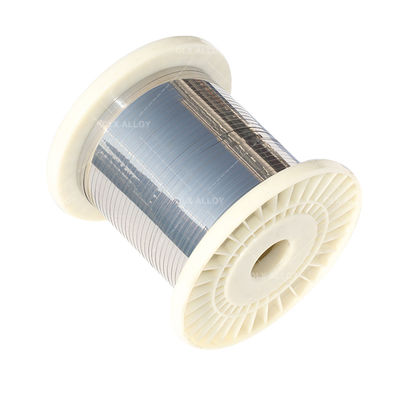

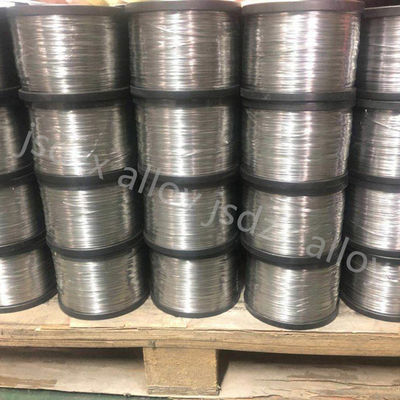

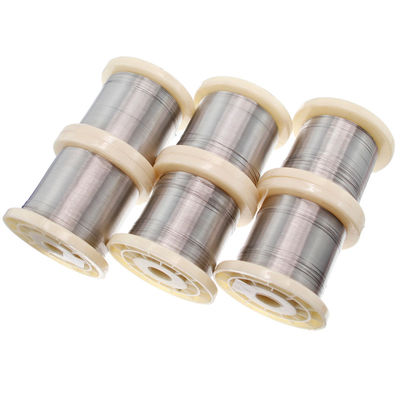

 Answer: Standard packaging is DIN 125 (1.5 kg), DIN 160 (3.0 kg), or DIN 200 (5.0 kg) plastic spools, precision-wound and packed in moisture-resistant cartons. Minimum order quantity is 5 kg, with 0.5 kg validation samples available. Every shipment includes full EN 10204 3.1 Mill Test Certificates verifying chemical composition, electrical resistance, and mechanical tensile properties.
