Nichrome 80 / 20 Cr20Ni80 Resistance Wire For Heating Element

Place of Origin China
Brand Name DLX
Model Number Cr20Ni80
Minimum Order Quantity 5
Packaging Details Spool package with Carton box, Coil package with polybag for Resistance wire
Delivery Time 5-21 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Nickel, Chromium Nickel(Min) 77%
Resistivity 1.09+/-0.05 Tensile Strength 637MPA
Elongtation ≥20% Application Heating, Resistivity
Condition Hard / Soft Sureface Bright, Oxided, Acide
Delivery Time 7-20 Days Name Resistance Wire
Highlight

Heating Element Cr20Ni80 Resistance Wire

,

Heating Element Nichrome 80 Resistance Wire

,

637MPA NiCr Alloy

Leave a Message
Product Description

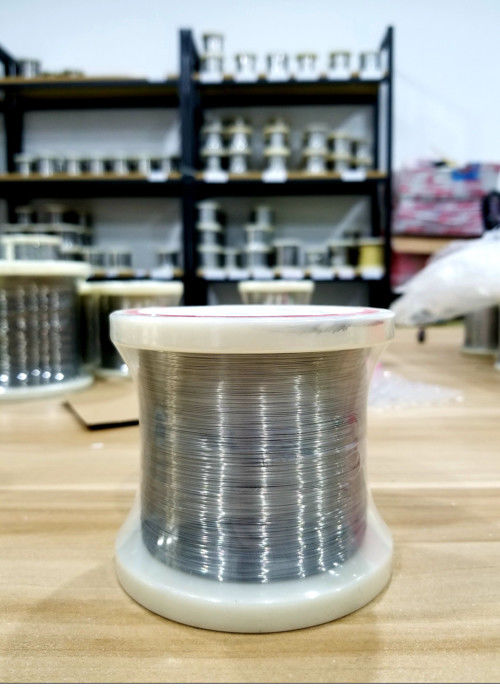

Nichrome 80 / 20 Cr20Ni80 Resistance Wire For Heating Element 0



Low Price Wholesale Nichrome 80 / 20 Cr20Ni80 Resistance Wire for Heating Element


Nichrome 80 / 20 Cr20Ni80 Resistance Wire For Heating Element 1


  • NiCr Series

The Cr20Ni80 resistance wire is composed of nickel-chromium alloy, which has high resistivity, good oxidation resistance and very stability. The maximum applicable temperature is up to 1200 degrees, and it has a longer service life than iron, chromium and aluminum.The alloy is widely used in household components, industrial furnaces and various resistance components, such as wirewound resistors, sheet metal resistors, hair dryers, electric furnaces, iron smelting, ovens, and even electronic cigarettes.



Nickel-chromium, nickel, ferrochrome alloy resistance wire with electric high temperature oxidation resistance, high strength, not soften and a series of advantages. When used in a long time, the same type and the permanent elongation is very small, which is more Cr20Ni80 alloy with excellent comprehensive properties, is to produce high-quality varieties of choice for electric components.










  • Nickel-chromium resistance wire performance tables
Performance material Cr10Ni90 Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Composition Ni 90 Rest Rest 55.061.0 34.037.0 30.034.0
Cr 10 20.023.0 28.031.0 15.018.0 18.021.0 18.021.0
Fe   ≤1.0 ≤1.0 Rest Rest Rest
Maximum temperature 1300 1200 1250 1150 1100 1100
Meltiing point 1400 1400 1380 1390 1390 1390
Density g/cm3 8.7 8.4 8.1 8.2 7.9 7.9
Resistivity   1.09±0.05 1.18±0.05 1.12±0.05 1.00±0.05 1.04±0.05
μΩ·m,20
Elongation at rupture ≥20 ≥20 ≥20 ≥20 ≥20 ≥20
Specific heat   0.44 0.461 0.494 0.5 0.5
J/g.
Thermal conductivity   60.3 45.2 45.2 43.8 43.8
KJ/m.h
Coefficient of lines expansion   18 17 17 19 19
a×10-6/
(201000℃)
Micrographic structure   Austenite Austenite Austenite Austenite Austenite
Magnetic properties   Nonmagnetic Nonmagnetic Nonmagnetic Weak magnetic Weak magnetic




  • The Form we could offer
Size Range

Wire
dia 0.03-7.5mm
Nichrome 80 / 20 Cr20Ni80 Resistance Wire For Heating Element 2
dia 8.0-12.0mm
Nichrome 80 / 20 Cr20Ni80 Resistance Wire For Heating Element 3
Ribbon
(0.05-0.35)*(0.5-6.0)mm
Nichrome 80 / 20 Cr20Ni80 Resistance Wire For Heating Element 4
Strip
(0.50-2.5)*(5-180)mm
Nichrome 80 / 20 Cr20Ni80 Resistance Wire For Heating Element 5
Rod
8-50mm

Nichrome 80 / 20 Cr20Ni80 Resistance Wire For Heating Element 6
