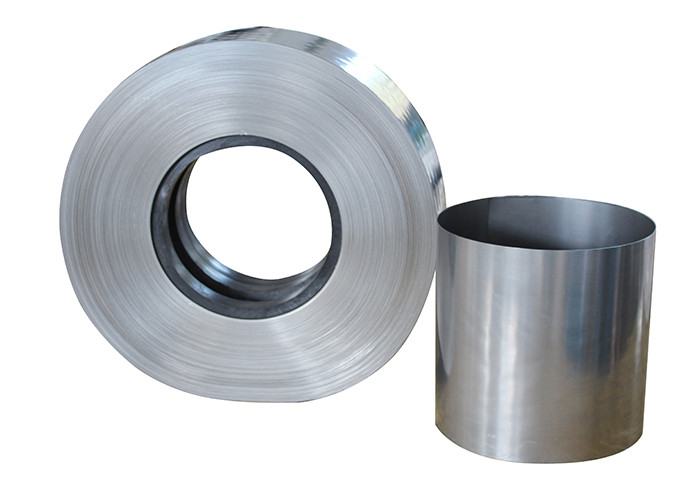

Ni60Cr15 Tubular Strip Nickel Chromium Iron Alloy
Product Details:
| Place of Origin: | China |
| Brand Name: | DLX |
| Model Number: | Ni60Cr15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Packaging Details: | Spool package with Carton box, Coil package with polybag |
| Delivery Time: | 5-21 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 tons per month |
|
Detail Information |
|||
| Material: | Nickel, Chromium | Nickel(Min): | 55% |
|---|---|---|---|
| Resistivity: | 1.12+/-0.05 | Tensile Strength: | 637MPA |
| Elongtation: | ≥20% | Application: | Heating, Resistivity |
| Condition: | Hard / Soft | Sureface: | Bright, Oxided, Acide |
| Delivery Time: | 7-20 Days | Name: | Resistance Heating Strip |
| High Light: | Ni60Cr15 Nickel Chromium Iron Alloy,Tubular Nickel Chromium,Strip Nickel Chromium Iron Alloy |
||
Product Description
- NiCr Series
Ni60Cr15 NiCr strip is high resistitivity alloy, it is suitable for temperature applications up to 1150°C. This alloy is characterized by high resistivity, good oxidation resistance, very good form stability, good ductility after use and excellent weldabilit. Ni60Cr15 is used for electric heating elements in domestic and industrial appliances. Typical applications: potentiometers, heavy-duty resistors, tubular heaters, electric furnaces, grills, hot plates, toasters, storage heaters, fan heaters, hand dryers, etc.
Common Name:Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,Electroloy, Nichrome, Alloy C, Alloy 675,Nikrothal 6, MWS-675, Stablohm 675,NiCrC
Ni60Cr15 Nickel-Chromium Nickel alloy resistance heating flat wire, ribbon.
- Nickel-chromium alloy performance tables
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Composition | Ni | 90 | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 30.0～34.0 |
| Cr | 10 | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | ||
| Maximum temperature℃ | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Meltiing point ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Density g/cm3 | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Resistivity | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | ||
| μΩ·m,20℃ | |||||||
| Elongation at rupture | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Specific heat | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | ||
| J/g.℃ | |||||||
| Thermal conductivity | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | ||
| KJ/m.h℃ | |||||||
| Coefficient of lines expansion | 18 | 17 | 17 | 19 | 19 | ||
| a×10-6/ | |||||||
| (20～1000℃) | |||||||
| Micrographic structure | Austenite | Austenite | Austenite | Austenite | Austenite | ||
| Magnetic properties | Nonmagnetic | Nonmagnetic | Nonmagnetic | Weak magnetic | Weak magnetic | ||
- The Form we could offer
|
||
|
||
|
||
|
||
|
||
