0Cr21Al4 Alloy Wire for High Temperature Electrolysis Hydrogen Generation

0Cr21Al4 Alloy Wire for High Temperature Electrolysis Hydrogen Generation

Brand Name:	DLX
Model Number:	FeCrAl Alloy Wire 0Cr21Al4
MOQ:	10kg
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China,Jiangsu

Certification:

Ce,Rohs

Supply Ability:

500 tons per month

Highlight:

0Cr21Al4 high temperature resistance wire

electrolysis hydrogen generation alloy wire

high performance resistance wire with warranty

Product Description

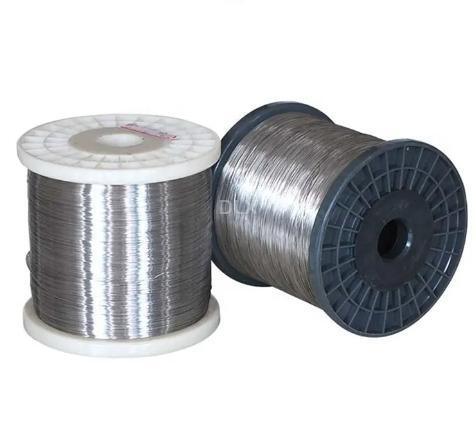

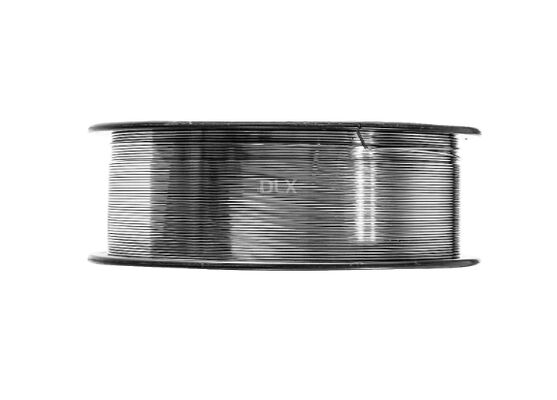

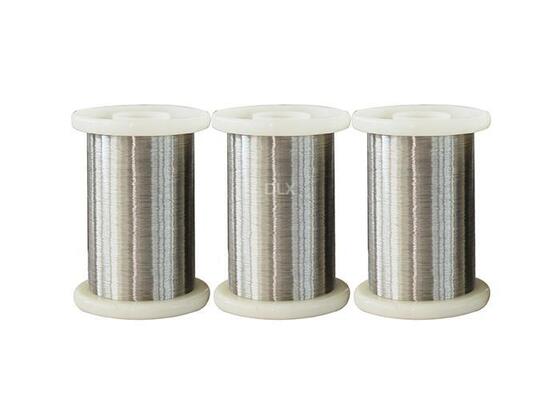

0Cr21Al4 Alloy Wire for High Temperature Electrolysis Hydrogen Generation

0Cr21Al4 Alloy Wire is a high-performance FeCrAl alloy composed primarily of iron, chromium (21%), and aluminum (4%). The unique blend of these elements gives the wire superior resistance to oxidation and corrosion, making it ideal for high-temperature electrolysis applications. In electrolysis systems, the wire acts as an electrode material, facilitating the process of splitting water into hydrogen and oxygen under the influence of an electric current.

The alloy's excellent electrical resistance and thermal stability make it well-suited for environments where high temperatures and aggressive electrolytes are present. Whether you're working with a small-scale or industrial-scale electrolyzer, 0Cr21Al4 FeCrAl Resistance Wire ensures reliable, efficient performance, making it a cornerstone for sustainable hydrogen generation.

Parameter Comparison Table

Alloy Nomenclature Performance	1Cr13Al4	0Cr25Al5	0Cr21Al6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
Chemical Composition (%) - Cr	12.0-15.0	23.0-26.0	19.0-22.0	20.5-23.5	18.0-21.0	21.0-23.0	26.5-27.8
Chemical Composition (%) - Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.3	3.0-4.2	5.0-7.0	6.0-7.0
Chemical Composition (%) - Re	Opportune	Opportune	Opportune	Opportune	Opportune	Opportune	Opportune
Chemical Composition (%) - Fe	Rest	Rest	Rest	Rest	Rest	Rest	Rest
Max. Continuous Service Temp. of Element (°C)	950	1250	1250	1250	1100	1350	1400
Resistivity at 20°C (μΩ.m)	1.25	1.42	1.42	1.35	1.23	1.45	1.53
Density (g/cm³)	7.4	7.1	7.16	7.25	7.35	7.1	7.1
Thermal Conductivity (KJ/m.h)	52.7	46.1	63.2	60.2	46.9	46.1	--
Coefficient of Linear Expansion (αx10⁻⁶/℃)	15.4	16	14.7	15	13.5	16	16
Melting Point Approx (°C)	1450	1500	1500	1500	1500	1510	1520
Tensile Strength (N/mm²)	580-680	630-780	630-780	630-780	600-700	650-800	680-830
Elongation at Rupture (%)	>16	>12	>12	>12	>12	>12	>10
Variation of Area (%)	65-75	60-75	65-75	65-75	65-75	65-75	65-75
Repeat Bending Frequency (F/R)	>5	>5	>5	>5	>5	>5	>5
Hardness (H.B.)	200-260	200-260	200-260	200-260	200-260	200-260	200-260
Continuous Service Time (Hours/°C)	--	≥80/1300	≥80/1300	≥80/1300	≥80/1250	≥80/1350	≥80/1350
Micrographic Structure	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetic Properties	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic

Available Shapes and Sizes

Shape	Size (mm)
Wire	0.05-7.5
Rod	8-50
Ribbon	(0.05-0.35)*(0.5-6.0)
Strip	(0.5-2.5)*(5-180)

Key Features

Exceptional Oxidation Resistance: With its high chromium content, 0Cr21Al4 Alloy Wire offers exceptional resistance to oxidation, even at elevated temperatures. This makes it ideal for the harsh environments found in electrolysis systems.
Stable Electrical Resistance: The wire maintains consistent electrical resistance throughout its operational life, ensuring that energy is efficiently transferred during the electrolysis process.
High Thermal Stability: Capable of withstanding temperatures up to 1,600 °C, this alloy wire is perfect for high-temperature electrolysis applications, where other materials might degrade over time.
Customization for Specific Applications: Available in various diameters and lengths, 0Cr21Al4 Alloy Wire can be customized to fit the exact requirements of your hydrogen production system.
Long-Term Durability: The alloy's superior oxidation and corrosion resistance translate into longer operational lifespans for your electrolysis systems, reducing maintenance and replacement costs.

Advantages of Using DLX's 0Cr21Al4 Alloy Wire

Enhanced Efficiency: The wire's optimized electrical properties ensure that the electrolysis process runs efficiently, helping you produce hydrogen more quickly and with less energy consumption.
Superior Durability: Thanks to its high melting point and corrosion resistance, 0Cr21Al4 Alloy Wire is built to last, even in the most demanding environments. This reduces the need for frequent replacements, saving you money in the long run.
Cost-Effective Solution: DLX offers a high-performance alloy wire at competitive prices, providing excellent value for businesses involved in hydrogen generation.
Industry-Leading Quality Control: Every batch of 0Cr21Al4 Alloy Wire undergoes stringent testing to ensure it meets the highest standards for performance and durability, so you can trust it to perform reliably over time.
Sustainability Commitment: As part of DLX's commitment to promoting clean energy, our 0Cr21Al4 Alloy Wire is a key component in enabling green hydrogen production, helping reduce global dependence on fossil fuels.

Industry Analysis

The hydrogen economy is gaining momentum globally, driven by the need for cleaner energy sources. Hydrogen produced through electrolysis offers a sustainable alternative to fossil fuels, with water being the only byproduct. As governments and industries focus on decarbonization, electrolysis-based hydrogen production is expected to play a central role in meeting future energy demands.

One of the key challenges in electrolysis is maintaining efficiency and performance under high temperatures and aggressive electrolytic conditions. 0Cr21Al4 Alloy Wire is perfectly suited to meet these challenges, offering superior resistance to corrosion and high thermal stability. With hydrogen production expected to increase in the coming years, materials like 0Cr21Al4 Alloy Wire will be essential to the widespread adoption of green hydrogen technologies.

Applications

Hydrogen Production via Electrolysis: The main application for 0Cr21Al4 Alloy Wire is in electrolysis systems used to split water into hydrogen and oxygen. This is a key technology for producing green hydrogen, a clean and sustainable energy source.
Fuel Cells: The wire can also be used in fuel cell technology, where it acts as an electrode in the process of converting hydrogen into electricity.
Renewable Energy Storage: Hydrogen produced through electrolysis can be stored and used as a clean energy source. 0Cr21Al4 Alloy Wire is crucial in improving the efficiency and effectiveness of electrolysis for energy storage systems.
Industrial Applications: The wire is also used in industries such as steel manufacturing and chemical processing, where hydrogen is needed for various reactions and processes.
High-Temperature Systems: Given its high melting point, 0Cr21Al4 Alloy Wire is also suitable for use in high-temperature heat exchangers and other systems requiring durable and efficient materials.

DLX's Competitive Advantage

DLX Corporation has built a reputation for providing high-performance materials that meet the rigorous demands of the modern hydrogen production industry. Our 0Cr21Al4 Alloy Wire is engineered to offer the highest quality and durability, ensuring that your electrolysis systems operate efficiently and reliably.

Why Choose DLX?

Experience and Expertise: With years of experience in the alloy industry, DLX understands the unique challenges of hydrogen production and offers tailored solutions to maximize performance.
Rigorous Quality Control: Every batch of 0Cr21Al4 Alloy Wire is carefully tested to ensure top-tier performance, durability, and efficiency.
Cost-Effective: DLX delivers high-quality materials at competitive prices, offering an economical solution without compromising on performance or reliability.
Sustainability Focus: By supporting clean hydrogen production, DLX is actively contributing to the transition to a more sustainable energy future.

Frequently Asked Questions

What makes 0Cr21Al4 Alloy Wire ideal for high-temperature electrolysis?

The high chromium and aluminum content provide excellent oxidation resistance, while its thermal stability and consistent electrical resistance make it perfect for high-temperature electrolysis.

What is the maximum temperature this alloy wire can withstand?

0Cr21Al4 Alloy Wire can withstand temperatures up to 1,600 °C, making it suitable for demanding high-temperature applications in electrolysis systems.

How does 0Cr21Al4 Alloy Wire improve electrolysis efficiency?

The wire's stable electrical resistance and thermal properties ensure more efficient energy transfer during electrolysis, reducing energy consumption and improving hydrogen production rates.

Is 0Cr21Al4 Alloy Wire customizable for specific electrolysis systems?

Yes, we offer customizable diameters and lengths to suit the unique requirements of your electrolysis system.

How long does 0Cr21Al4 Alloy Wire last in high-temperature electrolysis?

Due to its superior corrosion resistance and thermal stability, 0Cr21Al4 Alloy Wire has a long lifespan, reducing the need for frequent replacements and lowering overall maintenance costs.

Can this wire be used for other industrial applications?

Yes, in addition to electrolysis, 0Cr21Al4 Alloy Wire is used in fuel cells, energy storage systems, and chemical manufacturing processes that require high-temperature durability.

What makes DLX's 0Cr21Al4 Alloy Wire stand out from competitors?

DLX offers a premium-quality alloy wire that is rigorously tested for performance and durability. Our focus on customer satisfaction and tailored solutions ensures optimal system efficiency.

What are the global trends in hydrogen production via electrolysis?

The hydrogen economy is expanding rapidly as industries and governments push for clean energy solutions. Electrolysis is expected to become a major method for large-scale hydrogen production, driving demand for materials like 0Cr21Al4 Alloy Wire.
