Nickel Grade Nichrome Chromel Alloy Wire Ni35cr20 Wire Used For Thermocouple

Nickel Grade Nichrome Chromel Alloy Wire Ni35cr20 Wire Used For Thermocouple

Brand Name: DLX
Model Number: Ni35Cr20
MOQ: 5
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per month
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE,ROHS
Material:
Nickel, Chromium
Nickel(Min):
32%
Resistivity:
1.00+/-0.05
Tensile Strength:
637MPA
Elongtation:
≥20%
Application:
Heating, Resistivity
Condition:
Hard / Soft
Sureface:
Bright, Oxided, Acide
Delivery Time:
7-20 Days
Name:
Resistance Heating Wire
Packaging Details:
Spool package with Carton box, Coil package with polybag
Supply Ability:
500 tons per month
Highlight:

Used Thermocouple Chromel Alloy Wire

,

Thermocouple Chromel Alloy Wire

,

Thermocouple Ni35cr20 Wire

Product Description

Nickel Grade Nichrome Chromel Alloy Wire Ni35cr20 Wire Used For Thermocouple 0




  • Ni35Cr20 Heating Resistance Wire

Ni35Cr20 is an austenitic nickel-chromium alloy suitable for temperature applications up to 1100°C. This alloy is characterized by high resistivity, good oxidation resistance, good ductility after use and excellent weldability.

A thermocouple is a sensor used to measure temperature, based on the thermoelectric effect between two different metals or alloys. Ni35Cr20 resistance wire is commonly used as one of the metals, paired with another metal such as copper or platinum.


  • Temperature Measurement

Ni35Cr20 resistance wire is commonly used as heating elements in electric furnaces. Its high temperature stability and low resistance temperature coefficient enable it to provide stable heating effect in high temperature environments, thus meeting the heating requirements of different materials.

  • Electric Water Heater

The primary role of Ni35Cr20 resistance wire in a thermocouple is as a temperature sensing element. When the junctions of the thermocouple are at different temperatures, a thermoelectric potential is generated, which can be measured to determine the temperature of the environment. The stability and reliability of Ni35Cr20 resistance wire ensure accurate temperature measurement results.

  • Industrial Applications

Ni35Cr20 resistance wire thermocouples are widely used in temperature monitoring and control in industrial settings. They can be applied in various scenarios such as furnace temperature monitoring, furnace temperature control, temperature measurement in chemical processes, and more.

  • Laboratory and Research

In laboratory and research settings, Ni35Cr20 resistance wire thermocouples are also common tools for temperature measurement. They are used in laboratory instruments, scientific research, and various testing and analysis applications.


  • Nickel-chromium alloy performance tables
Performance material Cr10Ni90 Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Composition Ni 90 Rest Rest 55.061.0 34.037.0 30.034.0
Cr 10 20.023.0 28.031.0 15.018.0 18.021.0 18.021.0
Fe -- ≤1.0 ≤1.0 Rest Rest Rest
Maximum temperature 1300 1200 1250 1150 1100 1100
Meltiing point 1400 1400 1380 1390 1390 1390
Density g/cm3 8.7 8.4 8.1 8.2 7.9 7.9
Resistivity -- 1.09±0.05 1.18±0.05 1.12±0.05 1.00±0.05 1.04±0.05
μΩ·m,20
Elongation at rupture ≥20 ≥20 ≥20 ≥20 ≥20 ≥20
Specific heat -- 0.44 0.461 0.494 0.5 0.5
J/g.
Thermal conductivity -- 60.3 45.2 45.2 43.8 43.8
KJ/m.h
Coefficient of lines expansion -- 18 17 17 19 19
a×10-6/
(201000℃)
Micrographic structure -- Austenite Austenite Austenite Austenite Austenite
Magnetic properties -- Nonmagnetic Nonmagnetic Nonmagnetic Weak magnetic Weak magnetic

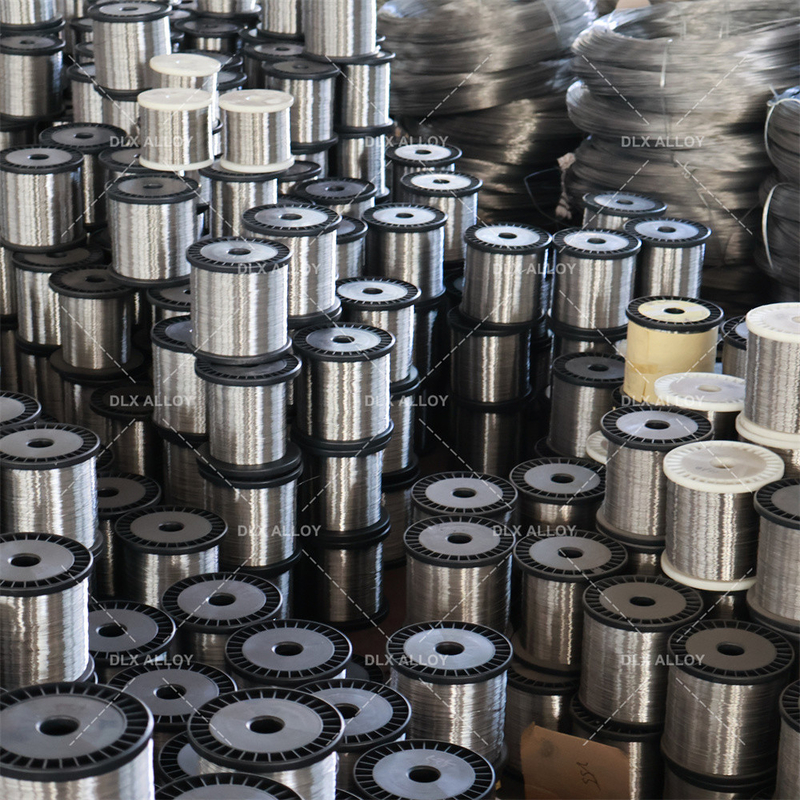

Nickel Grade Nichrome Chromel Alloy Wire Ni35cr20 Wire Used For Thermocouple 1Nickel Grade Nichrome Chromel Alloy Wire Ni35cr20 Wire Used For Thermocouple 2




















































  • The Form we could offer
Size Range

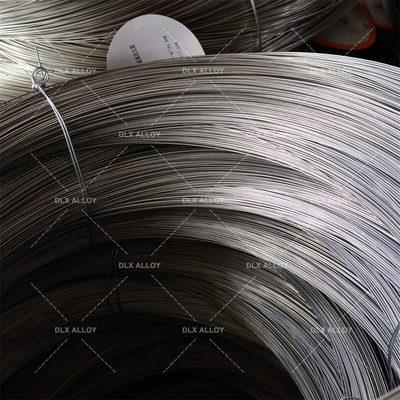

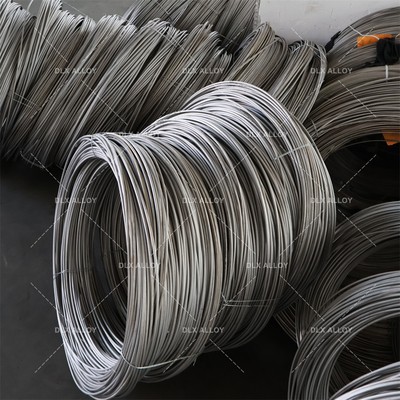

Wire
dia 0.03-7.5mm
Nickel Grade Nichrome Chromel Alloy Wire Ni35cr20 Wire Used For Thermocouple 3
dia 8.0-12.0mm
Nickel Grade Nichrome Chromel Alloy Wire Ni35cr20 Wire Used For Thermocouple 4
Ribbon
(0.05-0.35)*(0.5-6.0)mm
Nickel Grade Nichrome Chromel Alloy Wire Ni35cr20 Wire Used For Thermocouple 5
Strip
(0.50-2.5)*(5-180)mm
Nickel Grade Nichrome Chromel Alloy Wire Ni35cr20 Wire Used For Thermocouple 6
Rod
8-50mm
