| Brand Name: | DLX |
| Model Number: | Ni80Cr20 |
| MOQ: | 5 |
| Payment Terms: | L/C,T/T,Western Union, |
| Supply Ability: | 500 tons per month |
Cr20Ni80 resistance wire is a high-performance heating element material composed of 20% chromium and 80% nickel, offering excellent electrical resistance characteristics and high temperature stability for various industrial applications.
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 |
|---|---|---|---|---|---|---|
| Composition Ni | 90 | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 30.0～34.0 |
| Cr | 10 | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 |
| Fe | -- | ≤1.0 | ≤1.0 | Rest | Rest | Rest |
| Maximum temperature℃ | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 |
| Meltiing point ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 |
| Density g/cm3 | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 |
| Type | Size Range | Image |
|---|---|---|

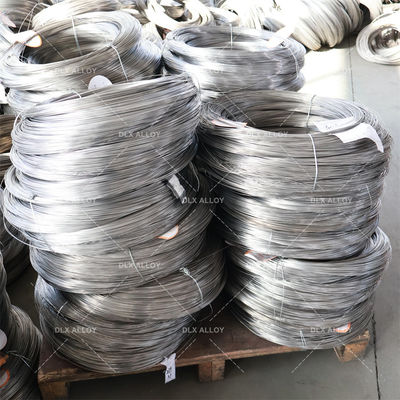

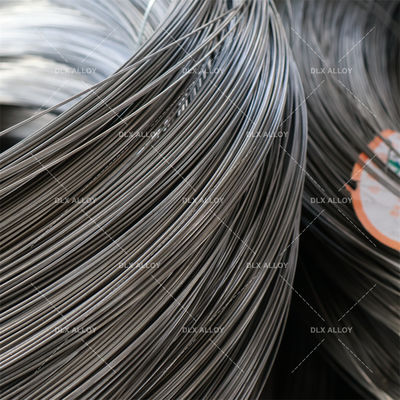

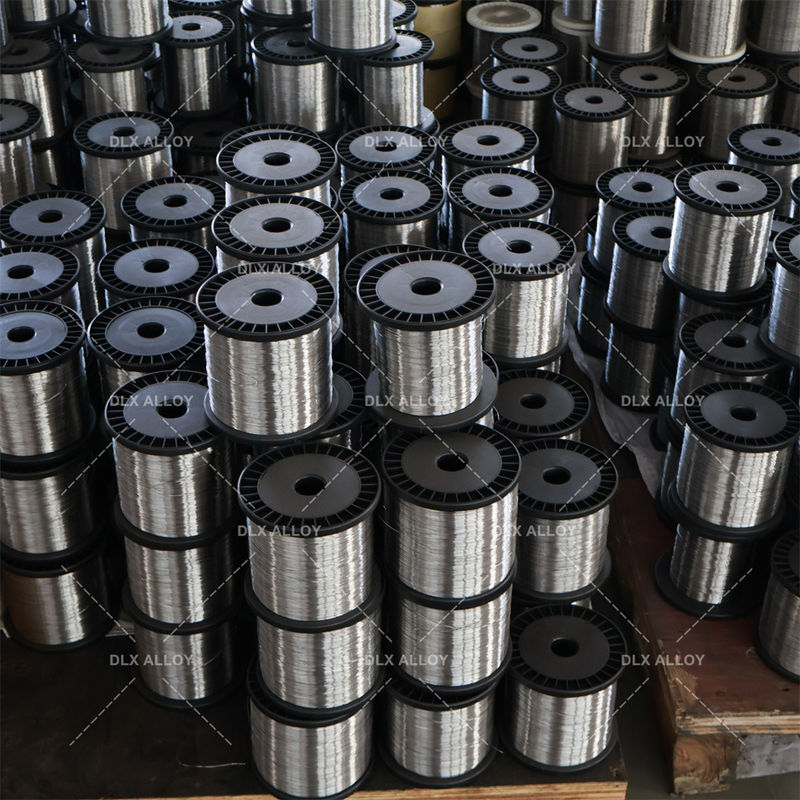

| Wire | dia 0.03-7.5mm | |
| Wire | dia 8.0-12.0mm | |
| Ribbon | (0.05-0.35)*(0.5-6.0)mm | |
| Strip | (0.50-2.5)*(5-180)mm | |
| Rod | 8-50mm | |
