Electric Heating Element Resistance Heaters 0.1mm 0.32mm Cr20ni80 Heating Resistance Wire

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: Ni80Cr20

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: Spool package with Carton box, Coil package with polybag

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

0.32mm Heating Element Resistance Heaters

,

Cr20ni80 Heating Element Resistance Heaters

,

0.1mm Cr20ni80 Heating Resistance Wire

Material:
Nickel, Chromium
Nickel(Min):
76%
Resistivity:
1.09+/-0.05
Tensile Strength:
637MPA
Elongtation:
≥20%
Application:
Heating, Resistivity
Condition:
Hard / Soft
Sureface:
Bright, Oxided, Acide
Delivery Time:
7-20 Days
Name:
Resistance Heating Wire
Material:
Nickel, Chromium
Nickel(Min):
76%
Resistivity:
1.09+/-0.05
Tensile Strength:
637MPA
Elongtation:
≥20%
Application:
Heating, Resistivity
Condition:
Hard / Soft
Sureface:
Bright, Oxided, Acide
Delivery Time:
7-20 Days
Name:
Resistance Heating Wire
Description
Electric Heating Element Resistance Heaters 0.1mm 0.32mm Cr20ni80 Heating Resistance Wire

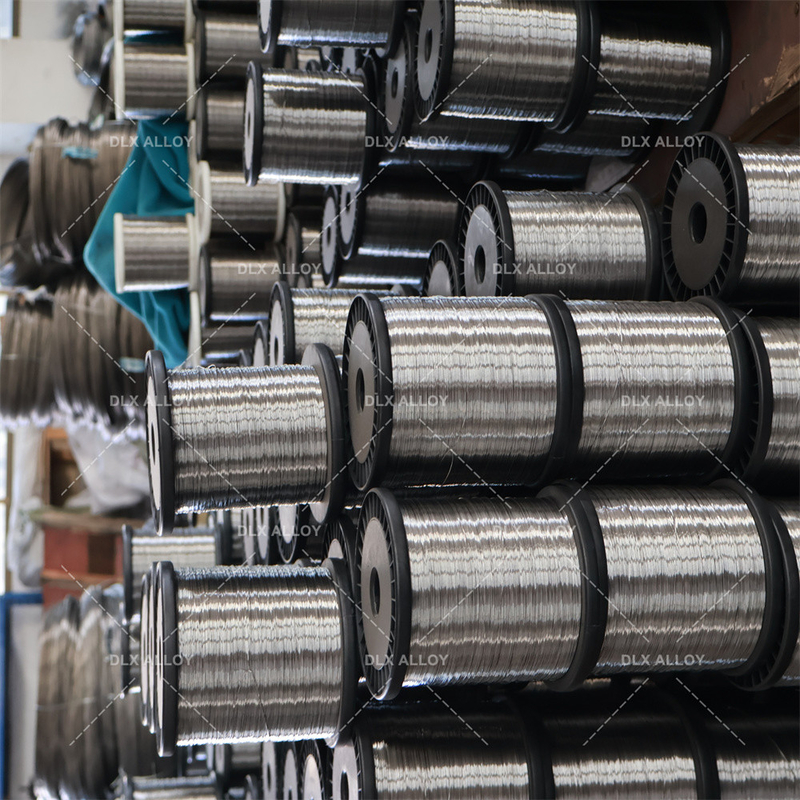

Electric Heating Element Resistance Heaters 0.1mm 0.32mm Cr20ni80 Heating Resistance Wire 0




  • Cr20ni80 Heating Resistance Wire

In resistance heaters, Cr20Ni80 resistance wire is a commonly used heating element material. It is composed of 20% chromium and 80% nickel, with excellent electrical resistance characteristics and high temperature stability, suitable for various heating applications.


  • Material Characteristics

1. Cr20Ni80 resistance wire possesses excellent resistivity and resistance temperature coefficient, capable of rapidly generating high temperatures while maintaining stability.
2. Its high-temperature stability makes it an ideal heating element, suitable for various applications in resistance heaters.

  • Heating Efficiency

1. Resistance heaters utilizing Cr20Ni80 resistance wire can achieve rapid and uniform heating effects.
2. The Cr20Ni80 resistance wire inside the heater quickly converts electrical energy into heat, rapidly increasing the internal temperature of the heater and enhancing heating efficiency.

  • Application Areas

1. Cr20Ni80 resistance wire is widely used in various resistance heaters, including household electric heaters, industrial baking equipment, and chemical processing equipment.
2. Whether it's clothes dryers, ovens, or industrial baking furnaces, Cr20Ni80 resistance wire can be found, providing stable and reliable solutions for various heating needs.




  • Nickel-chromium alloy performance tables
Performance material Cr10Ni90 Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Composition Ni 90 Rest Rest 55.061.0 34.037.0 30.034.0
Cr 10 20.023.0 28.031.0 15.018.0 18.021.0 18.021.0
Fe -- ≤1.0 ≤1.0 Rest Rest Rest
Maximum temperature 1300 1200 1250 1150 1100 1100
Meltiing point 1400 1400 1380 1390 1390 1390
Density g/cm3 8.7 8.4 8.1 8.2 7.9 7.9
Resistivity -- 1.09±0.05 1.18±0.05 1.12±0.05 1.00±0.05 1.04±0.05
μΩ·m,20
Elongation at rupture ≥20 ≥20 ≥20 ≥20 ≥20 ≥20
Specific heat -- 0.44 0.461 0.494 0.5 0.5
J/g.
Thermal conductivity -- 60.3 45.2 45.2 43.8 43.8
KJ/m.h
Coefficient of lines expansion -- 18 17 17 19 19
a×10-6/
(201000℃)
Micrographic structure -- Austenite Austenite Austenite Austenite Austenite
Magnetic properties -- Nonmagnetic Nonmagnetic Nonmagnetic Weak magnetic Weak magnetic

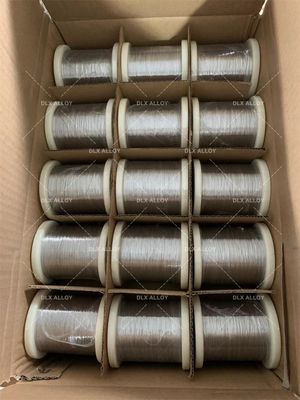

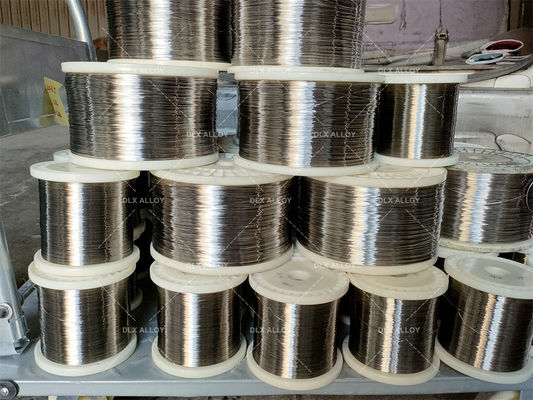

Electric Heating Element Resistance Heaters 0.1mm 0.32mm Cr20ni80 Heating Resistance Wire 1Electric Heating Element Resistance Heaters 0.1mm 0.32mm Cr20ni80 Heating Resistance Wire 2




















































  • The Form we could offer
Size Range

Wire
dia 0.03-7.5mm
Electric Heating Element Resistance Heaters 0.1mm 0.32mm Cr20ni80 Heating Resistance Wire 3
dia 8.0-12.0mm
Electric Heating Element Resistance Heaters 0.1mm 0.32mm Cr20ni80 Heating Resistance Wire 4
Ribbon
(0.05-0.35)*(0.5-6.0)mm
Electric Heating Element Resistance Heaters 0.1mm 0.32mm Cr20ni80 Heating Resistance Wire 5
Strip
(0.50-2.5)*(5-180)mm
Electric Heating Element Resistance Heaters 0.1mm 0.32mm Cr20ni80 Heating Resistance Wire 6
Rod
8-50mm

Electric Heating Element Resistance Heaters 0.1mm 0.32mm Cr20ni80 Heating Resistance Wire 7
