DLX FeCrAl 0Cr25Al5 Electric Heating Wire for Chemical Industry

Product Details

Place of Origin: China

Brand Name: DLX

Certification: CE,ROHS

Model Number: heating electric stove wire

Payment & Shipping Terms

Minimum Order Quantity: 2kg

Packaging Details: Spool package with Carton box, Coil package with polybag for pure nickel wire 0.025mm

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:
Application:
Heating,Industry,furnace Heating Wire,heater
Shape:
Strip,wire,ribbon,plate,Wire Strip Round Ribbon
Material:
FeCrAl Alloy
Chemical Composition:
Fe Cr Al,Ferro Chrome Aluminium,Cr,Ni,Iron-chromium-aluminum
Dimensions:
Specifications,0.05-12mm,0.01mm-10mm,0.5mm,Ocr25al5 Resistance Strip
Surface:
Bright,bright & Smooth,Bright And Smooth,Polished,acid White/oxidized
Corrosion Resistance:
Excellent
Density:
7.2 G/cm³
Elongation:
≥25%
Formability:
Good
Heat Treatment:
Annealing
Machinability:
Good
Magnetic Properties:
Ferromagnetic
Melting Point:
1400-1450°C
Oxidation Resistance:
Excellent
Tensile Strength:
≥400 MPa
Thermal Conductivity:
14-20 W/mK
Thermal Expansion:
8.2-9.2 μm/mK
Weldability:
Good
Yield Strength:
≥200 MPa
Application:
Heating,Industry,furnace Heating Wire,heater
Shape:
Strip,wire,ribbon,plate,Wire Strip Round Ribbon
Material:
FeCrAl Alloy
Chemical Composition:
Fe Cr Al,Ferro Chrome Aluminium,Cr,Ni,Iron-chromium-aluminum
Dimensions:
Specifications,0.05-12mm,0.01mm-10mm,0.5mm,Ocr25al5 Resistance Strip
Surface:
Bright,bright & Smooth,Bright And Smooth,Polished,acid White/oxidized
Corrosion Resistance:
Excellent
Density:
7.2 G/cm³
Elongation:
≥25%
Formability:
Good
Heat Treatment:
Annealing
Machinability:
Good
Magnetic Properties:
Ferromagnetic
Melting Point:
1400-1450°C
Oxidation Resistance:
Excellent
Tensile Strength:
≥400 MPa
Thermal Conductivity:
14-20 W/mK
Thermal Expansion:
8.2-9.2 μm/mK
Weldability:
Good
Yield Strength:
≥200 MPa
Description
DLX FeCrAl 0Cr25Al5 Electric Heating Wire for Chemical Industry

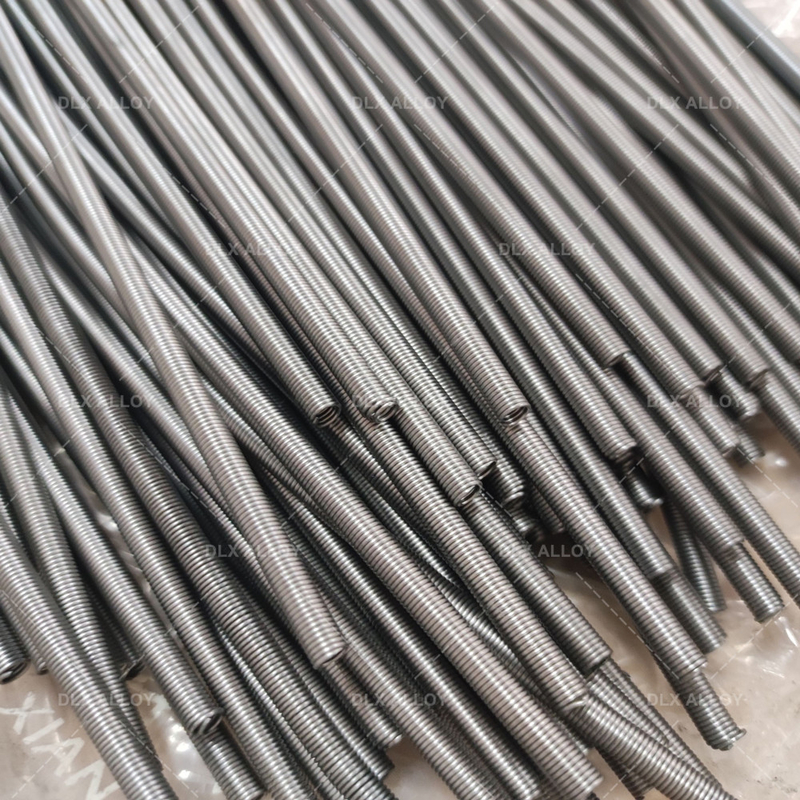

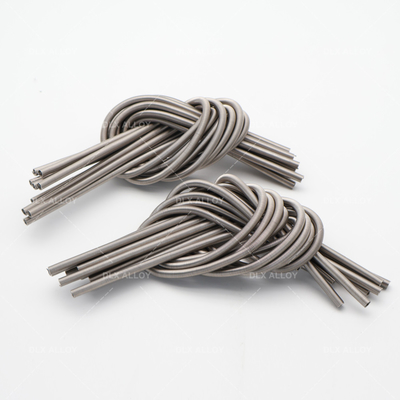

DLX FeCrAl 0Cr25Al5 Electric Heating Wire for Chemical Industry 0DLX FeCrAl 0Cr25Al5 Electric Heating Wire for Chemical Industry 1

The wire used in an electric heating electric stove is typically made of a heat-resistant material, such as nickel-chromium alloy or iron-chromium-aluminum alloy. These alloys have high electrical resistance and can withstand the high temperatures generated by the stove. The wire is coiled or wound into a heating element, which is then connected to a power source to generate heat.
Product Description
DLX FeCrAl 0Cr25Al5 Electric Heating Wire for Chemical Industry
1. Introduction to products
FeCrAl alloy is a ferritic iron-chromium-aluminium alloy with high resistivity and has superior oxidation resistance for use at temperatures up to 1450 centigrade degree., as compared to other commercial Fe and Ni base alloy.

2. Application
Our Products are widely applied to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.
Alloy Nomenclature Performance
1Cr13AL4
0Cr25Al5
0Cr21AL6
0Cr23Al5
0Cr21Al4
0Cr21Al6Nb
0Cr27Al7Mo2


Main Chemical composition
Cr
12.0-15.0
23.0-26.0
19.0-22.0
20.5-23.5
18.0-21.0
21.0-23.0
26.5-27.8
Al
4.0-6.0
4.5-6.5
5.0-7.0
4.2-5.3
3.0-4.2
5.0-7.0
6.0-7.0
Re
opportune
opportune
opportune
opportune
opportune
opportune
opportune
Fe
Rest
Rest
Rest
Rest
Rest
Rest
Rest






Nb0.5
Mo1.8-2.2
Max. continuous service temp. of element(°C)
950
1250
1250
1250
1100
1350
1400
Resistivity at 20ºC(μΩ·m)
1.25
1.42
1.42
1.35
1.23
1.45
1.53
Density(g/cm3)
7.4
7.1
7.16
7.25
7.35
7.1
7.1
Thermal conductivity(KJ/m·h·ºC)
52.7
46.1
63.2
60.2
46.9
46.1
--
Coefficient of lines expansion(α×10-6/ºC)
15.4
16
14.7
15
13.5
16
16
Melting point approx.( ºC)
1450
1500
1500
1500
1500
1510
1520
Tensile strength(N/mm2)
580-680
630-780
630-780
630-780
600-700
650-800
680-830
Elongation at rupture(%)
>16
>12
>12
>12
>12
>12
>10
Variation of area(%)
65-75
60-75
65-75
65-75
65-75
65-75
65-75
Repeat Bending frequency(F/R)
>5
>5
>5
>5
>5
>5
>5
Hardness(H.B.)
200-260
200-260
200-260
200-260
200-260
200-260
200-260
continuous service time(Hours/ ºC)
--
≥80/1300
≥80/1300
≥80/1300
≥80/1250
≥50/1350
≥50/1350
Micrographic structure
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Magnetic properties
Magnetic
Magnetic
Magnetic
Magnetic
Magnetic
Magnetic
Magnetic

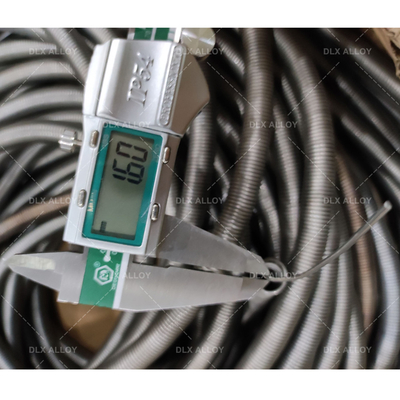

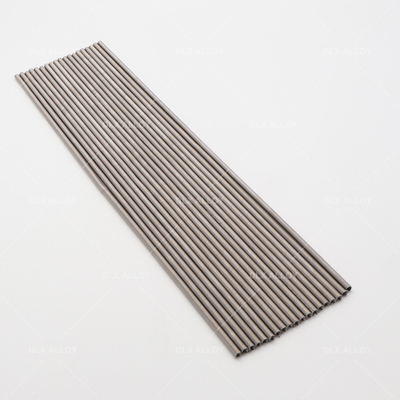

DLX FeCrAl 0Cr25Al5 Electric Heating Wire for Chemical Industry 2DLX FeCrAl 0Cr25Al5 Electric Heating Wire for Chemical Industry 3DLX FeCrAl 0Cr25Al5 Electric Heating Wire for Chemical Industry 4
