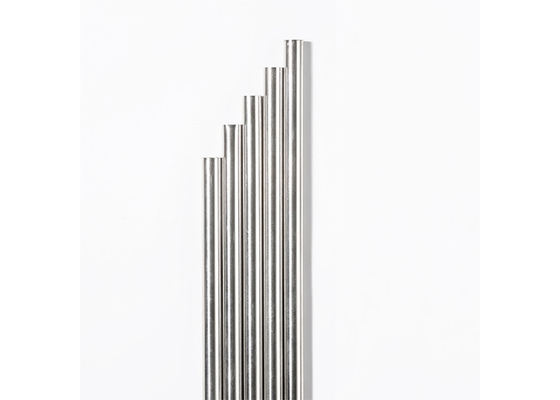

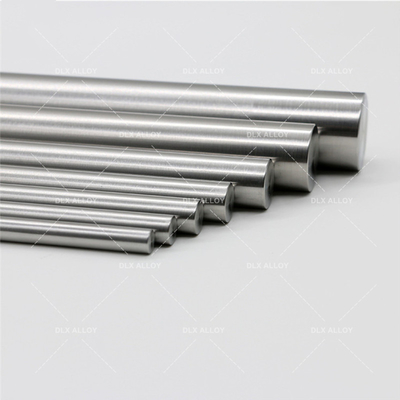

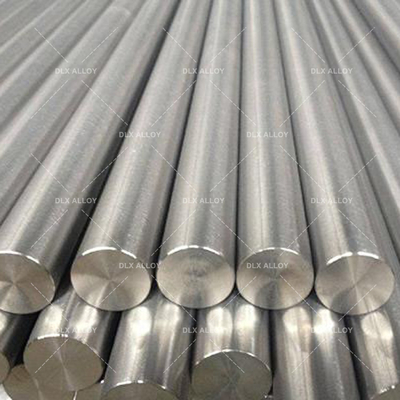

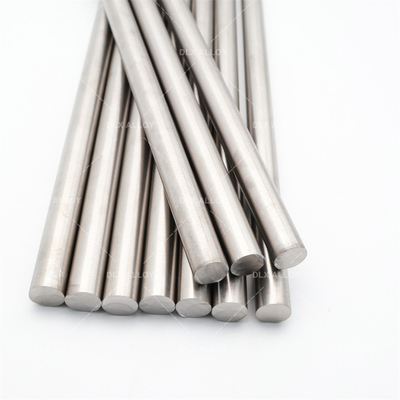

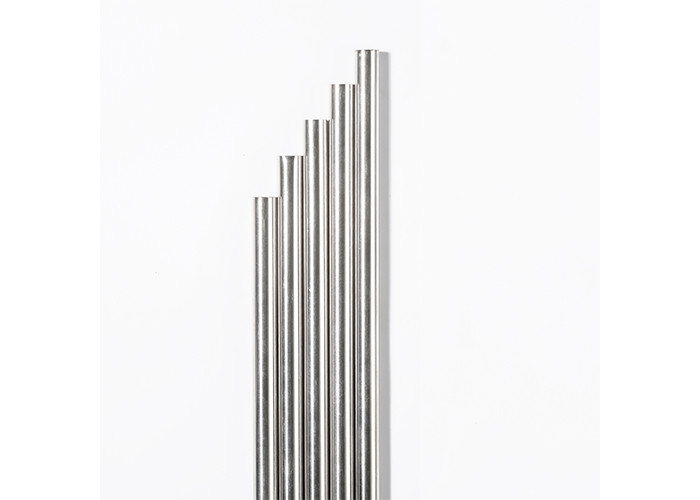

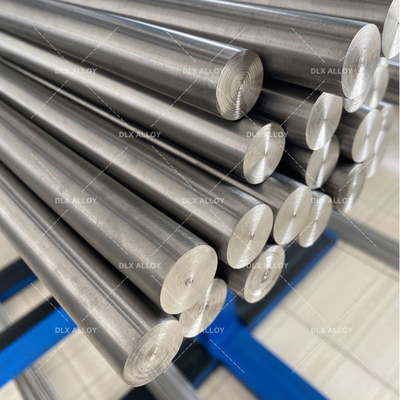

Hastelloy B2 Nickel Molybdenum Super Alloy Rod
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Ni Cr Mo | Elongation | 30 % |
|---|---|---|---|
| Brinell Hardness HB | ≤220 | Density | 8.89 G/cm3 |
| Tensile Strength Rm N/mm² | 760MPA | Yieldstrength R P0. 2 N/mm² | 345MPA |
| Electrical Resistivity（24℃）） | 1.30 Microhm-m | Thermal Conductivity（32℃） | 9.4 W/m-K |
| Model Number | Hastelloy B3 | ||
| Highlight | Nickel Molybdenum Super Alloy Rod,Hastelloy B2 Super Alloy Rod,Hastelloy B2 Nickel Molybdenum |
||
Product Description
Hastelloy B B2 B3 UNS N10001 N10665 N10675 W.Nr. 2.4617 2.4600 round bar rod welding rods iron rod steel bar
- Nickel Based corrosion resistance Alloy
Hastelloy B2 is a solid solution strengthened, nickel-molybdenum alloy, with significant resistance to reducing environments like hydrogen chloride gas, and sulfuric, acetic and phosphoric acids. Molybdenum is the primary alloying element which provides significant corrosion resistance to reducing environments. This nickel steel alloy can be used in the as-welded condition because it resists the formation of grain-boundary carbide precipitates in the weld heat-affected zone.
This nickel alloy provides excellent resistance to hydrochloric acid at all concentrations and temperatures. In additions, Hastelloy B2 has excellent resistance to pitting, stress corrosion cracking and to knife-line and heat-affected zone attack. Alloy B2 provides resistance to pure sulfuric acid and a number of non-oxidizing acids.
Features: Hastelloy B-2 has outstanding resistance to hydrochloric acid at all concentrations and temperatures. It also has significant resistance to reducing environments like sulfuric, phosphoric, acetic acids and other nonoxidizing media. Hastelloy B-2 has excellent resistance to pitting corrosion, stress corrosion cracking, and knife line and weld heat-affected zone attack. Hastelloy B-2 has poor resistance to oxidizing environments, therefore, it should not be used where ferric or cupric salts are present as these salts may cause rapid corrosion failure. Applications: Equipment handling reducing chemical environments; and chemical process industry involving hydrochloric, sulfuric, phosphoric and acetic acid
-
Chemical Properties of Hastelloy B-3 Tubing
| Hastelloy Alloy | Ni | Cr | Co | Mo | FE | W | Si | C | V | P | S |
| B-3 | ≥65 | 1Max | 3Max | ≤28.5 | 2Max | ≤3 | 0.1 Max | 0.02 Max | - | 0.04 | 0.03 |
- Application
Some typical applications are:
- Strong oxidizers (such as ferric and cupric chlorides)
- Hot contaminated media (organic and inorganic)
- Chlorine
- Formic and acetic acids
- Acetic anhydride
- Seawater and brine solutions
- Type we could offer
| ASTM | Alloy | Type | UNS | Misc./Shape | |
| ASTM B574 Bar |
Hastelloy B-3 | Nickel | N10675 | Bar |  |
| ASTM B575 Plate |
Hastelloy B-3 | Nickel | N10675 | Plate | |
| ASTM B575 Strip |
Hastelloy B-3 | Nickel | N10675 | Strip | |
| ASTM B575 Sheet |
Hastelloy B-3 | Nickel | N10675 | Sheet | |
| ASTM B619 Welded Pipe |
Hastelloy B-3 | Nickel | N10675 | Welded Pipe | |
| ASTM B622 Seamless Tubing |
Hastelloy B-3 | Nickel | N10675 | Seamless Tubing | |
| ASTM B366 Fittings |
Hastelloy B-3 | Nickel | N10675 | Fittings | |
| ASTM B574 Wire |
Hastelloy B-3 | Nickel | N10675 | Wire |
