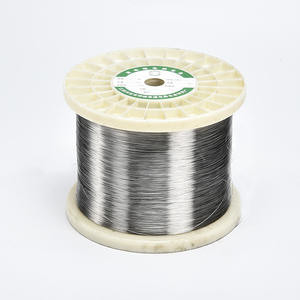

Heating Element Flat Nikrothal 40 Wire 0.1x3mm
Product Details:
| Place of Origin: | China |
| Brand Name: | DLX |
| Model Number: | Ni35Cr20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Packaging Details: | Spool package with Carton box, Coil package with polybag |
| Delivery Time: | 5-21 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 tons per month |
|
Detail Information |
|||
| Material: | Nickel, Chromium | Nickel(Min): | 32% |
|---|---|---|---|
| Resistivity: | 1.00+/-0.05 | Tensile Strength: | 637MPA |
| Elongtation: | ≥20% | Application: | Heating, Resistivity |
| Condition: | Hard / Soft | Sureface: | Bright, Oxided, Acide |
| Delivery Time: | 7-20 Days | Name: | Ni35Cr20 |
| High Light: | Heating Element Nikrothal 40 Wire,Flat Nikrothal 40 Wire,0.1x3mm Nikrothal Wire |
||
Product Description
Heating Element Nikrothal 40 Flat Wire 0.1*3mm For Sale
Heating Element 0.1*3mm Nikrothal 40 Flat Wire For Sale
- NiCr Series
Nichrome 35/20 Resistance Heating Wire is nickel-chromium-iron resistance alloy with heat resisting strength at high temperatures. This alloy is used in numerous domestic appliances and industrial resistors. Nichrome 60/15 Wire has relatively high resistivity and very good resistance to oxidation at high temperatures.
Common Name: Ni35Cr20, Chromel D, Nikrothal 40, N4, HAI-NiCr 40, Tophet D, Resistohm 40, Cronifer3,Chromex, 35-20Ni-Cr, AlloyD, NiCr-D, Alloy600, Nikrothal4,MWS-610, Stablohm 610. OhmAlloy104A
Ni35Cr20 Nickel-Chromium Nickel alloy resistance heating wire.
- Nickel-chromium alloy performance tables
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Composition | Ni | 90 | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 30.0～34.0 |
| Cr | 10 | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | ||
| Maximum temperature℃ | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Meltiing point ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Density g/cm3 | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Resistivity | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | ||
| μΩ·m,20℃ | |||||||
| Elongation at rupture | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Specific heat | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | ||
| J/g.℃ | |||||||
| Thermal conductivity | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | ||
| KJ/m.h℃ | |||||||
| Coefficient of lines expansion | 18 | 17 | 17 | 19 | 19 | ||
| a×10-6/ | |||||||
| (20～1000℃) | |||||||
| Micrographic structure | Austenite | Austenite | Austenite | Austenite | Austenite | ||
| Magnetic properties | Nonmagnetic | Nonmagnetic | Nonmagnetic | Weak magnetic | Weak magnetic | ||
Typical applications: hot plates, heavy-duty rheostats, storage heaters, convection heaters, fan heaters, heating cables, electric blankets and pads, car seats, resistors, etc.
- The Form we could offer
| Size Range | Wire | Ribbon | Strip | Rod | ||||
| dia 0.03-7.5mm | dia 8.0-12.0mm | (0.05-0.35)*(0.5-6.0)mm | (0.50-2.5)*(5-180)mm | 8-50mm |
||||
