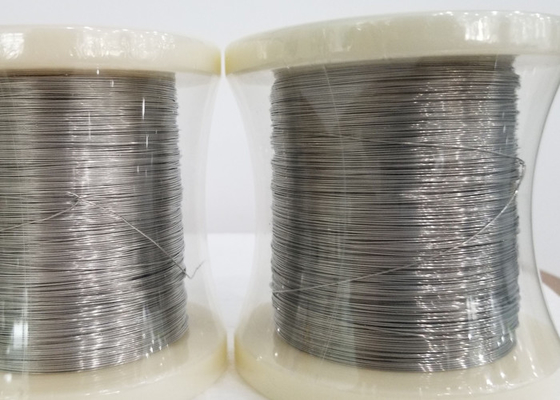

Platinum Rhodium Thermocouple Bare Wire S Type 0.5mm

Name: Platinum Rhodium Thermocouple Bare Wire S Type 0.5mm
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: S type Thermocouple Wire
Price: 149.30 USD
Availability: InStock

Brand Name:	DLX
Model Number:	S type Thermocouple Wire
MOQ:	1
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	300 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Thermocouple Bare Wire

Color:

Bright

Certificate:

ISO9001

Temperature Range:

-58 To 2700F (-50 To 1480C)

EMF Tolerance:

+/- 1.5C Or +/- .25%

Grade:

IEC854-1/3

Positive:

Platinum Rhodium

Negative:

Platinum

Special Limits Of Error:

+/- 0.6C Or 0.1%

Packaging Details:

Spool package with Carton box, Coil package with polybag for S type Thermocouple Wire

Supply Ability:

300 tons per month

Highlight:

S Type Thermocouple Bare Wire

0.5mm Platinum Thermocouple Wire

Platinum Thermocouple Bare Wire

Product Description

Platinum Rhodium Thermocouple Bare Wire S Type 0.5mm 0

0.5mm S type Platinum Rhodium Thermocouple Bare Wire

Thermocouple Wire

Factory directly supply Type K thermocouple bare wire

We offer 0.3mm/0.4mm/0.5mm B/R/S type Platinum Rhodium Thermocouple Bare Wire that can be availed in different sizes as per the requirements of the clients. We offer Bare Thermocouple Wires that can be availed in different diameter and length as per the requirements of the clients. They are always supplied in pair and calibrated. The Platinum Rhodium Thermocouple Wires that we deal in are used in varied applications related to the measurement of high temperature.

1)Type B (Platinum / Rhodium)

Suited for high temperature measurements up to 1800 °C. Unusually type B thermocouples (due to the shape of their temperature /

voltage curve) give the same output at 0 °C and 42 °C. This makes them useless below 50 °C.

2)Type R (Platinum / Rhodium)

Suited for high temperature measurements up to 1600 °C. Low sensitivity (10 µV/ °C ) and high cost makes them unsuitable for

general purpose use.

3)Type S (Platinum / Rhodium)

Suited for high temperature measurements up to 1600 °C. Low sensitivity (10 µV/ °C ) and cost makes them unsuitable for general

purpose use. Due to its high stability type S is used as the standard of calibration for the melting point of gold (1064.43°C).

Thermocouple Wire

Code	Wires component of the thermocouple
	+Positive leg	-Negative leg
N	Ni-cr-si (NP)	Ni-si-magnesium (NN)
K	Ni-Cr (KP)	Ni-Al(Si) (KN)
E	Ni-Cr (EP)	Cu-Ni<constantan> (EN)
J	Iron (JP)	Cu-Ni<constantan> (JN)
T	Copper (TP)	Cu-Ni<constantan> (TN)
B	Platinum Rhodium-30%	Platinum Rhodium-6%
R	Platinum Rhodium-13%	Platinum
S	Platinum Rhodium-10%	Platinum

Standards

ASTM	ANSI	IEC	DIN	BS	NF	JIS	GOST
(American Society for Testing and Materials) E 230	(American National Standard Institute) MC 96.1	(European Standard by the International Electrotechnical Commission 584)-1/2/3	(Deutsche Industrie Normen) EN 60584 -1/2	(British Standards) 4937.1041, EN 60584 - 1/2	(Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324	(Japanese Industrial Standards) C 1602 - C 1610	(Unification of the Russian Specifications) 3044

Size range

Wire: 0.1 to 8.0 mm.

Working temperature:

Diameter/mm	Type	Long time Working	Short period Working
Diameter/mm	Type	temperature/°C	temperature/°C
0.5	S	1300	1600
0.5	R	1300	1600
0.5	B	1600	1700

Chemical Composition

Conductor Name	Polarity	Code	Pt%	Rh%
Pt90Rh	Positive	SP	90	10
Pt	Negative	SN,RN	100	--
Pt87Rh	Positive	RP	87	13
Pt70Rh	Positive	BP	70	30
Pt94Rh	Negative	BN	94	6
