Product Details
Place of Origin: China Jiangsu
Brand Name: DLX
Certification: CE,ROHS
Model Number: Monel 400 tube
Payment & Shipping Terms
Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag for Monel 400 tube
Delivery Time: 5-20 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per month
Material: |
Nickel Copper |
Nickel(Min): |
63% |
Curie Temperature: |
21-49℃ |
Density: |
8.8g/cm3 |
Application: |
Anti-corrosion |
Condition: |
Hard / Soft |
Sureface: |
Bright,Oxided |
Delivery Time: |
7-50 Days |
Melting Point: |
.1300-1350℃ |
Name: |
Monel 400 Tube |
Material: |
Nickel Copper |
Nickel(Min): |
63% |
Curie Temperature: |
21-49℃ |
Density: |
8.8g/cm3 |
Application: |
Anti-corrosion |
Condition: |
Hard / Soft |
Sureface: |
Bright,Oxided |
Delivery Time: |
7-50 Days |
Melting Point: |
.1300-1350℃ |
Name: |
Monel 400 Tube |

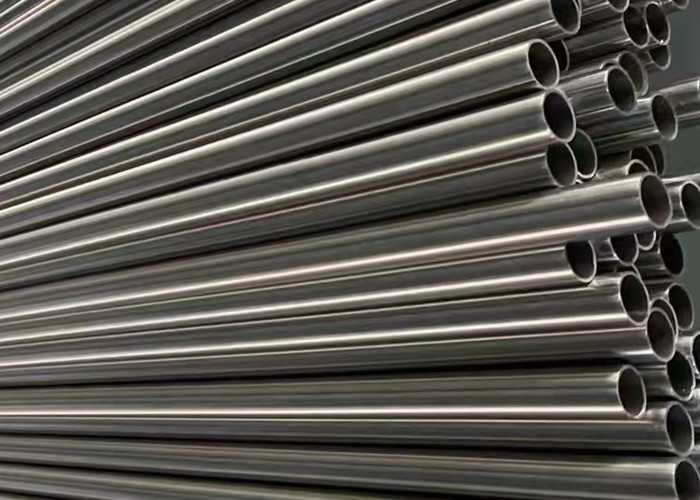

Monel 400 Seamless Pipe/Tube Manufacturer ASTM B163 B165 /UNSN04400/Monel 400 Tube
Nickel Alloy monel 400 tube has excellent resistance to corrosion by many reducing media such as sulfuric and hydrochloric acids. It is generally more resistant to corrosion by oxidizing media than higher copper alloys. Nickel Alloy 400 resists pitting and stress corrosion cracking in most fresh and industrial waters. It has good resistance in flowing seawater, but under stagnant conditions, pitting and crevice corrosion are induced. Nickel Alloy 400 is probably the most resistant to hydrofluoric-acid in all concentrations up to the boiling point, of all engineering alloys. Nickel Alloy 400 is notable for its toughness, it does not show embrittlement tendency at cryogenic temperatures. It works hardenable.
| C | Mn | S | Si | Ni | Cu | Fe |
|---|---|---|---|---|---|---|
| .30 max | 2.00 max | .024 max | .50 max | 63.0 min | 28.0-34.0 | 2.50 max |
Alloy 400 has been widely used in a variety of industries, and has been particularly useful in the marine industry and chemical processing industry. Typical applications include pumps and valves, propeller shafts, marine fixtures and fasteners, electronic components, springs, chemical processing equipment, fresh and salt water tanks, process vessels and piping, boiler feedwater heaters and other heat exchangers.
| AMS Number | Alloy | Type | UNS | Cross Ref. Spec | Misc./Shape | |
|---|---|---|---|---|---|---|
| AMS 4544 Plate | Monel 400 | Nickel Copper | N04400 | QQ-N-281 | Plate | |
| AMS 4544 Sheet | Monel 400 | Nickel Copper | N04400 | QQ-N-281 | Sheet | |
| AMS 4544 Strip | Monel 400 | Nickel Copper | N04400 | QQ-N-281 | Strip | |
| AMS 4574 | Monel 400 | Nickel Copper | N04400 | - | Tubing | |
| AMS 4675 Bar | Monel 400 | Nickel Copper | N04400 | ASTM B 164 | Bar | |
| AMS 4730 | Monel 400 | Nickel Copper | N04400 | QQ-N-281 | Wire | |
| AMS 4731 Ribbon | Monel 400 | Nickel Copper | N04400 | - | Ribbon | |
| AMS 4731 Wire | Monel 400 | Nickel Copper | N04400 | - | Wire | |
