Anti Corrosion Nickel Based Alloy Monel 400 Wire 0.25mm

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: Monel 400

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: Spool package with Carton box, Coil package with polybag for Monel 400 wire

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Nickel Based Alloy Monel 400 Wire

,

Anti Corrosion Monel 400 Wire

,

38 HRC Monel 400 Alloy

Material:
Nickel Copper
Nickel(Min):
63%
Curie Temperature:
21-49℃
Density:
8.05g/cm3
Application:
Anti-corrosion
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Melting Point:
1288-1343℃
Name:
Monel 400 Wire
Material:
Nickel Copper
Nickel(Min):
63%
Curie Temperature:
21-49℃
Density:
8.05g/cm3
Application:
Anti-corrosion
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Melting Point:
1288-1343℃
Name:
Monel 400 Wire
Description
Anti Corrosion Nickel Based Alloy Monel 400 Wire 0.25mm

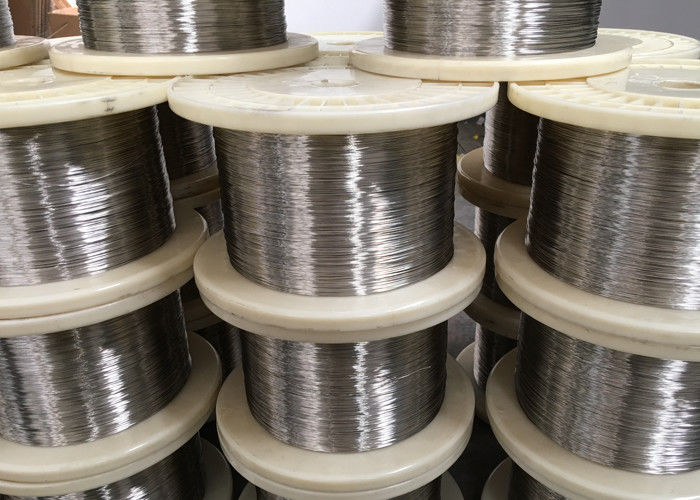

Anti Corrosion Nickel Based Alloy Monel 400 Wire 0.25mm 0

Anti-corrosion nickel based alloy Monel 400 wire 0.25mm
Anti Corrosion Nickel Based Alloy Monel 400 Wire 0.25mm 1


  • Monel Series

Monel is a group of nickel alloys, primarily composed of nickel and copper, with small amounts of iron, manganese, carbon, and silicon. Monel have a good ability on anti-corrssion, especially can be used in seawater. Also the Monel is easy to be fabricated, it can be hot- and cold-working, machining as well as good welding ability.
DLX
can make the monel 400 wire from dia 0.05mm to 8mm. The rod diameter from 8mm to 200mm.




  • Chemical Properties of Monel 400

Ni Cu Al Ti C Mn Fe S Si
63.0-70.0 27-33 2.30-3.15 .35-.85 0.25 max 1.5 max 2.0 max 0.01 max 0.50 max


  • Application

. Sour-gas service applications
. Oil and gas production safety lifts and valves
. Oil-well tools and instruments like drill collars
. Oil well industry
. Doctor blades and scrapers
. Chains, cables, springs, valve trim, fasteners for marine service
. Pump shafts and impellers in marine service




  • ,Mechanical Properties

    Typical Room Temperature Tensile Properties of Annealed Material

    Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation % Hardness
    Rod & Bar Hot-Finished/Aged 140-190 100-150 30-20 27-38 HRC
    Rod & Bar Hot Finished/Annealed 90-110 40-60 45-25 75-90 HRB
    Rod & Bar Hot Finished/Annealed/Aged 130-165 85-120 35-20 24-35 HRC
    Rod & Bar Cold-Drawn/Aged 135-185 95-160 30-15 25-41 HRC
    Rod & Bar Cold-Drawn/Annealed/Aged 130-190 85-120 30-20 24-35 HRC
    Plate ot-Finished/Aged 140-180 100-135 30-20 27-37 HRC
    Sheet Cold-Rolled/Annealed 90-105 40-65 45-25 85 HRB Max





    Anti Corrosion Nickel Based Alloy Monel 400 Wire 0.25mm 2Anti Corrosion Nickel Based Alloy Monel 400 Wire 0.25mm 3
