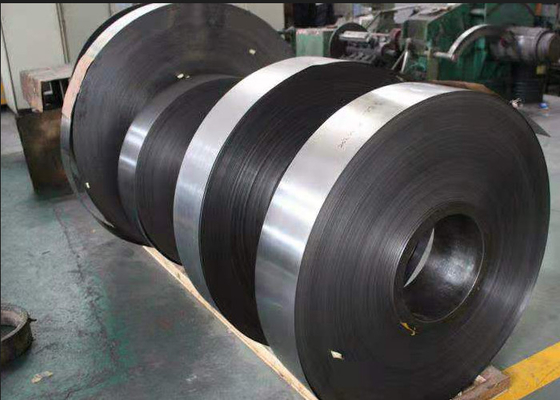

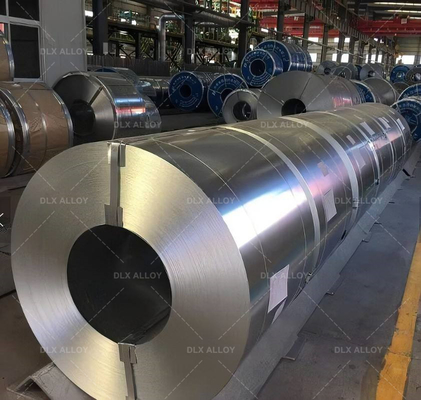

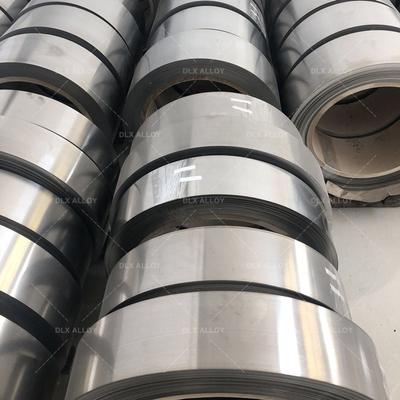

- Fast delivery soft magnetic 1j85 permalloy 80 tape / strip / foil
Precision alloys include soft magnetic alloys and expansion alloys which have special physical and mechanical properties, and are extensively applied in the key elements and devices of precision motor, electric appliance, instruments and meters,telecommunications equipment.
Physical Properties (Annealed Condition)
Specific Gravity - 8.7g/cm
Curie Temperature - 830°F (410°C)
Electrical Resistivity, 349 ohm circ mil/foot 0.55 ohm mm²m
Density lb/cu.in. - 316
Thermal Conductivity - 134 btu-inch/ft hour °F 0.32 W/cm °C
Coefficient of Thermal Expansion, in./in. °F x 10 (-******)
7.2in/in °F x 10-6 between 70 and 400F
13cm/cm/ °C 10-6 between 30 and 204 °C Precision alloy Precision alloy Precision alloy Precision alloy Precision alloy Precision alloy Precision alloy Precision alloy
Fe-Ni Soft Magnetic Alloy (GBn198-1988)
precision alloy precision alloy precision alloy
|The Chemical Composition of Supermalloy
|The Physical Property of Supermalloy
||Curie Point ℃
||High Saturated magneto-striction coefficient λθ/10-6
|Application of Supermalloy
Precision Supermalloy alloy is used in manufacturing components for radio engineering,telephony and telemechanics instruments.
Permalloy is used in transformer laminations and magnetic recording head sensors,in its initial application,permalloy was wrapped around the insulated copper conductors of telecommunication cables,reducing signal distortion through improved inductive compensation of cable capacitive reactance.
High performance magnetic cores such as toroids and stacked laminations
Magnetic shielding to protect sensitive components from extraneous magnetic fields
Any delicate application requiring high permeability magnetic material, with a low coercive field and low losses, in the range from low frequency up to 1MHz
