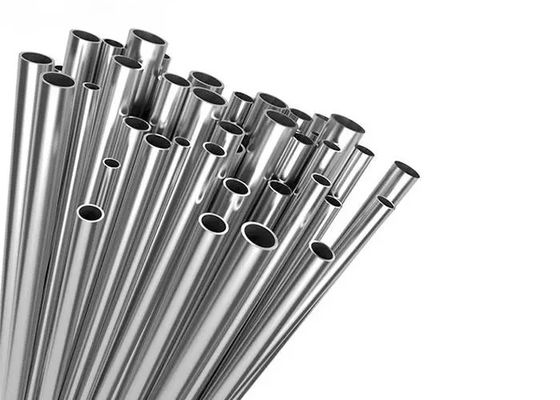

Ni80Mo5 1j85 Supermalloy Mumetal Tube Precision Alloy

Ni80Mo5 1j85 Supermalloy Mumetal Tube Precision Alloy

Product Details:

Place of Origin: China
Brand Name: DLX
Model Number: 1j85

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: 25-$50
Packaging Details: Standard Export Wooden Cases Ex.Gross Weight Under 20kg=Carton Box/Gross Weight over 20 kg=Plywood Box Or as per Request
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per month
Get Best Price Contact Now

Detail Information

Material:: NiFe Certificate: ISO9001
Shape: Pipes Resistivity:: 0.56
Density:: 8.75g/cm3 Size: Customized
Standard:: GB/ASTM/AISI/ASME Condition:: Bright, Annealed, Soft
Application:: Industrial Magnet Curie Point:: 400℃
HCR:: 30 Feature:: High Initial Permeability
High Light:

Ni80Mo5 Precision Alloy

,

1j85 Nickel Alloy

,

Mumetal Tube Precision Alloy

Product Description

Ni80Mo5 1j85 Supermalloy Mumetal Tube Precision Alloy 0


Ni80Mo5 1j85 Supermalloy Mumetal Tube Precision Alloy 1


  • Soft magnetic alloy1j85 mumetal tube/pipes supermalloy



Precision alloy Mumetal is 80% nickel with additions of iron and molybdenum as main elements in turn this alloy offers an extremely high initial permeability. It is only moderately resistant to moisture and atmospheric corrosion, Precision alloy used mainly in in transformer cores but is well known for its magnetic properties which are used for shielding electrical components from magnetic fields. "HYMU 80" has a minimum DC permeability of 80,000 at a flux density of 40 gauss when heat treated by the recommended procedure and test in accordance with ASTM 596









Physical Properties (Annealed Condition)



Specific Gravity - 8.7g/cm
Curie Temperature - 830°F (410°C)
Electrical Resistivity, 349 ohm circ mil/foot 0.55 ohm mm²m
Density lb/cu.in. - 316
Thermal Conductivity - 134 btu-inch/ft hour °F 0.32 W/cm °C
Coefficient of Thermal Expansion, in./in. °F x 10 (-******)
7.2in/in °F x 10-6 between 70 and 400F
13cm/cm/ °C 10-6 between 30 and 204 °C  Precision alloy  Precision alloy  Precision alloy  Precision alloy  Precision alloy  Precision alloy  Precision alloy  Precision alloy





Fe-Ni Soft Magnetic Alloy (GBn198-1988)

Supermalloy

Chinese 1J85

Ni80Mo5

precision alloy precision alloy precision alloy

Ni80Mo5 1j85 Supermalloy Mumetal Tube Precision Alloy 2






The Chemical Composition of Supermalloy



Grade C≤ P≤ S≤ Cu≤ Si Mn Mo Ni Fe
1J85 0.03 0.02 0.02 0.20 0.15~0.3 0.30~0.60 4.80~5.20 79.0~81.0 Banlance



The Physical Property of Supermalloy



Grade Resistivity(μΩ.m) Density(g/cm3) Curie Point ℃ High Saturated magneto-striction coefficient λθ/10-6
1J85 0.56 8.75 400 0.5



Application of Supermalloy



Precision Supermalloy alloy is used in manufacturing components for radio engineering,telephony and telemechanics instruments.







PRODUCT APPLICATION



Permalloy



Permalloy is used in transformer laminations and magnetic recording head sensors,in its initial application,permalloy was wrapped around the insulated copper conductors of telecommunication cables,reducing signal distortion through improved inductive compensation of cable capacitive reactance.

mumetal

High performance magnetic cores such as toroids and stacked laminations

Magnetic shielding to protect sensitive components from extraneous magnetic fields

Magnetic sensors

Current sensors

Any delicate application requiring high permeability magnetic material, with a low coercive field and low losses, in the range from low frequency up to 1MHz



Ni80Mo5 1j85 Supermalloy Mumetal Tube Precision Alloy 3Ni80Mo5 1j85 Supermalloy Mumetal Tube Precision Alloy 4Ni80Mo5 1j85 Supermalloy Mumetal Tube Precision Alloy 5Ni80Mo5 1j85 Supermalloy Mumetal Tube Precision Alloy 6
