Thermocouple Bare Wire
Created with Pixso.

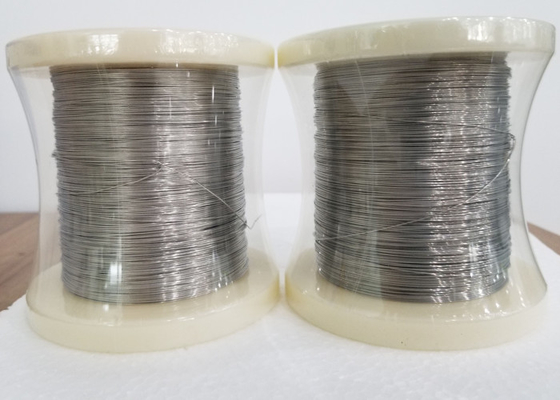

Nickel Chromel Alumel KP KN K Type Thermocouple Wire

Nickel Chromel Alumel KP KN K Type Thermocouple Wire

Brand Name: DLX
Model Number: K type thermocouple wire
MOQ: 5
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
K Type Thermocouple Bare Wire
Color:
Bright
Certificate:
ISO9001
Temperature Range:
–454 To 2,300F (–270 To 1260C)
Grade:
IEC854-1/3
Positive:
Ni-Cr
Negative:
Ni-Al(Si)
Special Limits Of Error:
± 1.1C Or 0.4%
Standard:
± 2.2C% Or ±.75%
Maximum Continuous Temperature:
1,100C.
Packaging Details:
Spool package with Carton box, Coil package with polybag for K type thermocouple wire
Supply Ability:
300 tons per month
Highlight:

K Type Thermocouple Wire

,

Nickel Chromel Alumel Thermocouple Wire

,

KP Type Thermocouple Bare Wire

Product Description

Nickel Chromel Alumel KP KN K Type Thermocouple Wire 0

Nickel chromel alumel KP KN K type thermocouple wire

  • K type thermocouple wire

There are multiple types and grades of thermocouple wire.Each type of thermocouple wire has a specific combination of metal alloys.This combination is what defines the type of thermocouple.Thermocouple grade wire is used to manufacture thermocouple probes.Thermocouple grade wire is normally used for the junction and inside the stem sheath.



Type K Temperature Range:

  • Thermocouple grade wire, –454 to 2,300F (–270 to 1260C)
  • Extension wire, 32 to 392F (0 to 200C)


Type K Accuracy (whichever is greater):

  • Standard: +/- 2.2C or +/- .75%
  • Special Limits of Error: +/- 1.1C or 0.4%


Consideration for bare wire type T thermocouple applications:



  • Aerospace and Composites
  • Aluminum
  • Food and Pharmaceutical
  • Forgings
  • Glass, Ceramics, Clay Tiles, Bricks
  • Heat Treating
  • Petroleum, Downhole Oil & Gas
  • Sensor Manufacturing
  • Steel
  • Utilities Power Generation
  • Thermocouple Wire
Code Wires component of the thermocouple
  +Positive leg -Negative leg
N Ni-cr-si (NP) Ni-si-magnesium (NN)
K Ni-Cr (KP) Ni-Al(Si) (KN)
E Ni-Cr (EP) Cu-Ni<constantan> (EN)
J Iron (JP) Cu-Ni<constantan> (JN)
T Copper (TP) Cu-Ni<constantan> (TN)
B Platinum  Rhodium-30% Platinum Rhodium-6%
R Platinum Rhodium-13% Platinum
S Platinum Rhodium-10% Platinum



  • ​Standards
ASTM ANSI IEC DIN BS NF JIS GOST
(American Society for Testing and Materials) E 230 (American National Standard Institute) MC 96.1 (European Standard by the International Electrotechnical Commission 584)-1/2/3 (Deutsche Industrie Normen) EN 60584 -1/2 (British Standards) 4937.1041, EN 60584 - 1/2 (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 (Japanese Industrial Standards) C 1602 - C 1610 (Unification of the Russian Specifications) 3044





  • Size range

Wire: 0.1 to 8.0 mm.



  • Working temperature:



Diameter/mm Long time Working Short period Working
temperature/°C temperature/°C
0.2, 0.3 150 200
0.5, 0.8 200 250
1.0, 1.2 250 300
1.6, 2.0 300 350



Nickel Chromel Alumel KP KN K Type Thermocouple Wire 1Nickel Chromel Alumel KP KN K Type Thermocouple Wire 2
