Nickel Chromel Alumel KP KN K Type Thermocouple Wire
Product Details:
| Place of Origin: | China |
| Brand Name: | DLX |
| Model Number: | K type thermocouple wire |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|

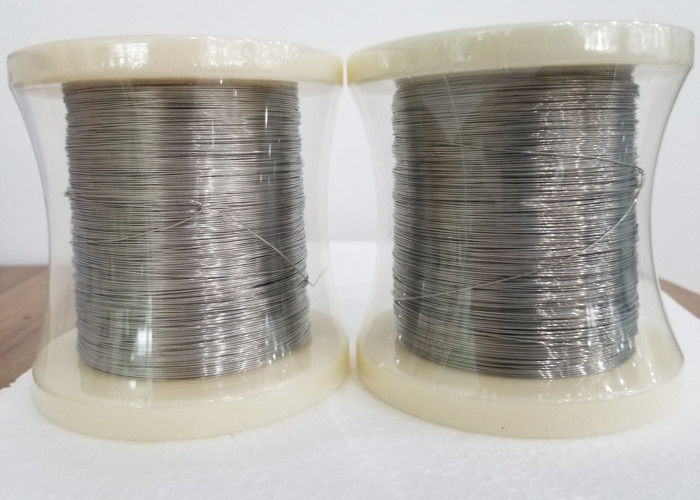

| Packaging Details: | Spool package with Carton box, Coil package with polybag for K type thermocouple wire |
| Delivery Time: | 5-21 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 tons per month |
|
Detail Information |
|||
| Product Name: | K Type Thermocouple Bare Wire | Color: | Bright |
|---|---|---|---|
| Certificate: | ISO9001 | Temperature Range: | –454 To 2,300F (–270 To 1260C) |
| Grade: | IEC854-1/3 | Positive: | Ni-Cr |
| Negative: | Ni-Al(Si) | Special Limits Of Error: | ± 1.1C Or 0.4% |
| Standard: | ± 2.2C% Or ±.75% | Maximum Continuous Temperature: | 1,100C. |
| High Light: | K Type Thermocouple Wire,Nickel Chromel Alumel Thermocouple Wire,KP Type Thermocouple Bare Wire |
||
Product Description
Nickel chromel alumel KP KN K type thermocouple wire
- K type thermocouple wire
There are multiple types and grades of thermocouple wire.Each type of thermocouple wire has a specific combination of metal alloys.This combination is what defines the type of thermocouple.Thermocouple grade wire is used to manufacture thermocouple probes.Thermocouple grade wire is normally used for the junction and inside the stem sheath.
Type K Temperature Range:
- Thermocouple grade wire, –454 to 2,300F (–270 to 1260C)
- Extension wire, 32 to 392F (0 to 200C)
Type K Accuracy (whichever is greater):
- Standard: +/- 2.2C or +/- .75%
- Special Limits of Error: +/- 1.1C or 0.4%
Consideration for bare wire type T thermocouple applications:
- Aerospace and Composites
- Aluminum
- Food and Pharmaceutical
- Forgings
- Glass, Ceramics, Clay Tiles, Bricks
- Heat Treating
- Petroleum, Downhole Oil & Gas
- Sensor Manufacturing
- Steel
- Utilities Power Generation
- Thermocouple Wire
| Code | Wires component of the thermocouple | |
| +Positive leg | -Negative leg | |
| N | Ni-cr-si (NP) | Ni-si-magnesium (NN) |
| K | Ni-Cr (KP) | Ni-Al(Si) (KN) |
| E | Ni-Cr (EP) | Cu-Ni<constantan> (EN) |
| J | Iron (JP) | Cu-Ni<constantan> (JN) |
| T | Copper (TP) | Cu-Ni<constantan> (TN) |
| B | Platinum Rhodium-30% | Platinum Rhodium-6% |
| R | Platinum Rhodium-13% | Platinum |
| S | Platinum Rhodium-10% | Platinum |
- Standards
| ASTM | ANSI | IEC | DIN | BS | NF | JIS | GOST |
| (American Society for Testing and Materials) E 230 | (American National Standard Institute) MC 96.1 | (European Standard by the International Electrotechnical Commission 584)-1/2/3 | (Deutsche Industrie Normen) EN 60584 -1/2 | (British Standards) 4937.1041, EN 60584 - 1/2 | (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 | (Japanese Industrial Standards) C 1602 - C 1610 | (Unification of the Russian Specifications) 3044 |
- Size range
Wire: 0.1 to 8.0 mm.
- Working temperature:
|
