Product Details
Place of Origin: China
Brand Name: DLX
Model Number: NiTiNol
Payment & Shipping Terms
Minimum Order Quantity: 15

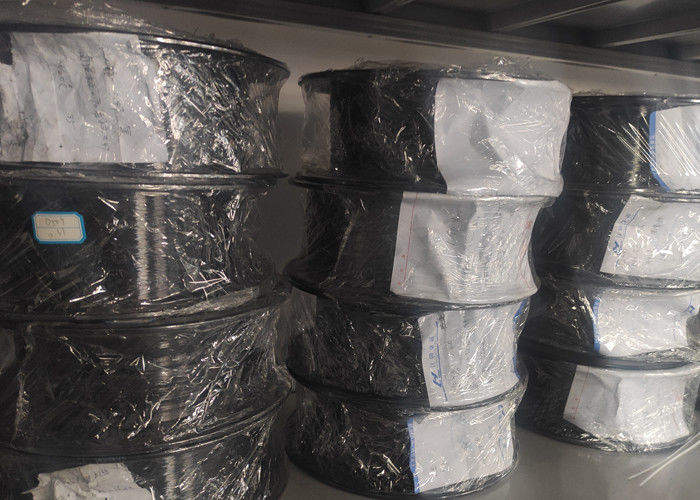

Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Material: |
Ni+Ti |
Fracture Elongation: |
≥10% |
Density: |
6.45 G/cm3 |
Tensile Strength Rm N/mm²: |
≥1000 MPa |
Loading Plateau Stress: |
≥ 380 MPa |
Austenite Finish Temperature(Af): |
≤15 °C |
Melting Point: |
1310 |
Coefficient Of Thermal Expansion: |
11×10-6 °K |
Specific El. Resistivity: |
82 μΩcm |
Modulus Of Elasticity: |
41-75 GPa |
Permanent Set (after 6% Strain): |
≤0,3 % |
Material: |
Ni+Ti |
Fracture Elongation: |
≥10% |
Density: |
6.45 G/cm3 |
Tensile Strength Rm N/mm²: |
≥1000 MPa |
Loading Plateau Stress: |
≥ 380 MPa |
Austenite Finish Temperature(Af): |
≤15 °C |
Melting Point: |
1310 |
Coefficient Of Thermal Expansion: |
11×10-6 °K |
Specific El. Resistivity: |
82 μΩcm |
Modulus Of Elasticity: |
41-75 GPa |
Permanent Set (after 6% Strain): |
≤0,3 % |
What is NiTiNol alloy.
NiTi alloy Nitinol is used for these medical devices because it is bio-compatible, meaning it is compatible with the human body and will, therefore, not be harmful to human tissue. Other materials that are not bio-compatible can result in issues such as blood clotting when used for similar applications. Nitinol is generally produced in large cast ingots and can be subsequently processed all the way down to ultra-fine wires that are only a fraction of the size of a human hair. The final stages of the entire process are called wire drawing and require precision control in order to maintain physical and mechanical properties
.
Superelastic Nitinol is commonly used in medical devices. Transformation temperatures for superelastic grades are between -20°C and 22°C [-4°F and 71.6°F].
Shape memory Nitinol is commonly used for actuators and other industrial applications. Transformation temperatures for shape memory grades are between 22°C and 80°C [71.6°F and 176°F], with some grades offering temperatures greater than 85°C [185°F].
Nickel welding wire Nickel welding wire Nickel welding wire Nickel welding wire Nickel welding wire
| Component | Nickel | Cobalt | Iron | Carbon | Nioium | Copper | Chromium | Oxygen + Nitrogen | Hydrogen | Titanium |
| wt % | 54,50-57,00 | max. 0,050 | max. 0,050 | max. 0,050 | max. 0,025 | max. 0,010 | max. 0,010 | max. 0,050 | max. 0,005 | balance |
elding Wire Nickel Welding Wire Nickel Welding Wire
| Ultimate Tensile Strength | Fracture Elongation | Loading Plateau Stress (at 3% strain) | Permanent Set (after 6% strain) | Austenite Finish Temperature(Af) |
| min. 1000 MPa | min. 10 % | min. 380 MPa | max. 0,3 % | max. 15 °C |
| Melting Point | Density | Specific el. Resistivity | Coefficient of Thermal Expansion (CTE) | Modulus of Elasticity |
| 1310 °C | 6,5 g/cm3 | 82 μΩcm | 11×10-6 °K | 41-75 GPa |
