Hot Plates Ni60Cr15 637 MPA Wire Metal Alloy

Hot Plates Ni60Cr15 637 MPA Wire Metal Alloy

Product Details:

Place of Origin: China
Brand Name: DLX
Model Number: Ni60Cr15

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Material: Nickel, Chromium Nickel(Min): 55%
Resistivity: 1.12+/-0.05 Tensile Strength: 637MPA
Elongtation: ≥20% Application: Heating, Resistivity
Condition: Hard / Soft Sureface: Bright, Oxided, Acide
Delivery Time: 7-20 Days
High Light:

Ni60Cr15 Metal Alloy

,

637 MPA Alloy Mental

,

637 MPA Metal Alloy

Product Description

Hot Plates Ni60Cr15 637 MPA Wire Metal Alloy 0


Hot Plates Ni60Cr15 637 MPA Wire Metal Alloy 1


  • NiCr Series

Ni60Cr15 is an austenitic nickel-chromium alloy suitable for temperature applications up to 1150°C. This alloy is characterized by high resistivity, good oxidation resistance, very good form stability, good ductility after use and excellent weldabilit. Ni60Cr15 is used for electric heating elements in domestic and industrial appliances. Typical applications: potentiometers, heavy-duty resistors, tubular heaters, electric furnaces, grills, hot plates, toasters, storage heaters, fan heaters, hand dryers, etc.


















  • Nickel-chromium alloy performance tables
Performance material Cr10Ni90 Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Composition Ni 90 Rest Rest 55.061.0 34.037.0 30.034.0
Cr 10 20.023.0 28.031.0 15.018.0 18.021.0 18.021.0
Fe   ≤1.0 ≤1.0 Rest Rest Rest
Maximum temperature 1300 1200 1250 1150 1100 1100
Meltiing point 1400 1400 1380 1390 1390 1390
Density g/cm3 8.7 8.4 8.1 8.2 7.9 7.9
Resistivity   1.09±0.05 1.18±0.05 1.12±0.05 1.00±0.05 1.04±0.05
μΩ·m,20
Elongation at rupture ≥20 ≥20 ≥20 ≥20 ≥20 ≥20
Specific heat   0.44 0.461 0.494 0.5 0.5
J/g.
Thermal conductivity   60.3 45.2 45.2 43.8 43.8
KJ/m.h
Coefficient of lines expansion   18 17 17 19 19
a×10-6/
(201000℃)
Micrographic structure   Austenite Austenite Austenite Austenite Austenite
Magnetic properties   Nonmagnetic Nonmagnetic Nonmagnetic Weak magnetic Weak magnetic




  • The Form we could offer
Size Range

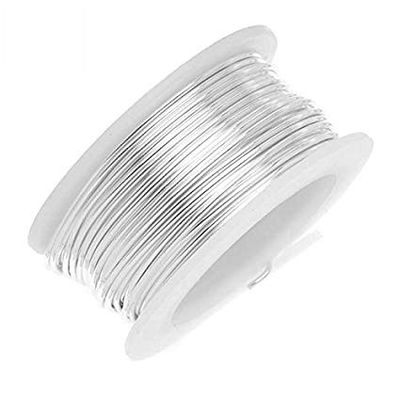

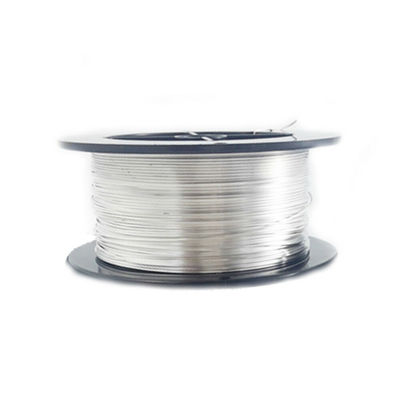

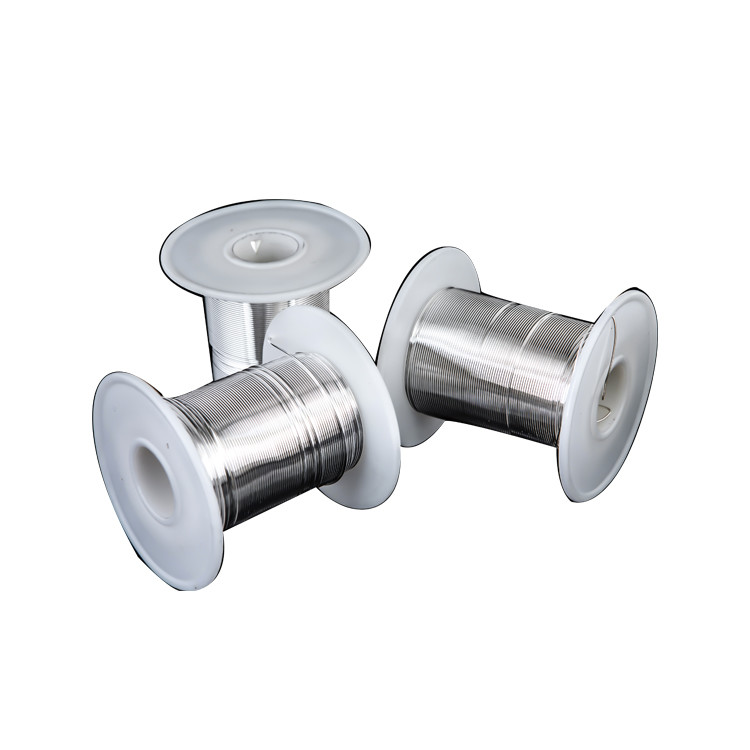

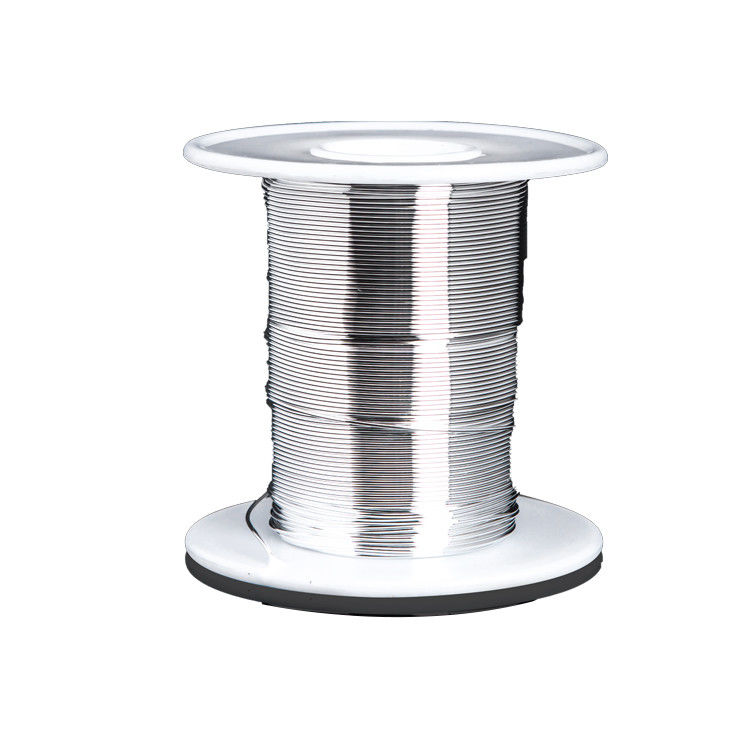

Wire
dia 0.03-7.5mm
Hot Plates Ni60Cr15 637 MPA Wire Metal Alloy 2
dia 8.0-12.0mm
Hot Plates Ni60Cr15 637 MPA Wire Metal Alloy 3
Ribbon
(0.05-0.35)*(0.5-6.0)mm
Hot Plates Ni60Cr15 637 MPA Wire Metal Alloy 4
Strip
(0.50-2.5)*(5-180)mm
Hot Plates Ni60Cr15 637 MPA Wire Metal Alloy 5
Rod
8-50mm

Hot Plates Ni60Cr15 637 MPA Wire Metal Alloy 6
