NiTiNol Wire Metal Alloy For Actuators

Product Details

Place of Origin: China

Brand Name: DLX

Certification: CE,ROHS

Model Number: NiTiNol

Payment & Shipping Terms

Minimum Order Quantity: 15

Packaging Details: Spool package with Carton box, Coil package with polybag

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

NiTiNol Wire Metal Alloy

,

NiTiNol Wire For Actuators

Material:
Ni+Ti
Fracture Elongation:
≥10%
Density:
6.45 G/cm3
Tensile Strength Rm N/mm²:
≥1000 MPa
Loading Plateau Stress:
≥ 380 MPa
Austenite Finish Temperature(Af):
≤15 °C
Melting Point:
1310
Coefficient Of Thermal Expansion:
11×10-6 °K
Specific El. Resistivity:
82 μΩcm
Material:
Ni+Ti
Fracture Elongation:
≥10%
Density:
6.45 G/cm3
Tensile Strength Rm N/mm²:
≥1000 MPa
Loading Plateau Stress:
≥ 380 MPa
Austenite Finish Temperature(Af):
≤15 °C
Melting Point:
1310
Coefficient Of Thermal Expansion:
11×10-6 °K
Specific El. Resistivity:
82 μΩcm
Description

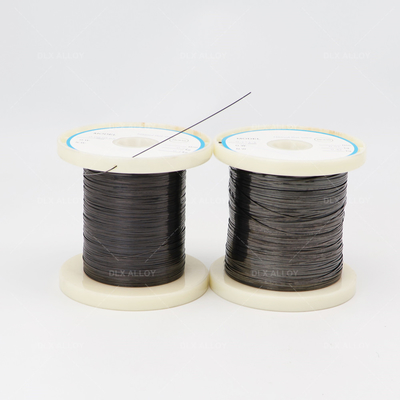

NiTiNol Wire Metal Alloy For Actuators

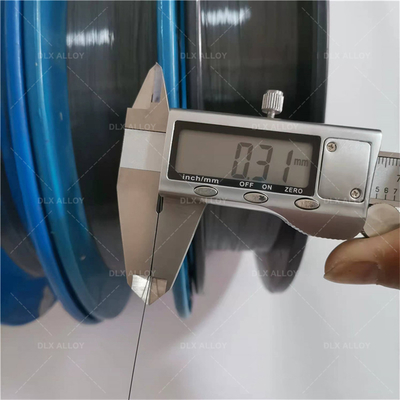

NiTiNol Wire Metal Alloy For Actuators 0

NiTiNol wire


What is NiTiNol alloy.



Nitinol is an alloy comprised of nickel and titanium. At room temperature, nitinol is easily deformed and can be twisted into virtually any shape desired. As heat is applied to the material, however, at the right temperatures, nitinol reverts back to its original form, making it appear to “remember” it’s originally intended shape.

Nitinol’s transition temperature - or the conditions under which the alloy can change shapes - is repeatable over time as well, making the material ideal for use over many cycles. Said plainly, nitinol can undergo many deformation-heating-reversion cycles, which means nitinol is a smart choice of material when long-term application is the optimal outcome. Typically, nitinol becomes transformable at 180°F, but these variables can be higher or lower. As a matter of fact, nitinol’s transition temperatures vary depending upon the precise composition of the nitinol in use, as well as how it was heat-treated at the time it was manufactured.

.

Superelastic Nitinol is commonly used in medical devices. Transformation temperatures for superelastic grades are between -20°C and 22°C [-4°F and 71.6°F].

Shape memory Nitinol is commonly used for actuators and other industrial applications. Transformation temperatures for shape memory grades are between 22°C and 80°C [71.6°F and 176°F], with some grades offering temperatures greater than 85°C [185°F].





Nickel welding wire    Nickel welding wire    Nickel welding wire   Nickel welding wire   Nickel welding wire


Chemical Properties of NiTiNol Tube

el Welding Wire    Nickel W

Component Nickel Cobalt Iron Carbon Nioium Copper Chromium Oxygen + Nitrogen Hydrogen Titanium
wt % 54,50-57,00 max. 0,050 max. 0,050 max. 0,050 max. 0,025 max. 0,010 max. 0,010 max. 0,050 max. 0,005 balance

elding Wire    Nickel Welding Wire   Nickel Welding Wire


Mechanical / Superelastic Tubes Properties



Ultimate Tensile Strength Fracture Elongation Loading Plateau Stress (at 3% strain) Permanent Set (after 6% strain) Austenite Finish Temperature(Af)
min. 1000 MPa min. 10 % min. 380 MPa max. 0,3 % max. 15 °C





Physical Tube Properties



Melting Point Density Specific el. Resistivity Coefficient of Thermal Expansion (CTE) Modulus of Elasticity
1310 °C 6,5 g/cm3 82 μΩcm 11×10-6 °K 41-75 GPa







How can I contact with your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile
telephone.

What is your working time?
Monday-Saturday : 8:30AM-16:00PM (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . For detail,
please see our update holiday notice. During these period, if you have a demand, Please
send me an email.

Do you provide free samples?
Yes, we can provide a free sample for testing,buyer should bear all the shipping costs.

What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
We are doing the best to match your demand.

What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
Normal order is 10-30days,it depends on customers' quantity.
Anyway,we try to offer good-quality products as soon as possible.

Can you supply neutral packaging or labels with our company name?
Yes, please confirm on your requirements with your RFQ and order. Special packaging to individual requirements may also be available on request.

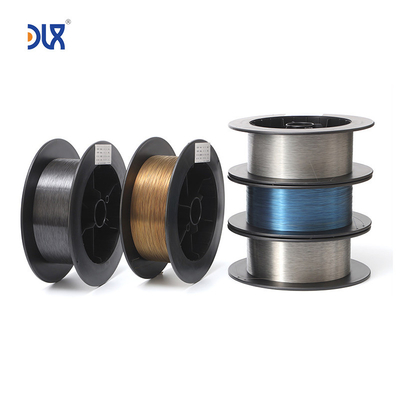

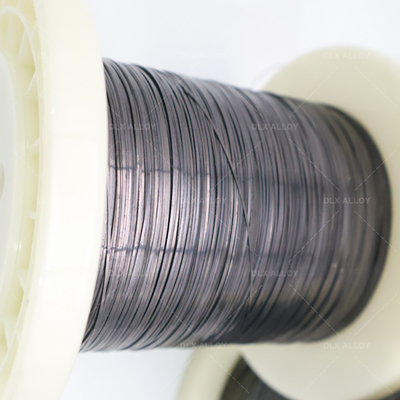

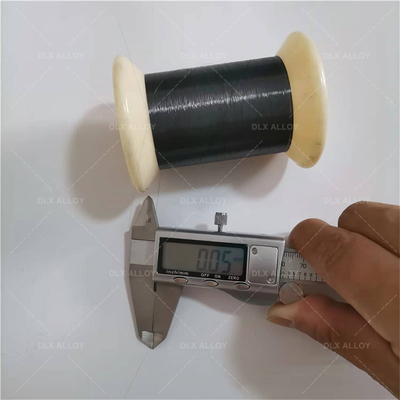

NiTiNol Wire Metal Alloy For Actuators 1NiTiNol Wire Metal Alloy For Actuators 2NiTiNol Wire Metal Alloy For Actuators 3

contact us:

email:sales7@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Product Available Size:
Wires: Diameter0.5~7.5mm

Rods:Diameter8.0~200mm
Strip:Thickness0.5~2.5mm, Width5~180mm
Plate: Customized
Tube: Customized
