NiTi Alloy Nitinol Tube 1.2*1.0*1000 For Sales

NiTi Alloy Nitinol Tube 1.2*1.0*1000 For Sales

Product Details:

Place of Origin: China
Brand Name: DLX
Model Number: NiTiNol

Payment & Shipping Terms:

Minimum Order Quantity: 15
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Material: Ni+Ti Fracture Elongation: ≥10%
Density: 6.45 G/cm3 Tensile Strength Rm N/mm²: ≥1000 MPa
Loading Plateau Stress: ≥ 380 MPa Austenite Finish Temperature(Af): ≤15 °C
Melting Point: 1310 Certificate: ISO 9001
High Light:

NiTi Alloy Nitinol Tube

,

Aerospace NiTi Alloy Nitinol Tube

Product Description

NiTi Alloy Nitinol Tube 1.2*1.0*1000 For Sales 0

NiTi alloy Nitinol tube 1.2*1.0*1000 for sales


What is NiTiNol alloy.



Nitinol is a kind of special unique material. No other material exhibits the mechanical shape memory superelasticity and the thermal shape memory effects. Fields of applications of Nitinol are peripheral stents, cardio stents and other medical devices for the human body. The name for the alloys composing it (Ni-nickel and Ti-titanium), along with the laboratory where it was discovered (the Naval Ordnance Laboratory), nitinol is also widely used in the aerospace, energy and industrial sectors.

Part of what makes nitinol invaluable is its ability to return to its original structure and shape once a stress is removed, all without substantial deformation. This remarkable characteristic stems from nitinol’s reversible solid-state phase transformation, known as martensitic transformation. Nitinol is also highly biocompatibile, resisting corrosion in the human body, and has been proven safe in vascular, soft tissue and orthopedic applications.

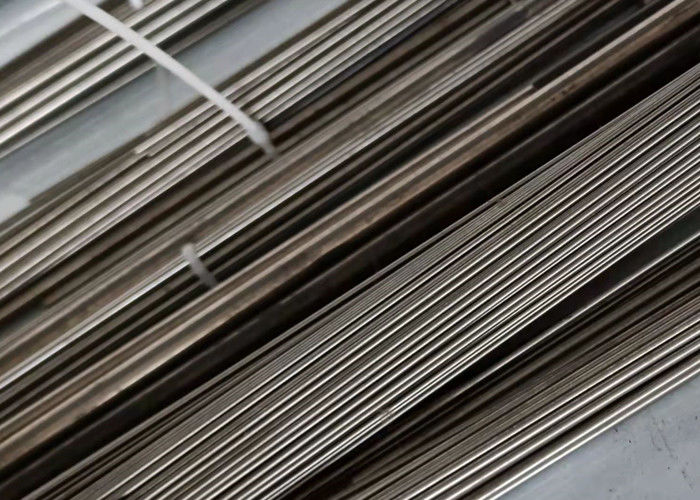

NiTiNol Tube:

Our Nitinol tubes with the mechanical properties, requested tolerances and appropriate surface quality for stent use. All our Niti tubes are made according to customers specifications.





Nickel welding wire    Nickel welding wire    Nickel welding wire   Nickel welding wire   Nickel welding wire


Chemical Properties of NiTiNol Tube

el Welding Wire    Nickel W

Component Nickel Cobalt Iron Carbon Nioium Copper Chromium Oxygen + Nitrogen Hydrogen Titanium
wt % 54,50-57,00 max. 0,050 max. 0,050 max. 0,050 max. 0,025 max. 0,010 max. 0,010 max. 0,050 max. 0,005 balance

elding Wire    Nickel Welding Wire   Nickel Welding Wire


Mechanical / Superelastic Tubes Properties



Ultimate Tensile Strength Fracture Elongation Loading Plateau Stress (at 3% strain) Permanent Set (after 6% strain) Austenite Finish Temperature(Af)
min. 1000 MPa min. 10 % min. 380 MPa max. 0,3 % max. 15 °C





Physical Tube Properties



Melting Point Density Specific el. Resistivity Coefficient of Thermal Expansion (CTE) Modulus of Elasticity
1310 °C 6,5 g/cm3 82 μΩcm 11×10-6 °K 41-75 GPa







CHANGZHOU DLX ALLOY COMPANY was establish in 2016,our factory established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate.Our factory is becoming a high-tech company,We are professional in researching and producing special alloy material.The production process include melting,drawing,heat treatment,finishing and testing.We offer super alloy,welding wire,corrosion resistance alloy,precision alloy,FeCrAl alloy,NiCr alloy,CuNi alloy,in the form of wire,strip,ribbon,bar,tube,plate and etc.The administrative principle of our company is "intensifying inner supervision, complying with technical process and quality control, continuously adopting new technology to ensure the product quality". We employ some senior engineers to instruct technology, apply new technology and research new products. Our operation principle is "Quality first, Customer first". All the staff of our company would like to provide high quality and reasonably priced products for clients at home and abroad, and to make your products more competitive.

NiTi Alloy Nitinol Tube 1.2*1.0*1000 For Sales 1NiTi Alloy Nitinol Tube 1.2*1.0*1000 For Sales 2
