Product Details
Place of Origin: China
Brand Name: DLX
Model Number: Monel 400
Payment & Shipping Terms
Minimum Order Quantity: 15
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
Thermal Spray Wire |
Grade: |
Monel 400 |
Certificate: |
ISO9001 |
Material: |
Ni+Cu |
Application: |
Corrosion Protection |
Coating Hardness: |
75 – 85 HRB |
Bonding Strength: |
27.5 – 34.5 MPa |
Size: |
0.8mm 1.2mm 1.6mm 2.4mm 3.2mm |
Name: |
Monel 40 / Tafa 70t/ Monel 60 |
Maximum Service Temperature: |
600 °C |
Product Name: |
Thermal Spray Wire |
Grade: |
Monel 400 |
Certificate: |
ISO9001 |
Material: |
Ni+Cu |
Application: |
Corrosion Protection |
Coating Hardness: |
75 – 85 HRB |
Bonding Strength: |
27.5 – 34.5 MPa |
Size: |
0.8mm 1.2mm 1.6mm 2.4mm 3.2mm |
Name: |
Monel 40 / Tafa 70t/ Monel 60 |
Maximum Service Temperature: |
600 °C |
1. Introduction:
DLX alloy offers monel 400 thermal spray wire. It also have the common name with Tafa 70t/ monel 60. Monel 400 wire is Monel 400 thermal spray wire with a high strength composition of nickel and cooper alloy. It is specifically designed for spraying in arc spray and flame spray systems. It can produces well-bonded coatings with excellent machineability. It is highly resistant to seawater, atmospheric corrosion,various acids and alkaline environments.
Typical applications for Monel 400 are protective coatings against corrosive gases, protection against scaling of conventional low alloy steels and build-up coatings for dimensional restoration.
| Item | Inconel 625 | Ni95Al5 | 45CT | Monel 400 | HC-276 | Cr20Ni80 | K500 |
| C | ≤0.05 | ≤0.02 | 0.01-0.1 | ≤0.04 | ≤0.02 | ≤0.08 | ≤0.25 |
| Mn | ≤0.4 | ≤0.2 | ≤0.2 | 2.5-3.5 | ≤1.0 | ≤0.06 | ≤1.5 |
| P | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.02 | ≤0.01 |
| S | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 |
| Si | ≤0.15 | ≤0.2 | ≤0.2 | ≤0.15 | ≤0.08 | 0.75-1.6 | ≤0.5 |
| Cr | 21.5-23 | ≤0.2 | 42-46 | - | 14.5-16 | 20-23 | - |
| Ni | Rest | Rest | Rest | 65-67 | Rest | Rest | Rest |
| Cu | - | - | - | Rest | - | - | 27-33 |
| Mo | 8.5-10 | - | - | - | 15-17 | - | - |
| Ti | ≤0.4 | 0.4-1 | 0.3-1.0 | 2.0-3.0 | - | - | 0.35-0.85 |
| Al | ≤0.4 | 4--5 | - | ≤0.5 | - | - | 2.3-3.15 |
| Fe | ≤1.0 | - | ≤0.5 | ≤1.0 | 4.0-7.0 | - | ≤1.0 |
| Nb | 3.5-4.15 | - | - | - | - | ≤1.0 | - |
| Co | - | - | - | - | - | - | - |
| V | - | - | - | - | ≤0.35 | - | - |
| W | - | - | - | - | 3.0-4.5 | - | - |
| Impurities | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.50 |
1 Protection against sulfuric acid environments at temperatures up to 600 °C (1100 °F) for applications such as industrial chemical crystallizers, dryers and vaporizers.
2 Corrosion protection for machine elements such as steam valves, pumps, seal rings and plungers.
3 Resists saltwater corrosion for components such as vaporizers and petrochemical crude oil distillation towers.
4 Protects immersed machine elements from saltwater corrosion, particularly for applications where a surface harder than typical galvanic coatings is required.
5 Corrosion protection for chemical and desalination plants.
Wire: 0.8mm 1.2mm 1.6mm 2.4mm 3.2mm.
Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)

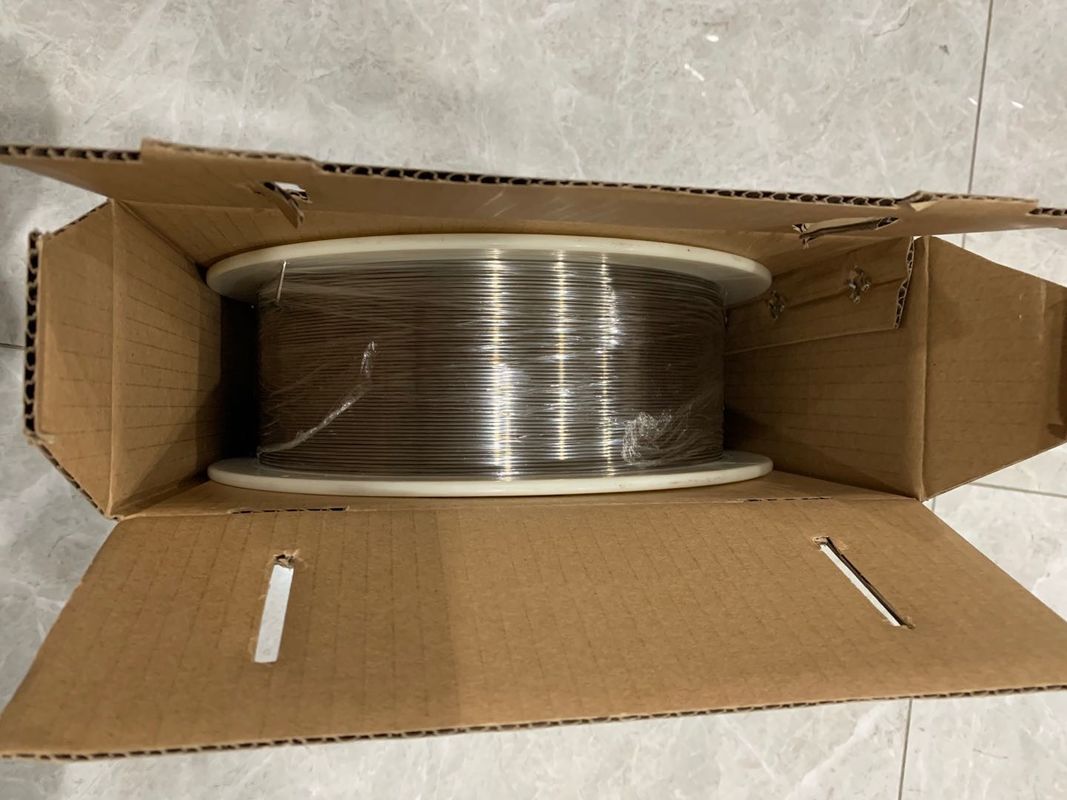

For the Thermal spray wires , we wind small size wire less than 1.6mm wires on spools. Bigger size over than 2.4mm in coils. Then put spools into cartons, Then put the cartons onto pallet or wood box.
1) Free sample could be supplied for testing purpose.
2) Customized lable, packing, OEM service.
3) Mill test certificate will be provided after production.
4) Good packing methods to keep goods statable.
