Ta-Fa 75B Nickel Alloy Wire NiAl955 / Ni95al5 Arc Spray Wire Coating Wire

Ta-Fa 75B Nickel Alloy Wire NiAl955 / Ni95al5 Arc Spray Wire Coating Wire

Product Details:

Place of Origin: China
Brand Name: DLX
Model Number: Ni95Al5

Payment & Shipping Terms:

Minimum Order Quantity: 15
Packaging Details: Spool package with Carton box, Coil package with polybag for Ni95al5
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Thermal Spray Wire Grade: Ni95Al5
Certificate: ISO9001 Material: Ni+Al
Application: Vacuum Coating Coating Hardness: HRB 75
Bonding Strength: 68.95 N/mm2 Size: 0.8mm
Name: PMET 885/Ni95Al5/Tafa 75B/ MEC 885
High Light:

Ta-Fa 75B Nickel Alloy Wire

,

NiAl955 Nickel Alloy Wire

,

Ni95al5 Arc Spray Wire

Product Description

Ta-Fa 75B Nickel Alloy Wire NiAl955 / Ni95al5 Arc Spray Wire Coating Wire 0

ta-fa 75B nickel alloy wire NiAl955 / Ni95al5 arc spray wire coating wire


  • Thermal spray wire​

Nickel based alloy Thermal Spray wire

Thermal spraying techniques are coating processes in which melted (or heated) materials are sprayed onto a surface.The "feedstock" (coating precursor) is heated by electrical (plasma or arc) or chemical means (combustion flame).Thermal spraying can provide thick coatings (approx. thickness range is 20 micrometers to several mm, depending on the process and feedstock), over a large area at high deposition rate as compared to other coating processes such aselectroplating, physical and chemical vapor deposition. Coating materials available for thermal spraying include metals,alloys, ceramics, plastics and composites. They are fed in powder or wire form, heated to a molten or semimolten state and accelerated towards substrates in the form of micrometer-size particles.



Combustion or electrical arc discharge is usually used as the source of energy for thermal spraying. Resulting coatings are made by the accumulation of numerous sprayed particles. The surface may not heat up significantly, allowing the coating of flammable substances.



Coating quality is usually assessed by measuring its porosity, oxide content, macro and micro-hardness, bond strength andsurface roughness. Generally, the coating quality increases with increasing particle velocities.



Bond coats applied using electric arc wire spray are very clean and more easily machined than their powder-sprayed counterparts. Wires are popular for machine element repair, most commonly on carbon steel, low-alloy steel, and stainless-steel substrates.







  • Thermal spray wire​
Item Inconel 625 Ni95Al5 45CT Monel 400 HC-276 Cr20Ni80 K500
C ≤0.05 ≤0.02 0.01-0.1 ≤0.04 ≤0.02 ≤0.08 ≤0.25
Mn ≤0.4 ≤0.2 ≤0.2 2.5-3.5 ≤1.0 ≤0.06 ≤1.5
P ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.02 ≤0.01
S ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01
Si ≤0.15 ≤0.2 ≤0.2 ≤0.15 ≤0.08 0.75-1.6 ≤0.5
Cr 21.5-23 ≤0.2 42-46 - 14.5-16 20-23 -
Ni Rest Rest Rest 65-67 Rest Rest Rest
Cu - - - Rest - - 27-33
Mo 8.5-10 - - - 15-17 - -
Ti ≤0.4 0.4-1 0.3-1.0 2.0-3.0 - - 0.35-0.85
Al ≤0.4 4--5 - ≤0.5 - - 2.3-3.15
Fe ≤1.0 - ≤0.5 ≤1.0 4.0-7.0 - ≤1.0
Nb 3.5-4.15 - - - - ≤1.0 -
Co - - - - - - -
V - - - - ≤0.35 - -
W - - - - 3.0-4.5 - -
Impurities ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50



  • ​Application

(1)For vacuum coating
(2)For making valves grid, inner components of vacuum valves
(3)Components insides the electron tubes
(4)For making lead, supporting wire
(5)For Electronic components
(6)For battery production
(7)Strong base of the filter




  • Size range

Wire: 0.8mm 1.2mm 1.6mm 2.4mm 3.2mm.





  • Package

Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)

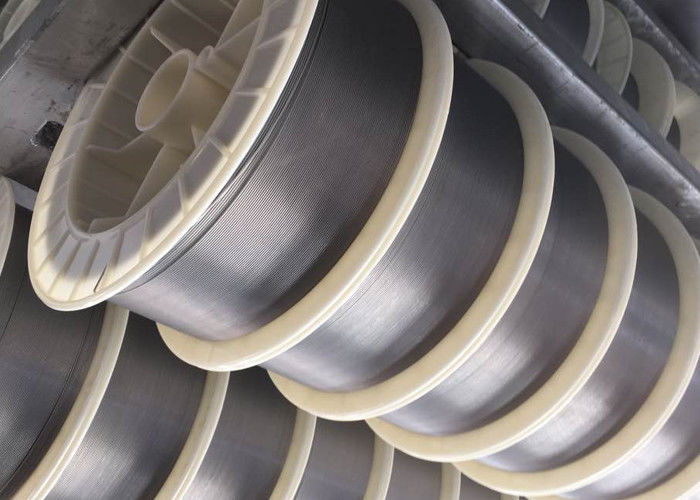

For the Thermal spray wires , we wind small size wire less than 1.6mm wires on spools. Bigger size over than 2.4mm in coils. Then put spools into cartons, Then put the cartons onto pallet or wood box.




  • Our Services

1) Free sample could be supplied for testing purpose.
2) Customized lable, packing, OEM service.
3) Mill test certificate will be provided after production.
4) Good packing methods to keep goods statable.







How can I contact with your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile
telephone.

What is your working time?
Monday-Saturday : 8:30AM-16:00PM (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . For detail,
please see our update holiday notice. During these period, if you have a demand, Please
send me an email.

Do you provide free samples?
Yes, we can provide a free sample for testing,buyer should bear all the shipping costs.

What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
We are doing the best to match your demand.

What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
Normal order is 10-30days,it depends on customers' quantity.
Anyway,we try to offer good-quality products as soon as possible.



CHANGZHOU DLX ALLOY COMPANY was establish in 2016,our factory established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate.Our factory is becoming a high-tech company,We are professional in researching and producing special alloy material.The production process include melting,drawing,heat treatment,finishing and testing.We offer super alloy,welding wire,corrosion resistance alloy,precision alloy,FeCrAl alloy,NiCr alloy,CuNi alloy,in the form of wire,strip,ribbon,bar,tube,plate and etc.The administrative principle of our company is "intensifying inner supervision, complying with technical process and quality control, continuously adopting new technology to ensure the product quality". We employ some senior engineers to instruct technology, apply new technology and research new products. Our operation principle is "Quality first, Customer first". All the staff of our company would like to provide high quality and reasonably priced products for clients at home and abroad, and to make your products more competitive.
