Thermal Spray Monel 400 Wire Corrosion Resistant 1.6mm

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: Monel 400

Payment & Shipping Terms

Minimum Order Quantity: 15

Packaging Details: Spool package with Carton box, Coil package with polybag

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Thermal Spray Monel 400 Wire

,

1.6mm Monel 400 Wire

,

Corrosion Resistant Thermal Spray Wire

Product Name:
Thermal Spray Wire
Grade:
Monel 400
Certificate:
ISO9001
Material:
Ni+Cu
Application:
Corrosion Protection
Coating Hardness:
75 – 85 HRB
Bonding Strength:
27.5 – 34.5 MPa
Size:
0.8mm 1.2mm 1.6mm 2.4mm 3.2mm
Name:
Monel 400
Maximum Service Temperature:
600 °C
Product Name:
Thermal Spray Wire
Grade:
Monel 400
Certificate:
ISO9001
Material:
Ni+Cu
Application:
Corrosion Protection
Coating Hardness:
75 – 85 HRB
Bonding Strength:
27.5 – 34.5 MPa
Size:
0.8mm 1.2mm 1.6mm 2.4mm 3.2mm
Name:
Monel 400
Maximum Service Temperature:
600 °C
Description
Thermal Spray Monel 400 Wire Corrosion Resistant 1.6mm

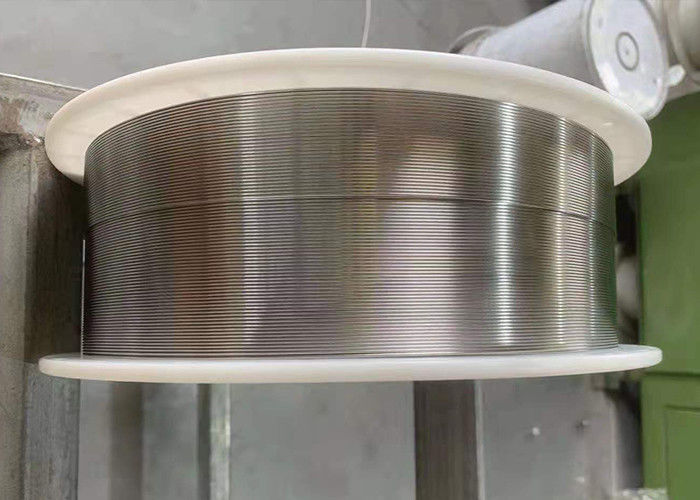

Thermal Spray Monel 400 Wire Corrosion Resistant 1.6mm 0


Resist Corrosion 1.6mm Monel 400 Thermal Spray Wire From Factory


  • Thermal spray wire​

1.Introduction:

DLX alloy alloy is one of the main factories for monel 400 thermal spray wire. Monel 400 thermal spray wire is a Monel type thermal spray wire with a high-strength composition of nickel and copper alloy. Coatings of Monel 400 thermal spray wire are highly resistant to seawater, atmospheric corrosion, various acids and alkaline solutions. These coatings are very beneficial for marine and chemical equipment applications. The addition of copper to the alloy increases the resistance of Monel 400 thermal spray wire in reducing conditions compared to coatings of pure nickel. Coatings are low shrink and machinable. Under oxidizing conditions, streaming seawater and non-ventilated sulfuric acid environments, Monel 400 thermal spray wire more resistant than coatings of pure copper. Neutral and alkaline high temperature salt solutions with high air content do not attack this material.



  • Thermal spray wire​
Item Inconel 625 Ni95Al5 45CT Monel 400 HC-276 Cr20Ni80 K500
C ≤0.05 ≤0.02 0.01-0.1 ≤0.04 ≤0.02 ≤0.08 ≤0.25
Mn ≤0.4 ≤0.2 ≤0.2 2.5-3.5 ≤1.0 ≤0.06 ≤1.5
P ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.02 ≤0.01
S ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01
Si ≤0.15 ≤0.2 ≤0.2 ≤0.15 ≤0.08 0.75-1.6 ≤0.5
Cr 21.5-23 ≤0.2 42-46 - 14.5-16 20-23 -
Ni Rest Rest Rest 65-67 Rest Rest Rest
Cu - - - Rest - - 27-33
Mo 8.5-10 - - - 15-17 - -
Ti ≤0.4 0.4-1 0.3-1.0 2.0-3.0 - - 0.35-0.85
Al ≤0.4 4--5 - ≤0.5 - - 2.3-3.15
Fe ≤1.0 - ≤0.5 ≤1.0 4.0-7.0 - ≤1.0
Nb 3.5-4.15 - - - - ≤1.0 -
Co - - - - - - -
V - - - - ≤0.35 - -
W - - - - 3.0-4.5 - -
Impurities ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50



  • ​Application

1 Protection against sulfuric acid environments at temperatures up to 600 °C (1100 °F) for applications such as industrial chemical crystallizers, dryers and vaporizers.

2 Corrosion protection for machine elements such as steam valves, pumps, seal rings and plungers.

3 Resists saltwater corrosion for components such as vaporizers and petrochemical crude oil distillation towers.

4 Protects immersed machine elements from saltwater corrosion, particularly for applications where a surface harder than typical galvanic coatings is required.

5 Corrosion protection for chemical and desalination plants.




  • Size range

Wire: 0.8mm 1.2mm 1.6mm 2.4mm 3.2mm.





  • Package

Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)
For the Thermal spray wires , we wind small size wire less than 1.6mm wires on spools. Bigger size over than 2.4mm in coils. Then put spools into cartons, Then put the cartons onto pallet or wood box.




  • Our Services

1) Free sample could be supplied for testing purpose.
2) Customized lable, packing, OEM service.
3) Mill test certificate will be provided after production.
4) Good packing methods to keep goods statable.
