Ni95al5 Nickel Base Alloy Wire 1.6mm For Electronic Components

Ni95al5 Nickel Base Alloy Wire 1.6mm For Electronic Components

Product Details:

Place of Origin: China
Brand Name: DLX
Model Number: Ni95Al5

Payment & Shipping Terms:

Minimum Order Quantity: 15
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Thermal Spray Wire Grade: Ni95Al5
Certificate: ISO9001 Material: Ni+Al
Application: Vacuum Coating Coating Hardness: HRB 75
Bonding Strength: 68.95 N/mm2 Size: 0.8mm
High Light:

Ni95al5 Nickel Base Alloy Wire

,

1.6mm Nickel Base Alloy Wire

Product Description

Ni95al5 Nickel Base Alloy Wire 1.6mm For Electronic Components 0


1.6mm Ni95al5 Wire From Factory


  • Thermal spray wire​

Introduction:

Changzhou DLX alloy produce nickel based alloy. And we also offer NiAl95/5 is kind of nickel aluminum alloyfor thermal spray.

PMET 885/Ni95Al5/Tafa 75B/ MEC 885 is widely used as a bond coat for subsequent thermal spray topcoats and as a one-step build up material for dimensional restoration of aircraft engines. Thermal spray wire ni95al5 can be achieved on clean smooth surfaces. Roughening of the surface by machining, grit blasting or grinding can increase the bond strength up to 10,000 psi. Changzhou DLX alloy produce Ni95Al 5 wire and Ni exhibits good resistance to high temperature oxidation and abrasion, and excellent resistance to impact and bending. NiAl95/5 can be machined and ground to a finish of 5 micro inches. It is a self-bonding, one step material and is also suitable for the build-up and dimensional restoration of nickel-based alloys.



Typical Uses and Applications:
This material has proven very effective in providing long term protection to boiler tubes against high temperature sulfidation. The wrought material is highly resistant to sulfur/vanadium atmospheres up to 1800°F. Wrought material of this type has shown a 2 mil per year corrosion rate over a nine year period when used in the super heater section of boilers. Coatings of 45CT wire applied to boiler tubes have shown virtually no loss of thickness or spalling after 24 months of service (as of this writing).







  • Thermal spray wire​
Item Inconel 625 Ni95Al5 45CT Monel 400 HC-276 Cr20Ni80 K500
C ≤0.05 ≤0.02 0.01-0.1 ≤0.04 ≤0.02 ≤0.08 ≤0.25
Mn ≤0.4 ≤0.2 ≤0.2 2.5-3.5 ≤1.0 ≤0.06 ≤1.5
P ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.02 ≤0.01
S ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01
Si ≤0.15 ≤0.2 ≤0.2 ≤0.15 ≤0.08 0.75-1.6 ≤0.5
Cr 21.5-23 ≤0.2 42-46 - 14.5-16 20-23 -
Ni Rest Rest Rest 65-67 Rest Rest Rest
Cu - - - Rest - - 27-33
Mo 8.5-10 - - - 15-17 - -
Ti ≤0.4 0.4-1 0.3-1.0 2.0-3.0 - - 0.35-0.85
Al ≤0.4 4--5 - ≤0.5 - - 2.3-3.15
Fe ≤1.0 - ≤0.5 ≤1.0 4.0-7.0 - ≤1.0
Nb 3.5-4.15 - - - - ≤1.0 -
Co - - - - - - -
V - - - - ≤0.35 - -
W - - - - 3.0-4.5 - -
Impurities ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50



  • ​Application

(1) For vacuum coating
(2) For making valves grid, inner components of vacuum valves
(3) Components insides the electron tubes
(4) For making lead, supporting wire
(5) For Electronic components
(6) For battery production
(7) Strong base of the filter




  • Size range

Wire: 0.8mm 1.2mm 1.6mm 2.4mm 3.2mm.





  • Package

Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)

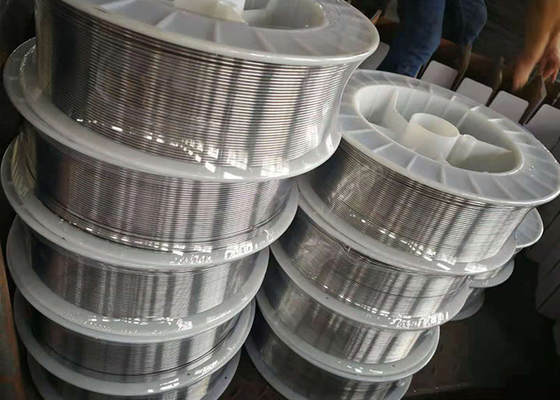

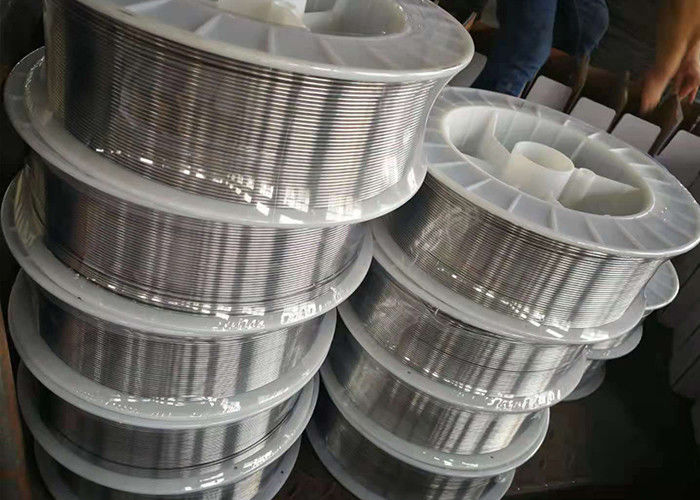

For the Thermal spray wires , we wind small size wire less than 1.6mm wires on spools. Bigger size over than 2.4mm in coils. Then put spools into cartons, Then put the cartons onto pallet or wood box.
