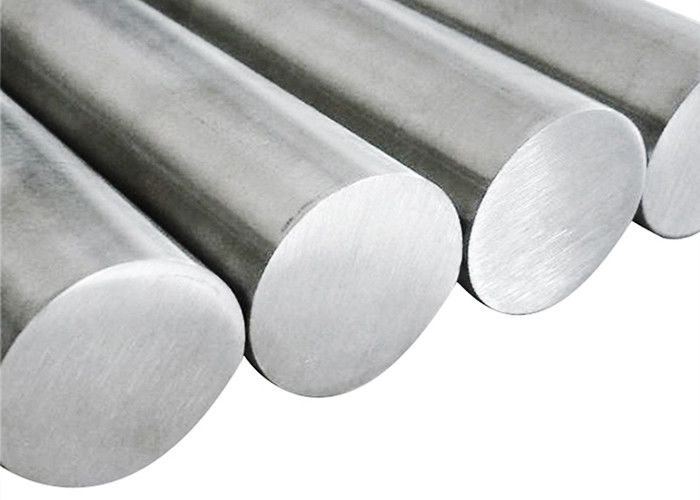

345 MPA Bright Annealing N10276 C276 Hastelloy Alloy
Product Details:
| Place of Origin: | China |
| Brand Name: | DLX |
| Model Number: | Hastelloy C276 Rod |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Packaging Details: | Hastelloy C276 round rod packed in wooden case |
| Delivery Time: | 5-21 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 tons per month |
|
Detail Information |
|||
| Material: | Ni Cr Mo | Elongation: | 30 % |
|---|---|---|---|
| Brinell Hardness HB: | ≤220 | Density: | 8.89 G/cm3 |
| Tensile Strength Rm N/mm²: | 760MPA | Yieldstrength R P0. 2 N/mm²: | 345MPA |
| Electrical Resistivity（24℃））: | 1.30 Microhm-m | Thermal Conductivity（32℃）: | 9.4 W/m-K |
| Product Name: | Hot Sale Industry Bright Annealing Hastelloy C276 Nickel Alloy Hastelloy C276 Round Rod | ||
| High Light: | 345 MPA Hastelloy Alloy,N10276 Nickel Base Alloy,C276 Hastelloy Alloy |
||
Product Description
- Nickel Based corrosion resistance Alloy
Hastelloy C276 Rod UNS N10276) was the first wrought, nickel-chromium-molybdenum material to alleviate concerns over welding (by virtue of extremely low carbon and silicon contents). As such, it was widely accepted in the chemical process and associated industries, and now has a more than 50-year-old track record of proven performance in a vast number of corrosive chemicals.
Like other nickel alloys, it is ductile, easy to form and weld, and possesses exceptional resistance to stress corrosion cracking in chloride-bearing solutions (a form of degradation to which the austenitic stainless steels are prone). With its high chromium and molybdenum contents, it is able to withstand both oxidizing and non-oxidizing acids, and exhibits outstanding resistance to pitting and crevice attack in the presence of chlorides and other halides. Furthermore, it is very resistant to sulfide stress cracking and stress corrosion cracking in sour, oilfield environments
-
Chemical Properties of Hastelloy C276 Rod
| Hastelloy Alloy | Ni | Cr | Co | Mo | FE | W | Mn | C | V | P | S | Si |
| C276 | Balance | 14.5-16.5 | 2.5 Max | 15.0-17.0 | 4.0-7.0 | 3.0-4.5 | 1.0 Max | 0.01 Max | 0.35 Max | 0.04 Max | 0.03 Max | 0.08 Max |
- Application
Some typical applications are:
- Strong oxidizers (such as ferric and cupric chlorides)
- Hot contaminated media (organic and inorganic)
- Chlorine
- Formic and acetic acids
- Acetic anhydride
- Seawater and brine solutions
- Type we could offer
| ASTM | Alloy | Type | UNS | Misc./Shape | |
| ASTM B574 Bar |
Hastelloy C276 | Nickel | N10276 | Bar | |
| ASTM B575 Plate |
Hastelloy C276 | Nickel | N10276 | Plate | |
| ASTM B575 Strip |
Hastelloy C276 | Nickel | N10276 | Strip | |
| ASTM B575 Sheet |
Hastelloy C276 | Nickel | N10276 | Sheet | |
| ASTM B619 Welded Pipe |
Hastelloy C276 | Nickel | N10276 | Welded Pipe | |
| ASTM B622 Seamless Tubing |
Hastelloy C276 | Nickel | N10276 | Seamless Tubing | |
| ASTM B366 Fittings |
Hastelloy C276 | Nickel | N10276 | Fittings | |
| ASTM B574 Wire |
Hastelloy C276 | Nickel | N10276 | Wire |
