AMS 5888 Inconel 617 UNS N06617 Plate Inconel Alloy

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: Inconel 617 plate

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: Inconel 617 plate packed in woodencase

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

AMS 5888 Inconel Alloy

,

Inconel 617 Nickel Chromium Alloy

,

UNS N06617 Inconel Alloy

Material:
Ni, Cr, Co, Mn
Nickel(Min):
44.5%
Specific Heat:
419 J/kg-°C
Electrical Resistivity 26°C:
1.22 µΩ-m .
Density:
8.36 G/cm3
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Melting Range:
1332-1380 ℃
Material:
Ni, Cr, Co, Mn
Nickel(Min):
44.5%
Specific Heat:
419 J/kg-°C
Electrical Resistivity 26°C:
1.22 µΩ-m .
Density:
8.36 G/cm3
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Melting Range:
1332-1380 ℃
Description

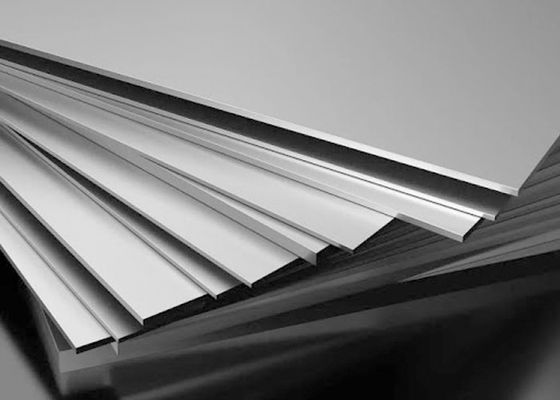

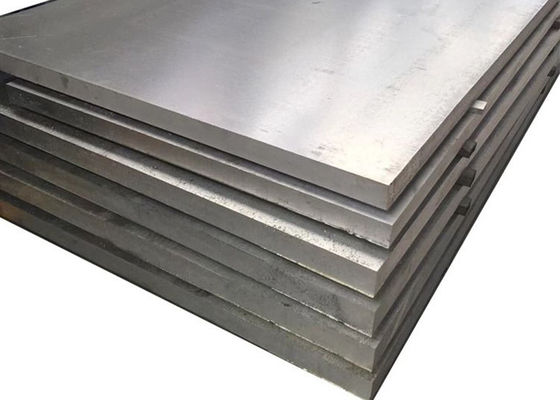

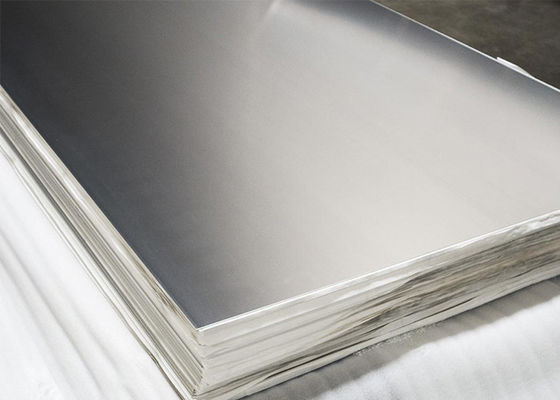

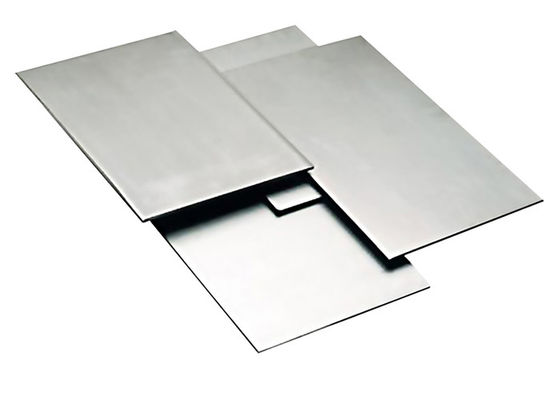

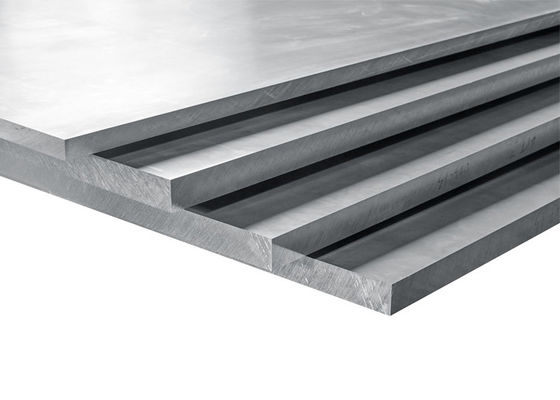

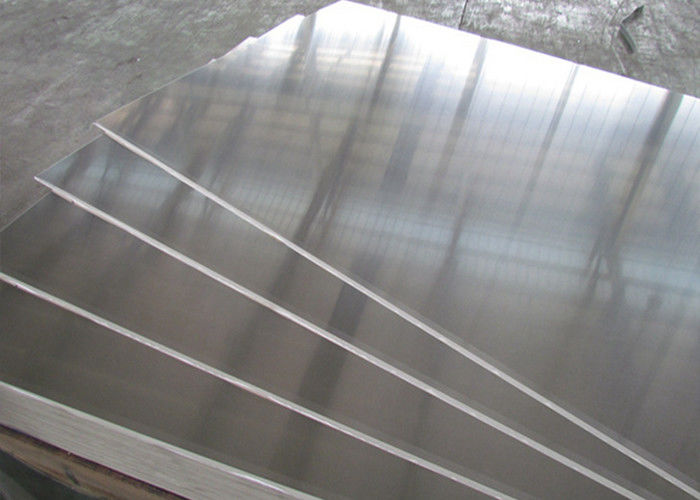

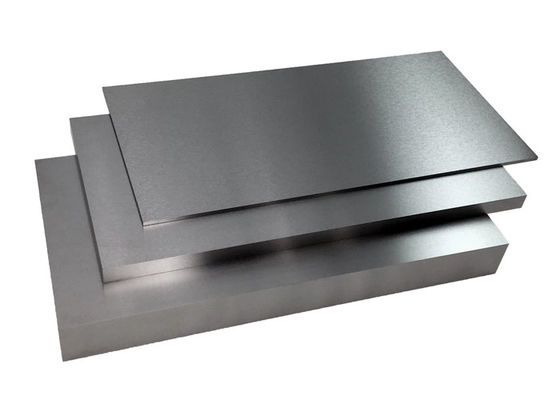

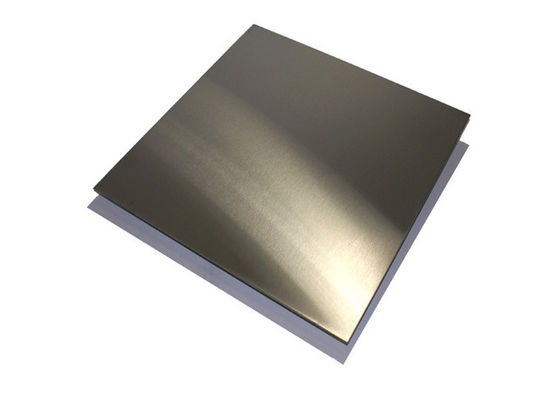

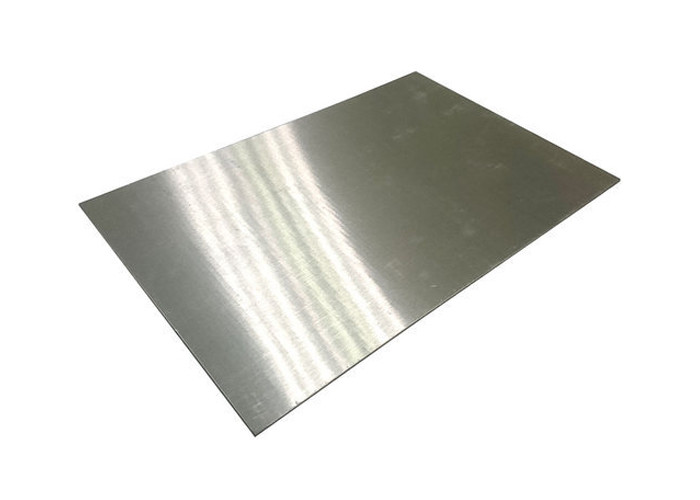

AMS 5888 Inconel 617 UNS N06617 Plate Inconel Alloy

AMS 5888 Inconel 617 UNS N06617 Plate Inconel Alloy 0


AMS 5888 Inconel 617 UNS N06617 Plate Inconel Alloy 1


  • Inconel Series

Inconel 617 Plate is a solid-solution, nickel-chromium-cobalt-molydenum alloy with an exceptional combination of high-temperature strength and oxidation resistance. The alloy also has excellent resistance to a wide range of corrosive environment, and it is readily formed and welded by conventional techniques.
The high nickel and chromium contents make the alloy resistant to a variety of both reducing and oxidizing media. The aluminum, in conjunction with the chromium, provides oxidation resistance at high temperatures. Solid-solution strengthening is imparted by the cobalt and molydenum.




  • Chemical Properties of Inconel 617

UNS Designation Inconel Alloy Nickel Cromium Cobalt Molybdenum Aluminium Carbon Iron Manganese Silicon Sulfur Titanium Copper Boron
N06617 617 44.5 min. 20.0 - 24.0 10.00 - 15.00 8.0 -10.0 0.8-1.5 0.05 -0.15 3.0max 1.0 max. 3.0max 0.015 max. 0.6 max 0.5 max. 0.006max





  • Application

The combination of high strength and oxidation resistance at temperatures over 1800°F makes inconel 617 plate an attractive material for such components as ducting, combustion cans, and transition liner in both aircraft, and land based gas turbines. Because of its resistance to high-temperature corrosion, the alloy is used for catalyst-grid supports in the production of nitric acid, for heat-treating baskets, and for reduction boats in the refining of molybdenum. Inconel 617 plate also offers attractive properties for components of power-generating plants, both fossil-fueled and nuclear








  • ,Type we could offer
    AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape
    AMS 5887 Inconel 617 Nickel N06617
    AMS 5887 Bar Inconel 617 Nickel N06617 - Bar AMS 5887 Bar
    AMS 5887 Custom Tube Inconel 617 Nickel N06617 - Custom Tube AMS 5887 Custom Tube
    AMS 5887 Forging Inconel 617 Nickel N06617 - Forging AMS 5887 Forging
    AMS 5887 Ring Inconel 617 Nickel N06617 - Ring AMS 5887 Ring
    AMS 5888 Inconel 617 Nickel N06617 - Plate Inconel 617
    AMS 5889 Inconel 617 Nickel N06617
    AMS 5889 Sheet Inconel 617 Nickel N06617 - Sheet AMS 5889 Sheet
    AMS 5889 Strip Inconel 617 Nickel N06617 - Strip AMS 5889 Strip
