0.5mm PTFE Type B Platinum Rhodium Thermocouple Bare Wire

Brand Name:	DLX
Model Number:	Type B Thermocouple Wire
MOQ:	1
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	300 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Thermocouple Bare Wire

Color:

Bright

Certificate:

ISO9001

Temperature Range:

32 To 3100F (0 To 1700C)

EMF Tolerance:

+/- 0.5%

Grade:

IEC854-1/3

Positive:

Platinum Rhodium

Negative:

Platinum Rhodium

Special Limits Of Error:

+/- 0.25%

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

300 tons per month

Highlight:

Platinum Rhodium Thermocouple Bare Wire

PTFE Thermocouple Wire Types

Type B Thermocouple Bare Wire

Product Description

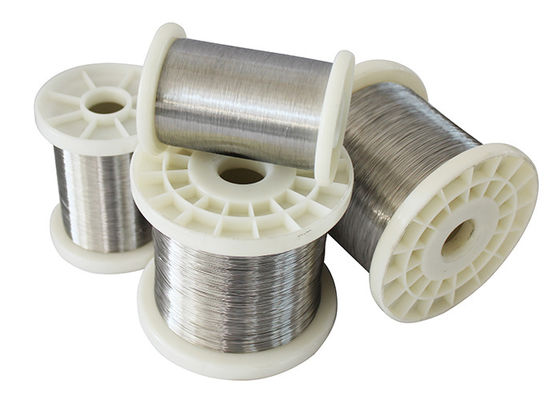

0.5mm PTFE Type B Platinum Rhodium Thermocouple Bare Wire 0

Thermocouple Wire

Type B Thermocouple (Platinum Rhodium – 30% / Platinum Rhodium – 6%)

The Type B thermocouple is used in extremely high temperature applications. It has the highest temperature limit of all of the thermocouples listed above. It maintains a high level of accuracy and stability at very high temperatures. The type B has a lower output than the other noble metals (type R & type S) at temperatures below 1,112F (600C).

Type R, S, and B thermocouples are "Noble Metal" thermocouples, which are used in high temperature applications.

Type S thermocouples are characterized by a high degree of chemical inertness and stability at high temperatures. Often used as a standard for calibration of base metal thermocouples.

Platinum rhodium thermocouple(S/B/R TYPE)

Platinum Rhodium Assembling Type Thermocouple is widely used in production places with high temperature. It is mainly used to measure temperature in glass and ceramic industry and industrial salting.

Insulation material: PVC, PTFE, FB or as per the customer's requirement.

Type B Temperature Range:

Thermocouple grade wire, 32 to 3100F (0 to 1700C)
Extension wire, 32 to 212F (0 to 100C)

Accuracy (whichever is greater):

Standard: +/- 0.5%
Special Limits of Error: +/- 0.25%

Consideration for bare wire type B thermocouple applications:

Heating - Gas burners for ovens
Cooling - Freezers
Engine protection - Temperatures and surface temperatures
High temperature control - Iron casting

Thermocouple Wire

Code	Wires component of the thermocouple
	+Positive leg	-Negative leg
N	Ni-cr-si (NP)	Ni-si-magnesium (NN)
K	Ni-Cr (KP)	Ni-Al(Si) (KN)
E	Ni-Cr (EP)	Cu-Ni<constantan> (EN)
J	Iron (JP)	Cu-Ni<constantan> (JN)
T	Copper (TP)	Cu-Ni<constantan> (TN)
B	Platinum Rhodium-30%	Platinum Rhodium-6%
R	Platinum Rhodium-13%	Platinum
S	Platinum Rhodium-10%	Platinum

Standards

ASTM	ANSI	IEC	DIN	BS	NF	JIS	GOST
(American Society for Testing and Materials) E 230	(American National Standard Institute) MC 96.1	(European Standard by the International Electrotechnical Commission 584)-1/2/3	(Deutsche Industrie Normen) EN 60584 -1/2	(British Standards) 4937.1041, EN 60584 - 1/2	(Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324	(Japanese Industrial Standards) C 1602 - C 1610	(Unification of the Russian Specifications) 3044

Size range

Wire: 0.1 to 8.0 mm.

Working temperature:

Diameter/mm	Type	Long time Working	Short period Working
Diameter/mm	Type	temperature/°C	temperature/°C
0.5	S	1300	1600
0.5	R	1300	1600
0.5	B	1600	1700

Chemical Composition

Conductor Name	Polarity	Code	Pt%	Rh%
Pt90Rh	Positive	SP	90	10
Pt	Negative	SN,RN	100	--
Pt87Rh	Positive	RP	87	13
Pt70Rh	Positive	BP	70	30
Pt94Rh	Negative	BN	94	6

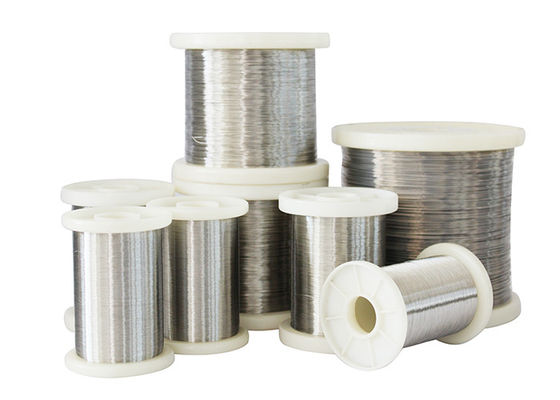

0.5mm PTFE Type B Platinum Rhodium Thermocouple Bare Wire 1
