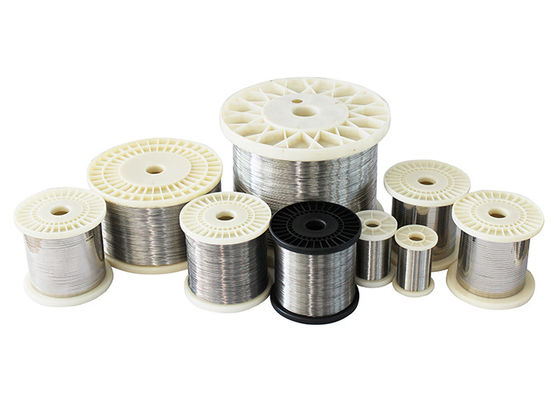

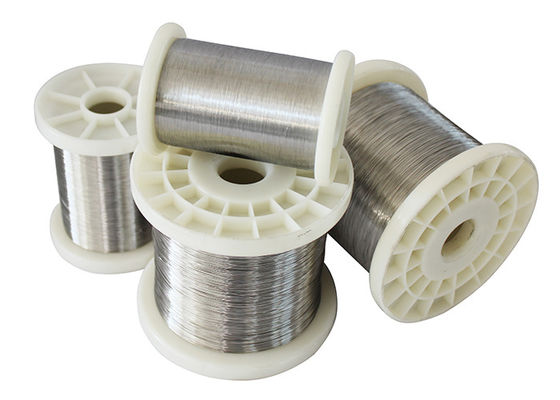

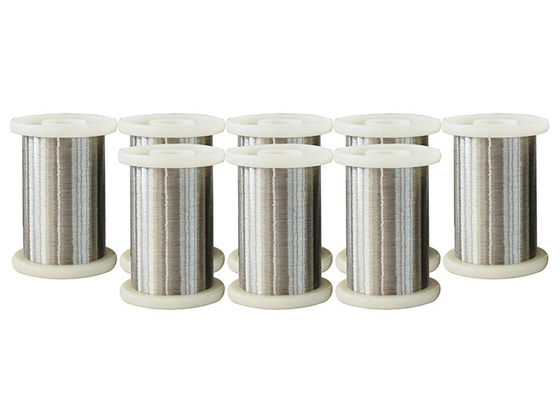

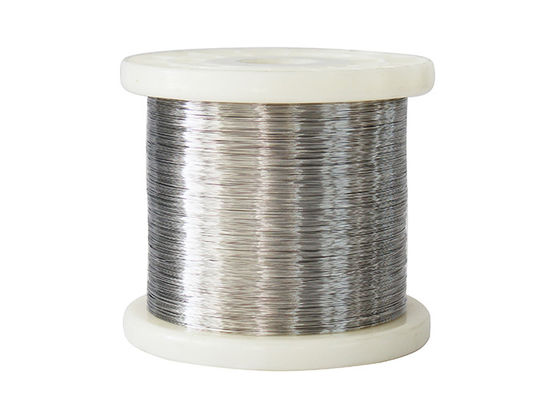

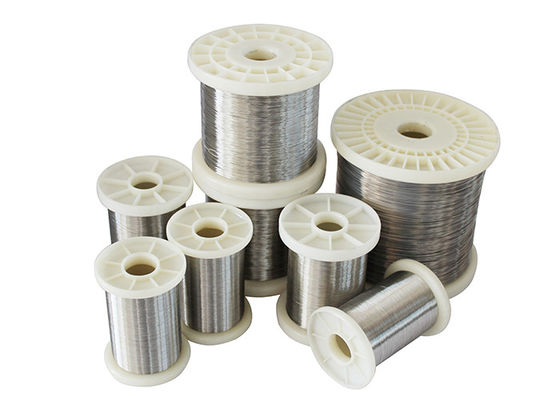

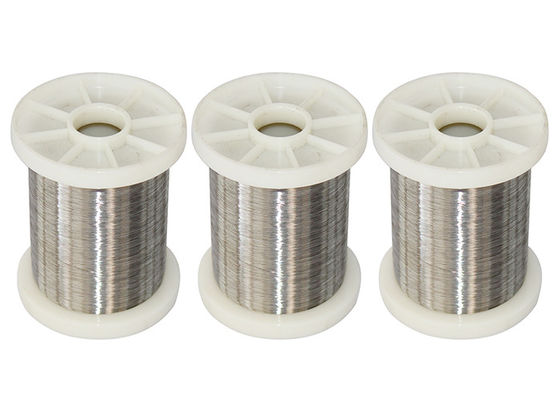

Type E Thermocouple Bare Wire

Brand Name:	DLX
Model Number:	Type E Thermocouple Wire
MOQ:	5
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	300 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Thermocouple Bare Wire

Color:

Bright

Certificate:

ISO9001

Temperature Range:

-454 To 1600F (-270 To 870C)

EMF Tolerance:

+/- 1.7C Or +/- 0.5%

Grade:

IEC854-1/3

Positive:

Ni-Cr

Negative:

Cu-Ni

Special Limits Of Error:

+/- 1.0C Or 0.4%

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

300 tons per month

Highlight:

EP Thermocouple Bare Wire

0.1mm Thermocouple Wire Types

Type E Thermocouple Bare Wire

Product Description

Type E Thermocouple Bare Wire 0

Thermocouple Wire

NiCr- CuNi thermocouple wire (type E) is also named NiCr-Constantan thermocouple wire. It has a stronger signal & higher accuracy than the Type K or Type J at moderate temperature ranges of 1,000F and lower. The type E is also more stable than the type K, which adds to its accuracy.

Type E thermocouple has the largest EMF output and highest sensitivity, so it is ideal for measuring small temperature change. It also has good stability in the low temperature range up to 300ºC, and good property of anti-corrosion in humidity atmosphere. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in reducing atmosphere and atmosphere with sulphur gases.

Thermocouple ribbon wire, rods, strips can be supplied according to your request.

Type E chemical composition:

Positive leg NiCr (EP) is Ni: Cr≈90:10; negative leg Constantan (EN) isCu: Ni≈ 55%: 45%

Type E Accuracy (whichever is greater):
Standard: +/- 1.7C or +/- 0.5%
Special Limits of Error: +/- 1.0C or 0.4%

Type E Temperature Range:
Thermocouple grade wire, -454 to 1600F (-270 to 870C)
Extension wire, 32 to 392F (0 to 200C)

Consideration for bare wire type E thermocouple applications:

In oxiding or inert atmospheres the operating range is roughly –418F to 1,652F (–250C to 900C).
Heating - Gas burners for ovens
Cooling - Freezers
Engine protection - Temperatures and surface temperatures
High temperature control - Iron casting

Thermocouple Wire

Code	Wires component of the thermocouple
	+Positive leg	-Negative leg
N	Ni-cr-si (NP)	Ni-si-magnesium (NN)
K	Ni-Cr (KP)	Ni-Al(Si) (KN)
E	Ni-Cr (EP)	Cu-Ni<constantan> (EN)
J	Iron (JP)	Cu-Ni<constantan> (JN)
T	Copper (TP)	Cu-Ni<constantan> (TN)
B	Platinum Rhodium-30%	Platinum Rhodium-6%
R	Platinum Rhodium-13%	Platinum
S	Platinum Rhodium-10%	Platinum

Standards

ASTM	ANSI	IEC	DIN	BS	NF	JIS	GOST
(American Society for Testing and Materials) E 230	(American National Standard Institute) MC 96.1	(European Standard by the International Electrotechnical Commission 584)-1/2/3	(Deutsche Industrie Normen) EN 60584 -1/2	(British Standards) 4937.1041, EN 60584 - 1/2	(Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324	(Japanese Industrial Standards) C 1602 - C 1610	(Unification of the Russian Specifications) 3044

Size range

Wire: 0.1 to 8.0 mm.

Working temperature:

Diameter/mm	Long time Working	Short period Working
Diameter/mm	temperature/°C	temperature/°C
0.3,0.5	350	450
0.8,1.0,1.2	450	550
1.6,2.0	550	650
2.5	650	750
3.2	750	900

Type E Thermocouple Bare Wire 1

contact us:

email:sales7@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Product Available Size:
Wires: Diameter0.5~7.5mm

Rods:Diameter8.0~200mm
Strip:Thickness0.5~2.5mm, Width5~180mm
Plate: Customized
Tube: Customized

After sale service:
24 hours on for after sale service
