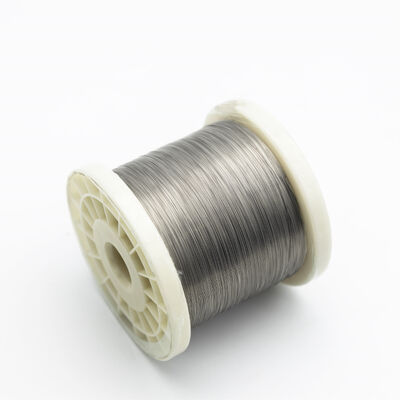

Precision Drawn Incoloy 825 Spring Wire Dia 0.5-6.0mm for Marine Valves

Precision drawn Incoloy 825 spring wire is a specialized nickel-iron-chromium-molybdenum alloy engineered for high-stress dynamic components operating in severe marine environments. Sized precisely between Dia 0.5mm and 6.0mm, this wire grade balances high mechanical strength, remarkable elasticity, and superior resistance to chloride-induced stress corrosion cracking. Designed primarily for marine valve springs, safety relief valves, and subsea actuators, our wire undergoes proprietary cold drawing and continuous surface treatment to eliminate micro-defects, ensuring uniform spring rate and extended cyclic fatigue life.

1. Exceptional Resistance to Marine Pitting and Crevice Corrosion: The synergistic combination of molybdenum and chromium guarantees an elevated Pitting Resistance Equivalent, preventing localized corrosion and stress fractures under constant exposure to warm seawater and chloride sprays.

2. High Elastic Modulus and Fatigue Life: Optimized multi-pass cold drawing achieves consistent spring temper without micro-fissures, delivering reliable spring back and zero load relaxation under repetitive high-frequency marine valve cycling.

3. Resistance to Sulfide Stress Cracking in Sour Oilfield Fluids: Effectively withstands harsh subsea wellhead and offshore processing media containing sour crude, wet hydrogen sulfide, and carbon dioxide.

4. Micro-Tolerance and Flawless Surface Integrity: Precision diamond die drawing maintains uniform cross-sectional roundness and defect-free surfaces, drastically reducing stress concentrations during cold coiling operations.

5. Thermal Stability Across Wide Temperatures: Retains reliable spring properties and mechanical ductility from cryogenic conditions up to moderately elevated marine exhaust and process temperatures.

• Subsea Safety Valves and Choke Valves: Internal return springs and actuator springs exposed to deep-sea hydrostatic pressure and raw crude.

• Marine Engine and Fuel Injection Valves: High-pressure valve return springs resisting sulfur-laden marine fuel combustion byproducts.

• Offshore Ball, Gate, and Check Valves: Sealing seat energizing springs and dynamic valve stems operating in aggressive splash zones and tidal immersion.

• Desalination and Chemical Dosing Valves: Precision metering pump springs handling high-salinity brine and corrosive chemical additives.

• Cryogenic Liquid and LNG Cargo Relief Systems: Spring-actuated pressure relief devices requiring low-temperature impact toughness and non-magnetic stability.

Changzhou DLX Alloy Co., Ltd. is a specialized manufacturer of high-performance nickel and specialty alloy materials with integrated melting, processing, and finishing capabilities.

• Comprehensive Metallurgical Control: Utilizing advanced vacuum induction melting (VIM) and electroslag remelting (ESR) technologies to ensure ultra-low gas content, zero internal segregation, and exceptional chemical homogeneity.

• Massive Capacity & Reliable Delivery: With a consolidated manufacturing capacity of 1,200 tons per month, DLX guarantees steady supply, stable lead times, and flexible batch configurations for global OEM spring makers.

• 100% In-House Testing and Quality Verification: Every spool is subjected to eddy current surface defect testing, continuous laser micrometer dimensional monitoring, and comprehensive mechanical tensile/torsion testing to guarantee zero failure rates in critical valve applications.

• Tailored Customization and Processing: Customized tensile ranges, specific coil coatings (soap or lubricant), and targeted spring temper levels matched exactly to your spring coiling machinery.

Q1: What diameter tolerances can DLX achieve for Incoloy 825 spring wire?

 A1: We provide ultra-tight cold drawing tolerances, maintaining standard tolerance within ±0.01mm, and custom precision micro-tolerances down to ±0.005mm to ensure consistent spring coiling pitch and uniform load distribution.

Q2: How does Incoloy 825 compare to conventional stainless steel (such as 316L or 17-7PH) in marine valve springs?

A2: While stainless steel grades are vulnerable to chloride stress corrosion cracking and pitting in warm or stagnant seawater, Incoloy 825 offers superior resistance to pitting, crevice corrosion, and hydrogen embrittlement, significantly extending spring service life in subsea and offshore environments.

Q3: What surface finishes are available for high-speed automatic spring coiling?

A3: We supply Incoloy 825 spring wire in bright annealed-and-drawn finish, polished finish, and specialized soap-coated surface. The soap-coated finish provides excellent die lubrication during high-speed cold coiling and can be easily degreased prior to heat treatment.

Q4: What is the recommended stress relief / heat treatment after coiling?

A4: After cold coiling, a low-temperature stress relief heat treatment (typically between 370°C and 430°C for 30 to 60 minutes, followed by air cooling) is recommended to relieve residual bending stresses and stabilize spring dimensions.

Q5: What is the Minimum Order Quantity (MOQ) and packaging standard?

A5: Our MOQ is flexible based on required diameter and manufacturing schedule, accommodating pilot development orders as well as large-scale production runs. Packaging options include precision-wound plastic spools (15kg to 25kg), heavy wire coils in protective polybags, and custom palletized wooden cases.
