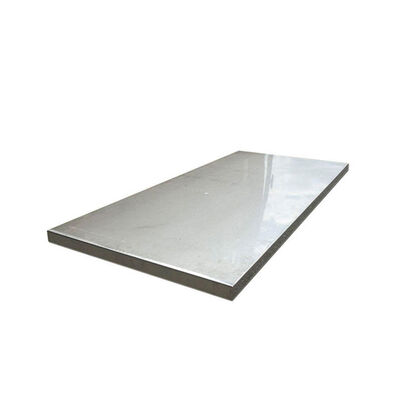

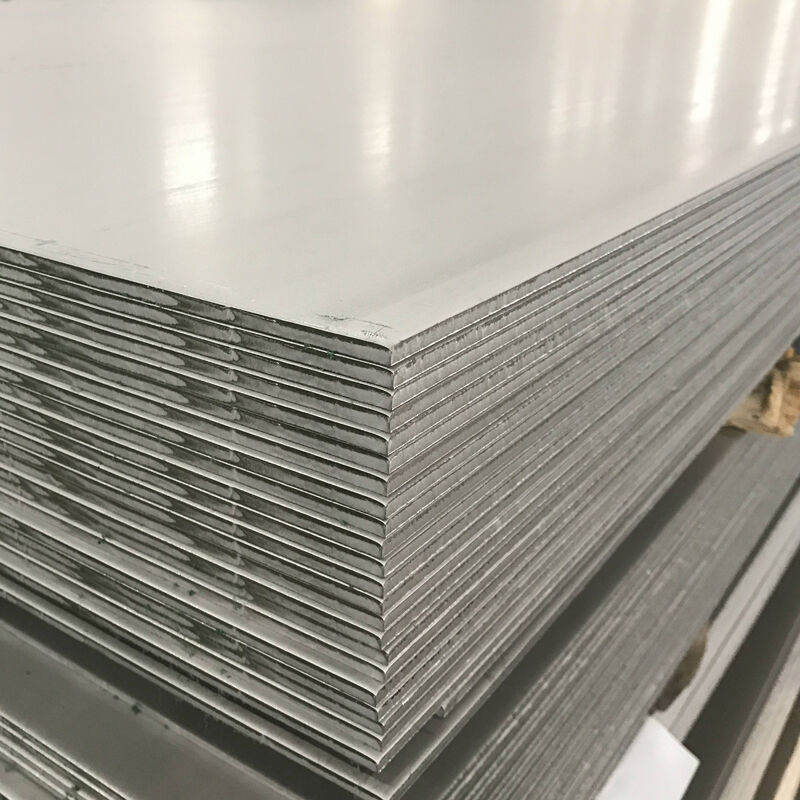

Heavy Duty Industrial Plate Incoloy 825 4mm-40mm For Sulfuric Acid Tanks

Incoloy 825 (UNS N08825 / W.Nr. 2.4858) heavy industrial plate is engineered to bridge the performance gap between conventional austenitic stainless steels and high-cost pure nickel alloys. In highly aggressive chemical containment—such as commercial sulfuric acid tanks operating across varying temperatures and concentrations—standard alloys frequently fail due to pitting, intergranular attack, or rapid general thinning.

By utilizing an optimized elemental formulation comprising 38%–46% Nickel, balanced Iron, 19.5%–23.5% Chromium, 2.5%–3.5% Molybdenum, and 1.5%–3.0% Copper, Incoloy 825 establishes an impenetrable passive oxide barrier. The addition of copper provides dedicated resistance against sulfuric acid degradation, while titanium stabilization prevents sensitization during heavy-section welding. Available in standard and custom plate thicknesses from 4mm to 40mm, each plate undergoes precision leveling, ultrasonic inspection, and edge preparation for seamless tank shell and vessel head fabrication.

• Exceptional Sulfuric Acid & Reducing Acid Immunity: The targeted synergy of copper and molybdenum delivers superior resistance to sulfuric acid concentrations ranging from dilute pickling baths to concentrated storage, as well as phosphoric and sulfurous acid solutions.
• Superior Resistance to Pitting & Stress-Corrosion Cracking (SCC): High nickel content protects structural tank walls against chloride-induced stress corrosion cracking, while chromium and molybdenum provide high pitting resistance equivalent numbers (PREN).
• Intergranular Corrosion Resistance Post-Welding: Titanium stabilization effectively binds carbon, preventing chromium carbide precipitation along grain boundaries during heavy welding and thermal cycles.
• High Structural Strength & Ductility: Maintains robust tensile strength (≥ 550 MPa) and high yield strength (≥ 220 MPa) with exceptional elongation, allowing heavy plate rolling, cold forming, and dished head pressing without micro-cracking.
• Precision Flatness & Tight Dimensional Tolerances: Hot-rolled and descaled/pickled with strict thickness uniformity (4mm–40mm), ensuring exact weld fit-up and reducing pre-fabrication machining time.

• Sulfuric Acid Storage Tanks & Mixing Vessels: Primary structural containment shells, tank bottoms, baffles, and internal heating coils exposed to hot sulfuric acid media.
• Phosphoric Acid Evaporators & Reactor Bodies: Heat exchanger tube sheets, evaporator bodies, and acid distribution systems in fertilizer manufacturing.
• Chemical & Petrochemical Processing Equipment: Distillation columns, vessel cladding, autoclave liners, piping manifolds, and valve bodies handling sour gas and aggressive catalyst mixtures.
• Flue Gas Desulfurization (FGD) Scrubbers: Absorber tower linings, ductwork, dampers, and expansion joints subject to condensed acid slurries and corrosive gas streams.
• Industrial Pickling Lines & Metal Refining: Pickling tank heating coils, acid recovery system housings, and electro-refining cell components.

• Integrated Refining & Massive Capacity: Powered by state-of-the-art Vacuum Induction Melting (VIM) and Electro-Slag Remelting (ESR) facilities, with an integrated manufacturing capacity of 1,200 tons per month, guaranteeing stable alloy purity and bulk order fulfillment.
• Strict Metallurgical & Quality Verification: Every batch is subjected to 100% PMI chemical analysis, mechanical property testing, ultrasonic non-destructive examination (NDE), and dimensional inspection with comprehensive Mill Test Certificates (MTC).
• Custom Processing & Turnkey Plate Services: In-house heavy-duty CNC plasma cutting, water-jet cutting, beveling, plate rolling, and surface treatment to deliver ready-to-weld components directly to your assembly floor.
• Global B2B Project Experience: Decades of specialized manufacturing and export experience supporting major EPC contractors, chemical vessel fabricators, and international engineering projects.

Q1: Why is Incoloy 825 plate preferred over stainless steel 316L for sulfuric acid storage tanks?

A1: While stainless steel 316L performs adequately in very low concentrations at ambient temperatures, it rapidly corrodes when temperature or concentration fluctuates. Incoloy 825 contains 38%–46% Nickel and 1.5%–3.0% Copper, specifically formulated to resist sulfuric acid corrosion across broader concentration ranges, elevated temperatures, and environments with chloride contamination.

Q2: What thickness tolerances and edge preparation services can DLX Alloy provide for 4mm–40mm plates?

A2: We deliver precision hot-rolled and annealed plates with strict thickness tolerances conforming to tight metallurgical standards. In-house cutting options include CNC water-jet cutting, high-definition plasma cutting, and mechanical sawing, along with custom V-bevel or U-bevel edge preparation for automated heavy-tank welding.

Q3: Does Incoloy 825 plate require post-weld heat treatment (PWHT) when fabricating sulfuric acid tanks?

A3: Because Incoloy 825 is stabilized with titanium, it resists chromium carbide precipitation during welding. In most sulfuric acid tank fabrication applications, post-weld heat treatment is not required to maintain corrosion resistance, significantly lowering fabrication complexity and onsite labor costs.

Q4: What quality inspection documentation is provided with each shipment?

A4: Every shipment includes a comprehensive Manufacturer Test Certificate (MTC) detailing complete chemical composition (including Ti, Cu, Mo, Ni), tensile strength, yield strength, elongation, hardness values, and ultrasonic non-destructive testing reports.

Q5: What are the packaging and export protection standards for heavy industrial plates?

A5: All plates (4mm–40mm) are surface-protected with moisture-proof wrapping, reinforced with edge guards, and securely banded onto fumigated wooden skids or heavy-duty steel frames to prevent bending, scratching, or maritime corrosion during long-distance container transit.
