Sour Service Resistant Valve Shaft Incoloy 925 (Dia 30-150mm) for Subsea Valves

Engineered specifically for extreme subsea environments, our sour service resistant valve shaft in Incoloy 925 (UNS N09925) provides an unyielding barrier against hydrogen sulfide (H2S) stress corrosion cracking, chloride pitting, and ultra-high fluid pressures. Available in precision-machined diameters from 30mm to 150mm, each valve shaft undergoes rigorous internal vacuum induction melting, electroslag remelting, and two-stage precipitation heat treatment to ensure superior yield strength exceeding 760 MPa while maintaining exceptional subsea toughness.

Our sour service resistant valve shaft manufactured from age-hardenable Incoloy 925 alloy delivers unmatched reliability for severe offshore and deepwater valve systems. Designed to withstand lethal sour gas environments, high mechanical torque, and cyclic hydrostatic pressures, this shafting solution is the primary choice for critical subsea isolation, choke, ball, and control valves operating at depths down to 3,000 meters.

In severe offshore oil and gas production, valve stems and shafts are exposed to hostile combinations of wet hydrogen sulfide (H2S), carbon dioxide (CO2), high-concentration chlorides, and elemental sulfur. Standard austenitic or duplex stainless steels face catastrophic risk of sulfide stress cracking (SSC) and stress corrosion cracking (SCC).

The Incoloy 925 sour service resistant valve shaft solves this failure mode through a balanced nickel-iron-chromium matrix fortified with molybdenum, copper, titanium, and aluminum:

• 42%–46% High Nickel Content: Ensures absolute metallurgical immunity to chloride-induced stress corrosion cracking in deep-sea brine.
• Titanium & Aluminum Precipitation Hardening: Forms nanoscale gamma prime (γ′) strengthening phases during specialized aging cycles, providing double the yield strength of conventional solid-solution nickel alloys.
• Molybdenum & Copper Fortification: Yields an ultra-high Pitting Resistance Equivalent Number (PREN ≥ 30), resisting localized crevice corrosion beneath stem packings and seals.

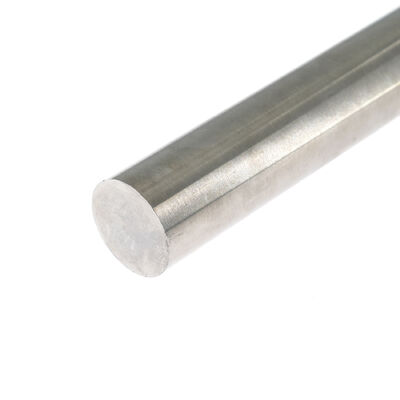

• Product Form: Hot Forged, Solution Annealed & Precipitation Aged Round Bar / Precision Centerless Ground Shaft
• Diameter Range: 30 mm – 150 mm (Custom OD forgings available upon drawing review)
• Length: Up to 6,000 mm (Precision straightness ≤ 0.5 mm/m)
• Dimensional Tolerance: Precision ground to Class h8, h9, or tailored ±0.02 mm CNC turning
• Internal Quality Level: 100% Volumetric Ultrasonic Immersion Tested with zero internal voids or inclusions
• Surface Finish: Smooth turned (Ra≤1.6 μm) or micro-polished for low-friction sealing (Ra≤0.4 μm)

Every sour service resistant valve shaft is thermally stabilized to eliminate grain boundary precipitation and micro-segregation. The micro-clean metallurgy prevents hydrogen embrittlement and catastrophic cracking in environments with high partial pressures of H2S and low pH levels.

Through calibrated solution treatment at 980∘C to 1040∘C followed by multi-stage aging, our Incoloy 925 shafts achieve high yield strength (≥760 MPa) and high tensile strength (≥1030 MPa), easily handling high-torque emergency shutdown (ESD) valve cycling under high differential pressures.

The synergistic balance of chromium (≥19.5%), molybdenum (≥2.5%), and copper (≥1.5%) prevents localized crevice attack in static elastomeric/PTFE stem packing zones and dynamic metal-to-metal secondary seal interfaces.

Manufactured with heavy-duty rotary forging and precision centerless grinding, each sour service resistant valve shaft exhibits minimal run-out, preventing eccentric wear on subsea valve actuator bearings and ensuring leak-free dynamic seal longevity.

Our Incoloy 925 shafts are widely adopted by global tier-1 valve manufacturers, subsea engineering contractors, and offshore EPCs across demanding installations:

• Subsea Christmas Tree & Manifold Valves: Critical valve stems for deepwater production manifolds, subsea injection trees, and flowline isolation valves.
• High-Pressure High-Temperature (HPHT) Choke Valves: Severe service throttling stems subject to high-velocity sour fluids, sand erosion, and extreme pressure drops.
• Subsea Emergency Shutdown (ESD) Ball & Gate Valves: Heavy-duty drive shafts transmitting extreme opening/closing torque under full differential pressure.
• Sour Gas Wellhead & Downhole Safety Valves (SSSV): Actuation rods and stems in high-H2S sour gas extraction wells.
• Offshore Topside & FPSO Process Valves: Critical piping isolation valve shafts handling untreated sour crude oil and produced water.

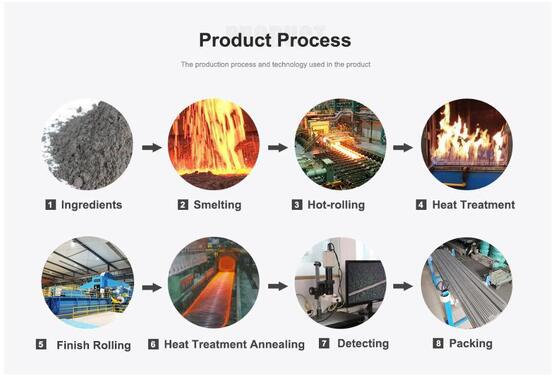

DLX controls the entire metallurgical chain from raw element selection to final precision finishing. Utilizing state-of-the-art Vacuum Induction Melting (VIM) coupled with secondary Electroslag Remelting (ESR), we eliminate non-metallic inclusions and chemical segregation, achieving gas content levels ([O]≤15 ppm, [N]≤40 ppm, [H]≤1.5 ppm).

Our in-house automated heat-treatment furnaces ensure uniform temperature control within ±3∘C. This guarantees uniform precipitation hardening across the entire cross-section of large-diameter shafts (up to 150 mm OD), eliminating soft cores or embrittled zones.

Every single sour service resistant valve shaft undergoes comprehensive quality verification prior to dispatch:

• 100% Full-Length Immersion Ultrasonic Testing (UT) for zero internal discontinuities.
• 100% Liquid Penetrant Inspection (PT) on finished surfaces.
• Direct-Reading Optical Emission Spectrometry (OES) for exact melt heat verification.
• Full Lot Mechanical & Impact Toughness Testing at sub-zero temperatures (−46∘C).

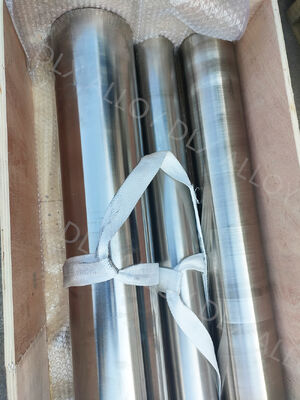

Operating with an integrated monthly specialty alloy capacity of 1,200 tons/month, DLX guarantees steady supply continuity for major subsea projects. We support custom batch orders, dynamic minimum order quantities (MOQ) tailored to project requirements, and customized seaworthy packaging for export.
