Age-Hardened Incoloy 925 Round Bar: High-Strength Alloy for Sour Gas Downhole Tools

Age-Hardened Incoloy 925 Round Bar (UNS N09925) is a high-performance precipitation-hardenable nickel-iron-chromium alloy bar engineered specifically for high-stress sour gas environments and deep downhole drilling tools. Available in precision-machined diameters from 25mm to 180mm, this age-hardened Incoloy 925 round bar combines the outstanding general corrosion and stress cracking resistance of nickel-chromium alloys with the exceptional mechanical strength achieved through titanium and aluminum aging. It provides superior reliability for valves, packers, mandrels, and high-pressure downhole completion equipment.

The Age-Hardened Incoloy 925 Round Bar is developed to bridge the critical gap between high-strength structural steels and ultra-corrosion-resistant specialty alloys. Through an optimized solution annealing and double aging precipitation treatment, intermetallic gamma-prime phase precipitates form evenly throughout the matrix, significantly boosting tensile and yield strength while preserving high ductility and impact toughness.

In deep oil and gas wells, high-pressure high-temperature (HPHT) reservoirs contain severe concentrations of hydrogen sulfide (H2S), carbon dioxide (CO2), and chloride-rich brine. Standard stainless steels quickly suffer from sulfide stress cracking (SSC) and chloride pitting. Our age-hardened Incoloy 925 round bar provides a protective passivation barrier and high molybdenum-copper synergy, ensuring dependable structural integrity for critical sub-surface wellbore components.

1. Exceptional Sulfide Stress Cracking Resistance: The high nickel content (42-46%) of the age-hardened Incoloy 925 round bar prevents chloride-induced stress corrosion cracking, while the balanced molybdenum and copper additions provide outstanding resistance to localized pitting and crevice corrosion in sour well environments containing high H2S and CO2 levels.

2. Precipitation-Hardened Mechanical Reliability: Unlike solid-solution alloys that depend solely on cold work for strength (which limits large bar diameters), our age-hardened Incoloy 925 round bar achieves uniform high yield strength up to 180mm diameter through precise thermal precipitation aging.

3. Superior Elevated-Temperature Stability: The microstructural stability of the age-hardened Incoloy 925 round bar ensures high fatigue strength and creep resistance under elevated downhole operating temperatures up to 260 deg C (500 deg F).

4. Excellent Machinability in Annealed Condition & Post-Aging Stability Bars can be purchased in the solution-treated state for easy high-speed machining, followed by aging, or supplied directly in the ready-to-machine age-hardened condition with minimal distortion.

Our Age-Hardened Incoloy 925 Round Bar is widely utilized across the global energy and marine sectors:

• Downhole Completion Tools: Safety valves, subsurface tubing hangers, gas lift mandrels, packers, polished bore receptacles (PBR), and bridge plugs.
• High-Pressure Fasteners and Shafts: High-strength sour-service studs, heavy-duty downhole fasteners, and drive shafts.
• Wellhead & Valve Trims: High-pressure valve stems, blowout preventer (BOP) internal components, chokes, and subsea manifold trims.
• Measurement While Drilling (MWD) & Logging Tools: Drill collar internal housings and telemetry instrument mandrels requiring high mechanical strength and non-magnetic stability.

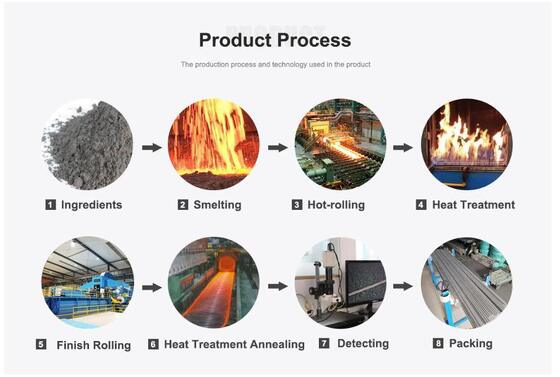

1. Integrated Melting and Precision Forging Capacity Operating state-of-the-art Vacuum Induction Melting (VIM) and Electro-Slag Remelting (ESR) furnaces, DLX Alloy produces ultra-clean nickel alloy ingots with minimal tramp elements and uniform grain structure. Our comprehensive monthly manufacturing capacity reaches 1,200 metric tons.

2. Strict Dimensional and Metallurgical Quality Control Every batch of age-hardened Incoloy 925 round bar undergoes rigorous microstructural analysis, 100% volumetric ultrasonic examination, and full-spectrum mechanical testing. We supply detailed Mill Inspection Certificates and traceability documentation with every shipment.

3. Flexible Dimensions & Tailored Commercial Terms From prototype trial lots to container-load supply chains, we provide customized bar lengths (up to 6 meters), custom turned diameters, custom heat treatment curves, and application-specific minimum order quantities (MOQ) based on product size and processing status.

 A1: The age-hardened Incoloy 925 round bar features high nickel, chromium, molybdenum, and copper chemistry that resists hydrogen sulfide embrittlement, chloride stress corrosion, and CO2 general corrosion. Its precipitation-hardened matrix ensures yield strengths exceeding 758 MPa without sacrificing toughness in severe downhole environments.

A2: The standard thermal cycle involves solution annealing at 980-1040 deg C followed by rapid cooling (water quench or air cool), then a primary aging stage at 730 deg C for 8 hours, controlled furnace cooling to 620 deg C, and holding for an additional 8 hours before final air cooling.

 A3: Yes. In addition to black forged and peeled finishes, we provide precision turned and centerless ground round bars with tight diameter tolerances (such as h9, h10, h11) and surface roughness values down to Ra 0.8 um, ready for direct CNC machining into downhole tools.

A4: MOQ is dynamically structured according to the bar diameter, heat treatment state, and surface finish. Standard stocked diameters can be dispatched rapidly, while custom melted and forged dimensions feature efficient mill production cycles backed by our 1,200 tons/month total capacity. Contact our technical sales engineering team for specific batch scheduling.
