Ultra High Temperature Seamless Cold Drawn Incoloy 800HT Boiler Tube with High Creep Rupture Strength for Thermal Power Generation

Changzhou DLX Alloy manufactures premium Incoloy 800HT alloy tubing engineered specifically for ultra high temperature boiler systems and high-pressure thermal power generation. Designed to withstand continuous thermal exposure exceeding 600°C (1100°F), these tubes deliver exceptional creep-rupture strength, microstructural stability, and superior resistance to high-temperature oxidation and carburization across OD dimensions from 38mm to 89mm.

In modern thermal power generation and supercritical boiler engineering, heat transfer components operate under extreme combinations of thermal stress, internal steam pressure, and corrosive flue gas environments. Standard stainless steels often suffer from premature creep deformation, grain boundary degradation, and high-temperature stress corrosion cracking.

The Incoloy 800HT ultra high temperature boiler tube by DLX Alloy is a modified nickel-iron-chromium solid-solution strengthened alloy. Through optimized chemical formulation—specifically controlled carbon, aluminum, and titanium ratios combined with specialized high-temperature solution annealing—the alloy maintains a stabilized coarse-grain microstructure. This metallurgical precision ensures maximum long-term creep-rupture strength, dimensional stability, and prolonged service life in power plant superheaters, reheaters, and main steam transmission pipelines.

Incoloy 800HT boiler tubes undergo high-temperature solution heat treatment to establish an engineered coarse-grain matrix. This controlled grain boundary morphology delivers superior resistance to stress rupture and plastic deformation under sustained mechanical loads at operating temperatures beyond 600°C, outperforming standard 800-series grades.

With a balanced 30-35% nickel and 19-23% chromium composition, the tubing forms a resilient, self-healing chromium oxide protective layer. This barrier provides robust defense against high-temperature flue gas oxidation, sulfidation, and cyclic thermal carburization, preventing inner wall scaling and wall-thinning in high-pressure steam boilers.

Repeated thermal cycling in thermal power generation can induce phase embrittlement in lesser alloys. Incoloy 800HT maintains phase stability without harmful sigma-phase precipitation during prolonged thermal exposure, ensuring metallurgical ductility, impact toughness, and mechanical integrity during peak-load thermal fluctuations.

Manufactured with cold-drawing and cold-pilgering processes, DLX Incoloy 800HT tubes feature tight wall thickness concentricity and precise outer diameter tolerances (OD 38mm-89mm). The alloy exhibits weldability with standard nickel-base welding wire, ensuring crack-resistant joints in complex boiler tube bundles and header assemblies.

Installed in supercritical and ultra-supercritical coal-fired, gas-fired, and biomass power boilers, serving as critical heat-exchange conduits where high-pressure steam reaches maximum temperature thresholds.

Utilized in high-temperature pigtail pipes, catalyst tubes, and convection section piping within hydrocarbon processing plants requiring structural endurance against carburizing atmospheres.

Serving in combined cycle gas turbine (CCGT) recovery units to transfer extreme exhaust heat into high-pressure steam without thermal fatigue failure.

Providing extended operational life in aggressive combustion zones where elevated flue gas temperatures and corrosive ash particulates degrade conventional tubing.

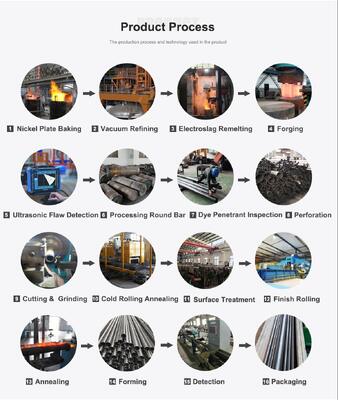

1. Full-Chain Metallurgical Manufacturing: From Vacuum Induction Melting (VIM) and Electroslag Remelting (ESR) to hot extrusion, cold pilgering, and bright annealing, DLX maintains 100% in-house quality control.
2. Robust Production Capacity: Backed by a monthly production capacity of 1,200 metric tons, ensuring fast lead times for both emergency power plant retrofits and large-scale EPC construction projects.
3. Zero-Defect Quality Assurance: Every tube undergoes 100% Non-Destructive Testing (NDT), including Eddy Current, Ultrasonic, Hydrostatic pressure testing, and complete chemical composition verification.
4. Tailored Engineering Solutions: Flexible manufacturing capability across OD 38mm-89mm with customized wall thicknesses, pre-bent U-tubes, and specialized bevelling preparations for direct on-site orbital welding.

A: Incoloy 800HT features tightly restricted chemistry limits (specifically controlled carbon content of 0.06–0.10% and combined aluminum plus titanium of 0.85–1.20%), coupled with high-temperature solution annealing. This specific metallurgical configuration maximizes creep and stress-rupture resistance in ultra high temperature service above 600°C (1100°F).

A: DLX supplies Incoloy 800HT tubes in outer diameters ranging from 38mm to 89mm, with wall thicknesses spanning 2.5mm to 12.0mm. Custom dimensions, metric or imperial gauges, and fixed lengths up to 18 meters can be precision-manufactured according to your engineering drawings.

A: Every single production batch is subject to rigorous testing: 100% Eddy Current testing, full hydrostatic pressure verification, ultrasonic inspection for internal defects, dimensional laser verification, and microstructural grain size analysis. Complete Material Test Certificates with full heat trace numbers are supplied with all shipments.

A: We provide project-based dynamic MOQ tailored to tube OD, wall thickness, and engineering requirements. Standard production runs typically deliver within 15 to 30 working days, with expedited scheduling available for urgent boiler maintenance shutdowns.
