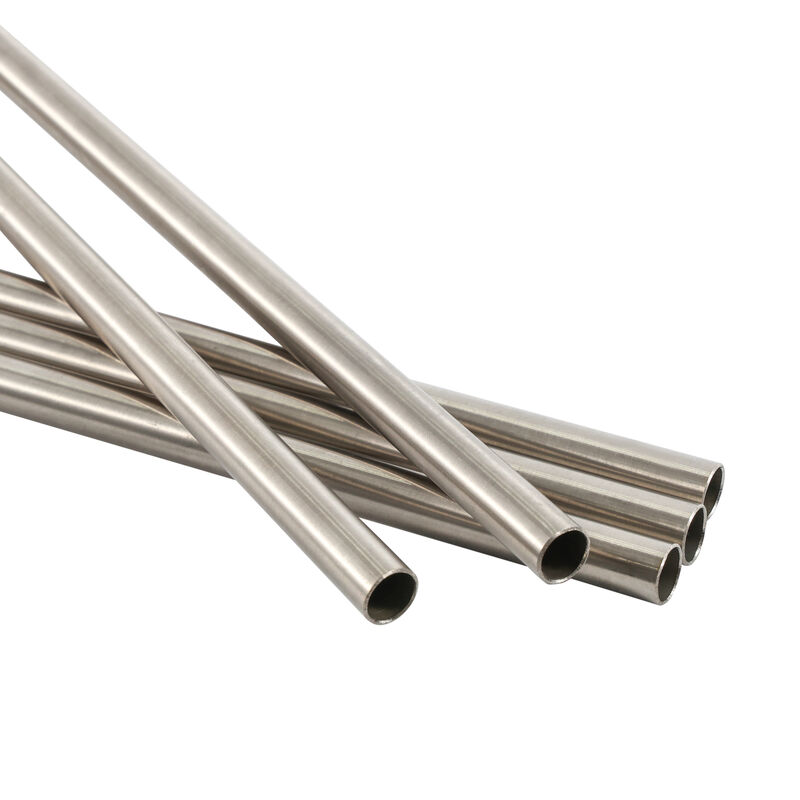

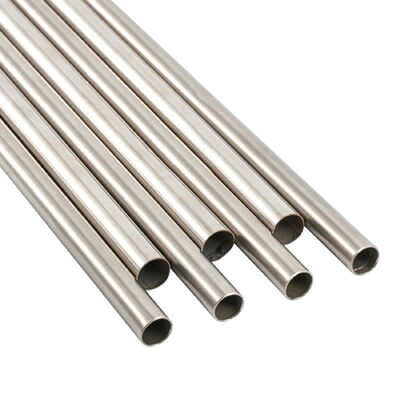

Creep Resistant Incoloy 800H Furnace Tube OD 25-114mm for Ethylene Cracking

Engineered for severe petrochemical pyrolysis, our Creep Resistant Furnace Tube Incoloy 800H (OD 25mm-114mm) offers exceptional 100,000-hour stress-rupture strength, high-temperature oxidation resistance, and anti-carburization durability for continuous ethylene cracking operations.

In petrochemical ethylene cracking operations, furnace coils are subjected to intense thermal stress, cyclical mechanical loads, and aggressive carbon-rich atmospheres. The Creep Resistant Furnace Tube Incoloy 800H addresses these severe service environments through precision chemical formulation—combining 30-35% nickel and 19-23% chromium with dedicated carbon (0.05-0.10%) and aluminum-plus-titanium additions (0.85-1.20%). This micro-alloying chemistry forms stable internal carbides and gamma prime intermetallics that effectively pin grain boundaries, resisting micro-void coalescence and plastic deformation at operating temperatures exceeding 900°C to 1050°C.

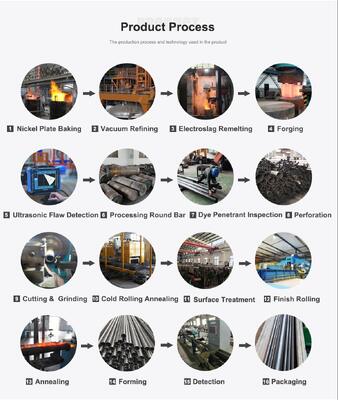

Manufactured via vacuum induction melting (VIM) followed by electroslag remelting (ESR) and precision cold pilgering/extrusion, our Creep Resistant Furnace Tube Incoloy 800H achieves near-zero non-metallic inclusions and ultra-tight wall thickness concentricity. The inner surface is precision-honed and passivated to minimize coke deposition rates, thereby extending continuous decoking intervals, reducing localized hot spots, and significantly increasing petrochemical plant throughput.

• Core Advantage: Engineered coarse-grain austenitic structure via high-temperature solution annealing.
• Performance: Delivers superior 100,000-hour stress-rupture endurance at 850°C–1050°C, preventing thermal fatigue failure in continuous ethylene cracking operations.

• Protective Barrier: Continuous, self-healing chromium-aluminum oxide film on inner tube walls.
• Durability: Inhibits carbon diffusion and localized embrittlement, easily withstanding repeated steam-air decoking cycles without spalling.

• Fabrication Integrity: Optimized alloy chemistry minimizes hot-cracking in the heat-affected zone (HAZ).
• Reliability: Fully compatible with GTAW and pulsed GMAW using matching nickel-base fillers for defect-free return bend joints.

• Coke Inhibition: High-precision cold pilgering and specialized bore passivation ensure ultra-smooth internal surfaces.
• Efficiency: Lowers hydrocarbon coke deposition rates, prolongs furnace run lengths, and reduces energy consumption.

The Creep Resistant Furnace Tube Incoloy 800H serves as the critical radiant coil component in world-scale naphtha, ethane, and propane steam cracking units, withstanding flue gas temperatures up to 1100°C while maintaining continuous hydrocarbon feedstock conversion.

In hydrogen generation, ammonia synthesis, and methanol production facilities, our Creep Resistant Furnace Tube Incoloy 800H is widely specified for catalyst-containing reformer pigtails, outlet manifolds, and radiant transfer lines operating under combined high pressure and thermal cycling.

Beyond petrochemical cracking, the Creep Resistant Furnace Tube Incoloy 800H delivers dependable service life in vacuum furnace radiant tubes, industrial gas carburizing retorts, continuous wire annealing muffle tubes, and ore roasting kiln components.

Leveraging its outstanding resistance to chloride-ion stress corrosion cracking and high-pressure steam oxidation, this alloy tubing is engineered for heat exchanger bundles in advanced high-temperature gas-cooled reactors and supercritical thermal power boilers.

• Full-Chain Control: Integrated VIM melting, hot extrusion, precision cold-rolling, and bright annealing lines.
• Supply Assurance: Consistent large-batch delivery and shortened lead times for petrochemical plant revamps and mega-cracker projects.

• 100% Non-Destructive Testing: Full-body Ultrasonic (UT), Eddy Current (ET), and Hydrostatic testing for every tube.
• Positive Material Identification: Direct optical emission PMI and high-temperature rupture validation prior to dispatch.

• Tailored Processing: Tight-radius U-bending, serpentine coil pre-assembly, precision end-beveling for orbital welding.
• Custom Tolerances: Engineered outer diameter (OD 25–114mm) and wall profiles to match proprietary cracking furnace blueprints.

• Chemistry Control: Tight carbon range (0.05%–0.10%) combined with titanium and aluminum additions (0.85%–1.20%).
• Thermal Treatment: High-temperature solution annealing (≥ 1150°C) produces a stable, coarse-grain austenitic structure that locks grain boundaries and halts dislocation creep up to 1050°C.

• Protective Film: High nickel (30%–35%) and chromium (19%–23%) content forms a dense, self-healing chromia oxide layer on the inner bore.
• Diffusion Barrier: Effectively blocks carbon ingress and chromium depletion during continuous pyrolysis and cyclic steam-air decoking.

• 100% Non-Destructive Testing: Full-length Ultrasonic Testing (UT), Eddy Current (ET), and Hydrostatic pressure verification.
• Material Integrity: Spectral PMI chemical confirmation, grain size analysis, and lot-specific elevated-temperature stress-rupture validation.

• Process & Consumables: GTAW or pulsed GMAW using matching high-carbon nickel-base welding filler wire.
• Heat & Gas Control: Keep interpass temperature ≤ 150°C with 99.999% high-purity Argon root backing to ensure full penetration without hot-cracking.
