Oxidation Resistance Ni90Cr10 Nickel Alloy Wire For Thermocouple

Name: Oxidation Resistance Ni90Cr10 Nickel Alloy Wire For Thermocouple
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: Ni90Cr10
Price: 35.00 USD
Availability: InStock

Brand Name:	DLX
Model Number:	Ni90Cr10
MOQ:	5
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China Jiangsu

Certification:

CE,ROHS

Material:

Nickel, Chromium

Nickel(Min):

89%

Resistivity:

0.78+/-0.05

Tensile Strength:

637MPA

Elongtation:

≥20%

Application:

Heating, Resistivity

Condition:

Hard / Soft

Sureface:

Bright, Oxided, Acide

Delivery Time:

7-20 Days

Name:

Resistance Heating Wire

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

500 tons per month

Highlight:

Oxidation Resistance Ni90Cr10 Nickel Alloy Wire

Thermocouple Ni90Cr10 Nickel Alloy Wire

Thermocouple Nickel Alloy Wire

Product Description

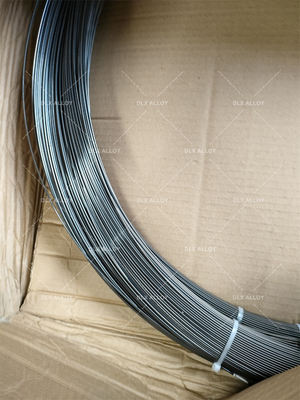

Oxidation Resistance Ni90Cr10 Nickel Alloy Wire For Thermocouple 0

Ni90Cr10 Heating Resistance Wire

Ni90Cr10 is kind of nickel-chromium alloy products, it is suitable for temperature applications up to 1250°C. Chromium content provides very good life time, it is usually used as a vape heating element.
Ni90Cr10 is characterized by high resistivity, good oxidation resistance, good ductility after use and excellent weldability. NiCr Alloy is a good material for heating industry.

Thermocouple Element

Ni90Cr10 resistance wire is employed as the sensitive part of the thermocouple, forming a thermocouple with another metal (such as platinum-rhodium alloy). When the temperature changes, the thermoelectric potential difference between the different metals alters, generating a voltage signal that reflects the temperature variation.

High-Temperature Measurement

The application of Ni90Cr10 resistance wire in thermocouple protection tubes enables temperature measurement in high-temperature environments. Due to its high-temperature resistance and stable resistance-temperature characteristics, thermocouples can accurately measure temperatures at high levels, typically ranging from hundreds to thousands of degrees Celsius.

Chemical Inertness

Ni90Cr10 resistance wire exhibits good chemical inertness, able to withstand corrosion and erosion from many chemical environments, thus protecting the thermocouple element from damage and extending its service life.

Industrial Applications

Ni90Cr10 resistance wire thermocouple protection tubes are widely used in high-temperature measurement and control processes in industrial production, such as steelmaking, chemical production, and high-temperature furnace refining.

Nickel-chromium alloy performance tables

Performance material		Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composition	Ni	90	Rest	Rest	55.0～61.0	34.0～37.0	30.0～34.0
	Cr	10	20.0～23.0	28.0～31.0	15.0～18.0	18.0～21.0	18.0～21.0
	Fe	--	≤1.0	≤1.0	Rest	Rest	Rest
Maximum temperature℃		1300	1200	1250	1150	1100	1100
Meltiing point ℃		1400	1400	1380	1390	1390	1390
Density g/cm3		8.7	8.4	8.1	8.2	7.9	7.9
Resistivity		--	1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
μΩ·m,20℃
Elongation at rupture		≥20	≥20	≥20	≥20	≥20	≥20
Specific heat		--	0.44	0.461	0.494	0.5	0.5
J/g.℃
Thermal conductivity		--	60.3	45.2	45.2	43.8	43.8
KJ/m.h℃
Coefficient of lines expansion		--	18	17	17	19	19
a×10-6/
(20～1000℃)
Micrographic structure		--	Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic properties		--	Nonmagnetic	Nonmagnetic	Nonmagnetic	Weak magnetic	Weak magnetic

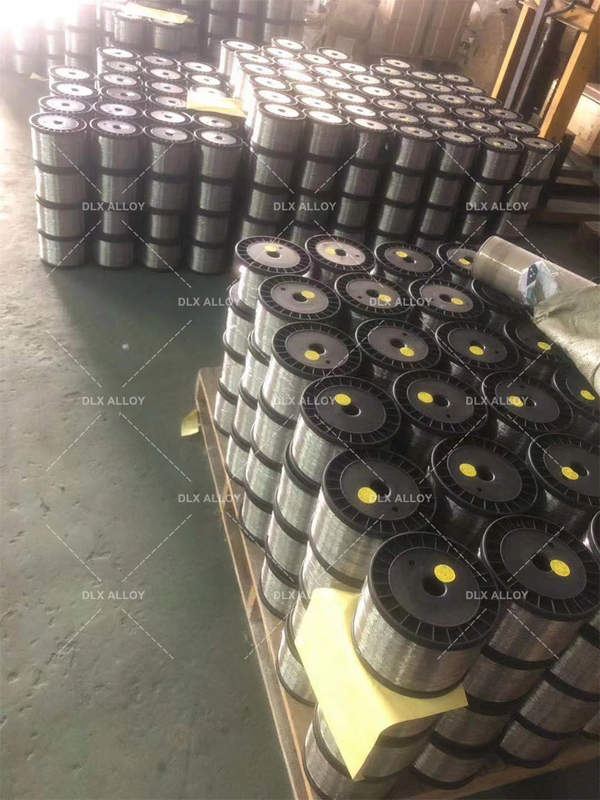

Oxidation Resistance Ni90Cr10 Nickel Alloy Wire For Thermocouple 1

The Form we could offer

Size Range
Wire	dia 0.03-7.5mm
	dia 8.0-12.0mm
Ribbon	(0.05-0.35)*(0.5-6.0)mm

Strip	(0.50-2.5)*(5-180)mm

Rod	8-50mm
