Nichrome 90 Resistance Alloy Ni90cr10 Ni90 Heating Wire For Resistance Heaters

Name: Nichrome 90 Resistance Alloy Ni90cr10 Ni90 Heating Wire For Resistance Heaters
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: Ni90Cr10
Price: 35.00 USD
Availability: InStock

Brand Name:	DLX
Model Number:	Ni90Cr10
MOQ:	5
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China Jiangsu

Certification:

CE,ROHS

Material:

Nickel, Chromium

Nickel(Min):

89%

Resistivity:

0.78+/-0.05

Tensile Strength:

637MPA

Elongtation:

≥20%

Application:

Heating, Resistivity

Condition:

Hard / Soft

Sureface:

Bright, Oxided, Acide

Delivery Time:

7-20 Days

Name:

Resistance Heating Wire

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

500 tons per month

Highlight:

Ni90cr10 Ni90 Heating Wire

Resistance Alloy Ni90 Heating Wire

Resistance Heaters Ni90 Heating Wire

Product Description

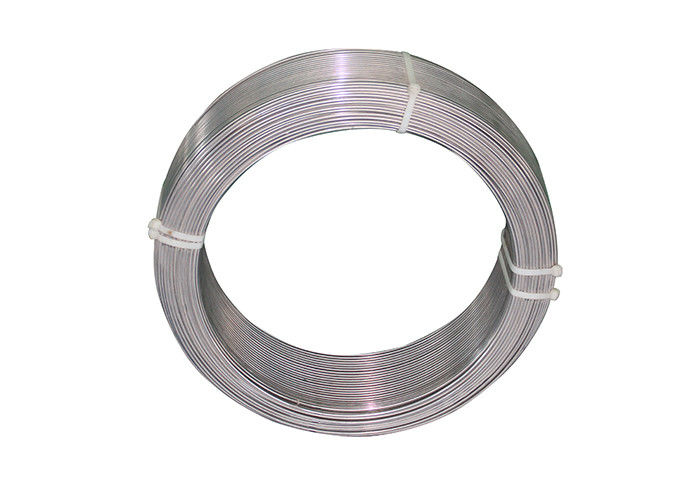

Nichrome 90 Resistance Alloy Ni90cr10 Ni90 Heating Wire For Resistance Heaters 0

Ni90Cr10 Heating Resistance Wire

Ni90Cr10 is kind of nickel-chromium alloy products, it is suitable for temperature applications up to 1250°C. Chromium content provides very good life time, it is usually used as a vape heating element.
Ni90Cr10 is characterized by high resistivity, good oxidation resistance, good ductility after use and excellent weldability. NiCr Alloy is a good material for heating industry.

Heater Elements

Ni90Cr10 resistance wire serves as the core material in resistance heaters, used to manufacture heating elements such as heating coils, heating rods, or heating plates. These elements generate heat by passing current through the resistance wire, converting energy into heat for heating air, liquids, or solids.

Industrial Heating Applications

Ni90Cr10 resistance wire is extensively used in industrial heating processes such as metal melting, plastic heating, or other industrial heating applications. Its high temperature stability and adjustable resistance characteristics make it an ideal choice for various heating equipment.

High-Temperature Environments

Due to its excellent high temperature stability, Ni90Cr10 resistance wire provides reliable heating in environments requiring high temperature heating, such as high-temperature furnaces, heat treatment equipment, or smelting processes.

Household Appliances

Ni90Cr10 resistance wire is also widely used in resistance heaters in household appliances such as ovens, toasters, electric kettles, etc. They provide fast and uniform heating of food or liquids, offering convenient home heating solutions.

Nickel-chromium alloy performance tables

Performance material		Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composition	Ni	90	Rest	Rest	55.0～61.0	34.0～37.0	30.0～34.0
	Cr	10	20.0～23.0	28.0～31.0	15.0～18.0	18.0～21.0	18.0～21.0
	Fe	--	≤1.0	≤1.0	Rest	Rest	Rest
Maximum temperature℃		1300	1200	1250	1150	1100	1100
Meltiing point ℃		1400	1400	1380	1390	1390	1390
Density g/cm3		8.7	8.4	8.1	8.2	7.9	7.9
Resistivity		--	1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
μΩ·m,20℃
Elongation at rupture		≥20	≥20	≥20	≥20	≥20	≥20
Specific heat		--	0.44	0.461	0.494	0.5	0.5
J/g.℃
Thermal conductivity		--	60.3	45.2	45.2	43.8	43.8
KJ/m.h℃
Coefficient of lines expansion		--	18	17	17	19	19
a×10-6/
(20～1000℃)
Micrographic structure		--	Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic properties		--	Nonmagnetic	Nonmagnetic	Nonmagnetic	Weak magnetic	Weak magnetic

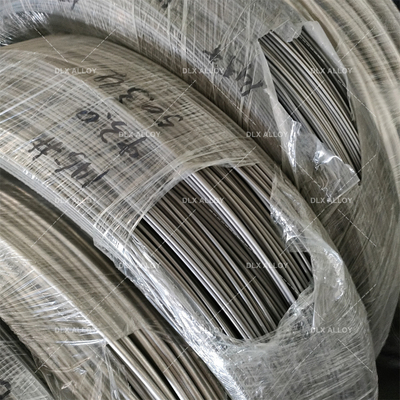

Nichrome 90 Resistance Alloy Ni90cr10 Ni90 Heating Wire For Resistance Heaters 1

The Form we could offer

Size Range
Wire	dia 0.03-7.5mm
	dia 8.0-12.0mm
Ribbon	(0.05-0.35)*(0.5-6.0)mm

Strip	(0.50-2.5)*(5-180)mm

Rod	8-50mm
