Custom Size 1mm Nicr80/20 Cr20ni80 Nichrome Heating Wire Used In Laboratory And Scientific Research

Custom Size 1mm Nicr80/20 Cr20ni80 Nichrome Heating Wire Used In Laboratory And Scientific Research

Brand Name:	DLX
Model Number:	Ni80Cr20
MOQ:	5
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China Jiangsu

Certification:

CE,ROHS

Material:

Nickel, Chromium

Nickel(Min):

76%

Resistivity:

1.09+/-0.05

Tensile Strength:

637MPA

Elongtation:

≥20%

Application:

Heating, Resistivity

Condition:

Hard / Soft

Sureface:

Bright, Oxided, Acide

Delivery Time:

7-20 Days

Name:

Resistance Heating Wire

Packaging Details:

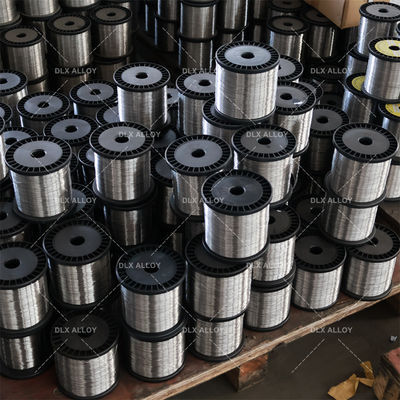

Spool package with Carton box, Coil package with polybag

Supply Ability:

500 tons per month

Highlight:

Laboratory Nichrome Heating Wire

Cr20ni80 Nichrome Heating Wire

1mm Nichrome Heating Wire

Product Description

Custom Size 1mm Nicr80/20 Cr20ni80 Nichrome Heating Wire Used In Laboratory And Scientific Research 0

Cr20ni80 Heating Resistance Wire

In resistance heaters, Cr20Ni80 resistance wire is a commonly used heating element material. It is composed of 20% chromium and 80% nickel, with excellent electrical resistance characteristics and high temperature stability, suitable for various heating applications.

Applications in Laboratory and Scientific Research

1. Resistance Heaters: Cr20Ni80 resistance wire is commonly used in laboratory resistance heaters to heat laboratory equipment, samples, or reaction vessels, providing precise temperature control for various experiments.
2. Heating Elements in Vacuum Furnaces: Due to its excellent high-temperature stability, Cr20Ni80 resistance wire is often used as heating elements in vacuum furnaces for high-temperature experiments and materials processing in laboratories.
3. Thermocouples: Cr20Ni80 resistance wire can also be used as one of the thermal sensing elements in thermocouples, used for measuring temperature and temperature changes, which are crucial for temperature monitoring and control in laboratory settings.

4. Material Performance Testing: In scientific research, Cr20Ni80 resistance wire can be used as part of material performance testing to assess thermal properties such as thermal conductivity, coefficient of thermal expansion, and other thermal characteristics.

Nickel-chromium alloy performance tables

Performance material		Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composition	Ni	90	Rest	Rest	55.0～61.0	34.0～37.0	30.0～34.0
	Cr	10	20.0～23.0	28.0～31.0	15.0～18.0	18.0～21.0	18.0～21.0
	Fe	--	≤1.0	≤1.0	Rest	Rest	Rest
Maximum temperature℃		1300	1200	1250	1150	1100	1100
Meltiing point ℃		1400	1400	1380	1390	1390	1390
Density g/cm3		8.7	8.4	8.1	8.2	7.9	7.9
Resistivity		--	1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
μΩ·m,20℃
Elongation at rupture		≥20	≥20	≥20	≥20	≥20	≥20
Specific heat		--	0.44	0.461	0.494	0.5	0.5
J/g.℃
Thermal conductivity		--	60.3	45.2	45.2	43.8	43.8
KJ/m.h℃
Coefficient of lines expansion		--	18	17	17	19	19
a×10-6/
(20～1000℃)
Micrographic structure		--	Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic properties		--	Nonmagnetic	Nonmagnetic	Nonmagnetic	Weak magnetic	Weak magnetic

Custom Size 1mm Nicr80/20 Cr20ni80 Nichrome Heating Wire Used In Laboratory And Scientific Research 1

The Form we could offer

Size Range
Wire	dia 0.03-7.5mm
	dia 8.0-12.0mm
Ribbon	(0.05-0.35)*(0.5-6.0)mm

Strip	(0.50-2.5)*(5-180)mm

Rod	8-50mm
