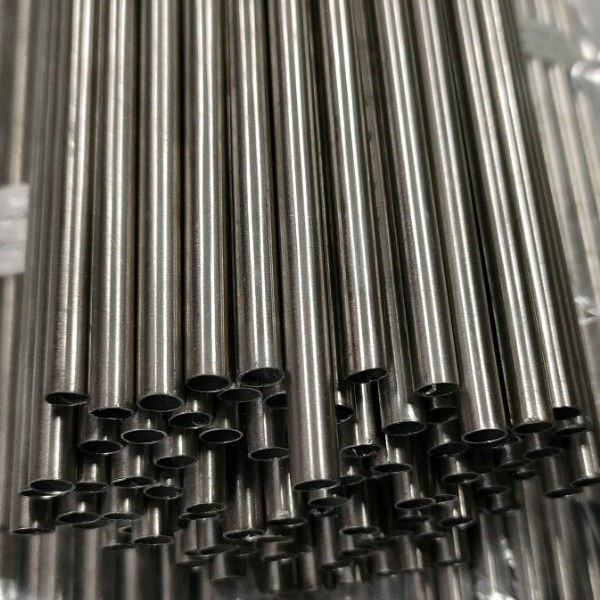

10mm 20mm 40mm 50mm 60mm 80mm Incoloy 600 601 625 825 Monel 400 K500 Nickel Based Alloy Tube

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: incoloy 825

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: wooden case, woven polybag

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Incoloy 625 Nickel Alloy Tube

,

50mm Nickel Based Alloy Tube

,

80mm Nickel Based Alloy Tube

Material:
Ni Fe Cr Mo
Nickel(Min):
38-46%
Coefficient Of Expansion:
14.0 μm/m °C (20 – 100°C)
Modulus Of Rigidity:
75.9 KN/mm²
Density:
8.14 G/cm³
Modulus Of Elasticity:
196 KN/mm²
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Melting Point:
1400°C
Elongation:
30 %
Material:
Ni Fe Cr Mo
Nickel(Min):
38-46%
Coefficient Of Expansion:
14.0 μm/m °C (20 – 100°C)
Modulus Of Rigidity:
75.9 KN/mm²
Density:
8.14 G/cm³
Modulus Of Elasticity:
196 KN/mm²
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Melting Point:
1400°C
Elongation:
30 %
Description
10mm 20mm 40mm 50mm 60mm 80mm Incoloy 600 601 625 825 Monel 400 K500 Nickel Based Alloy Tube

10mm 20mm 40mm 50mm 60mm 80mm Incoloy 600 601 625 825 Monel 400 K500 Nickel Based Alloy Tube 0


10mm 20mm 40mm 50mm 60mm 80mm Incoloy 600 601 625 825 Monel 400 K500 Nickel Based Alloy Tube 1


  • Inconel Alloy Series

Nickel-based alloy pipes, as the name suggests, are alloys formed by using nickel as the main component and adding other elements such as chromium, molybdenum, copper, niobium, titanium, aluminum, etc. Its most outstanding feature is that it has excellent corrosion resistance, wear resistance and high temperature resistance in the environment of high temperature, high pressure and corrosive medium. This is also the reason why it is widely used in aviation, aerospace, nuclear industry, petrochemical industry and other fields. The production process of nickel-based alloy pipes is complex and demanding. From the selection and proportion of raw materials, to smelting, rolling, heat treatment and other processes, each step of the process needs to be precisely controlled to ensure the performance of the alloy. At present, China has made a major breakthrough in the production technology of nickel-based alloy pipes, and the nickel-based alloy pipes produced have stable performance and high quality, which can meet the needs of major fields.

Features:
1. Good stress corrosion cracking resistance performance
2. Good resistance for pitting and crevice corrosion performance
3. Good anti-oxidation and non-oxidzing heat acid performance
4. Good mechanical performance in both room temperature and up to 550°C
5. Have the pressure vessel authenticate when manufacture temperature up to 450°C


Applications:
Incoloy 825 Alloy widely use in many kinds of industry field that the working temperature no more than 550°C
1. Sulfuric acid factory usage for heating pipe, container, basket,chain and so on
2. Cooling heat exchanger, marine product pipeline system and gas pipeline of acidic environment
3. Heat exchanger, steam machine, washing, impregnation pipe, etc. for phosphoric acid produce
4. Oil refining in the air heat exchanger
5. Food project
6. Chemical process
7. Application of high pressure oxygen flam-retardant alloy




  • Chemical Properties of Incoloy 825 Alloy

Chemical Composition (%)
C
Si
Mn
S
Mo
Ti
Cr
Ni
Fe
Cu
≤0.05
≤0.50
≤1.00
≤0.03
≤2.5~3.5
≤0.6~1.2
19.5~23.5
38.0~46.0
≥22.0
1.5~3.0
Standard
Sheet/Plate
Round bar/Wire
Pipe
Tube
ASME SB-424
ASME SB-906
ASME SB-425
ASME SB-423
ASME SB-829
ASME SB-163
ASME SB-751
ASME SB-775
ASME SB-704
ASME SB-705
ASME SB-751
ASME SB-775
Mechanical Properties
Status
Tensile Strength
(Rm N/mm2)
Yield strength
(RP0.2N/mm2)
Elongation(A5%)
HB
Solution treatment
550
220
30
≤200
Incoloy 825 (NS142) similiaer trademark
UNS
Trademark
JIS
W.Nr
N08825
Incoloy825
NCF825
2.4858

  • Applications of Incoloy 825 Alloy

    Typical Applications of Incoloy Alloy 825 include:

  • Sulphuric acid piping and vessels
  • Phosphoric acid evaporators
  • Pickling tank heaters, pickling tanks and equipment
  • Chemical process equipment
  • Propellor shafts
  • Tank trucks
  • Calorifiers
  • Electrostatic precipitator electrodes
  • Hot vessels for food, water and seawater,
  • Ammonium sulphate vessels
  • Expansion bellows
  • Marine exhaust systems
  • Power station ash hoppers

Incoloy alloy   Incoloy alloy  Incoloy alloy   Incoloy alloy   Incoloy alloy


  • ASM specifications for Incoloy Alloy 825.
  • Specification Title
    B163 Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes
    B423 Nickel-Iron-Chromium-Molybdenum-Copper Alloy (UNS N08825 and N08221)* Seamless Pipe and Tube
    B424 Ni-Fe-Cr-Mo-Cu Alloy (UNS N08825 and UNS N08221)* Plate, Sheet, and Strip
    B425 Ni-Fe-Cr-Mo-Cu Alloy (UNS N08825)
    B704 Welded UNS N06625 and UNS N08825 Alloy Tubes
    B705 Nickel-Alloy (UNS N06625 and N08825) Welded Pipe
    B751 General Requirements for Nickel and Nickel Alloy Welded Tube



10mm 20mm 40mm 50mm 60mm 80mm Incoloy 600 601 625 825 Monel 400 K500 Nickel Based Alloy Tube 210mm 20mm 40mm 50mm 60mm 80mm Incoloy 600 601 625 825 Monel 400 K500 Nickel Based Alloy Tube 310mm 20mm 40mm 50mm 60mm 80mm Incoloy 600 601 625 825 Monel 400 K500 Nickel Based Alloy Tube 4
