Creep Resistance Antioxidant Inconel X750 Wire For Chemical Industry

Creep Resistance Antioxidant Inconel X750 Wire For Chemical Industry

Brand Name: DLX
Model Number: Inconel X-750 wire
MOQ: 5
Price: $30-$50
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per month
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE,ROHS
Material:
Ni Cr Ti
Nickel(Min):
70%
Magnetic Permeability:
1.0035
Curie Temperature:
-125 °C
Density:
8.28 G/cm3
CTE, Linear 20°C:
12.6 µm/m-°C
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Tensile Strength:
760-1600MPA
Melting Point:
1390 - 1430℃
Specific Heat Capacity:
0.431 J/g-°C
Thermal Conductivity:
12 W/m-K
Elongation:
30 %
Name:
Inconel X750 Wire
Packaging Details:
Spool package with Carton box, Coil package with polybag
Supply Ability:
500 tons per month
Highlight:

Antioxidant Inconel X750 Wire

,

Chemical Industry Inconel X750 Wire

,

Creep Resistance Inconel Alloy

Product Description

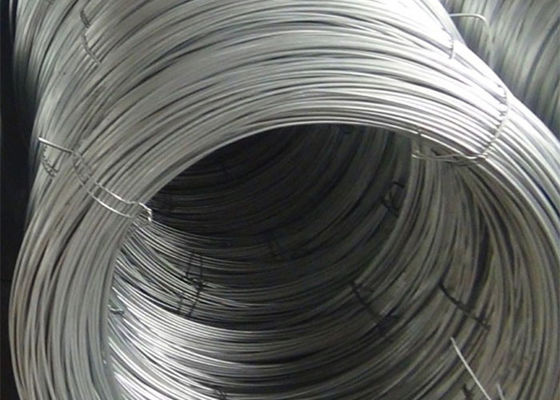

Creep Resistance Antioxidant Inconel X750 Wire For Chemical Industry 0




  • Inconel Series

Due to its excellent corrosion resistance and high-temperature strength, Inconel X-750 alloy is widely used in aerospace, petrochemical, energy and other fields. In the aerospace field, Inconel X-750 alloy is used to manufacture components for aircraft and rocket engines, such as turbine discs, blades, etc. In the field of petrochemicals, Inconel X-750 alloy is used to manufacture equipment such as furnace tubes and heat exchangers for petroleum cracking furnaces. In the energy field, Inconel X-750 alloy is used to manufacture key components in nuclear reactors, such as control rods, guide tubes, etc.

Product features:

1. Corrosion resistance: Inconel X-750 alloy has excellent corrosion resistance, especially in high temperature environments. This is mainly due to the formation of a stable oxide film on its surface, which can effectively prevent the contact between the corrosive medium and the substrate.

2. High temperature strength: Inconel X-750 alloy can still maintain high strength and hardness at high temperatures, which makes it have good mechanical properties in high-temperature environments.

3. Good welding performance: Inconel X-750 alloy has good welding performance and can be connected through various welding processes, such as tungsten inert gas arc welding, laser welding, etc.

4. Good processing performance: Inconel X-750 alloy can be processed through various processing techniques, such as cutting, bending, drilling, etc.


  • Chemical Properties of Inconel X750

Element Ni +Co Cr Nb Ti C Mn Si Cu Al S Iron
Chemical Composition (%)

70% Min

14%-

17%

0.7%-

1.2%

2.25%-

2.75%

0.08% max 1% max 0.5% max 0.30% max 0.4%-1.0% 0.01% max 5%-9%

  • Application

1. Aerospace field

Due to its high temperature characteristics and excellent oxidation resistance, Inconel X-750 is widely used in the aerospace field. In aviation engines, Inconel X-750 is commonly used to manufacture key components such as blades, vortices, and nozzles to improve engine performance and reliability.



2. Chemical industry

Inconel X-750 is widely used in the chemical industry due to its corrosion and creep resistance. It can be used to manufacture important equipment such as chemical reactors, catalyst carriers, and heat transfer equipment for corrosive media, ensuring the safety and stable operation of the chemical industry.



3. Energy sector

In the energy field, Inconel X-750 is often used to manufacture nuclear fuel pipelines in nuclear power plants, structural components in nuclear reactors, and high-temperature components in gas turbines. Its excellent high-temperature performance and creep resistance ensure the efficient and stable operation of nuclear and gas energy.



4. Automotive industry

Due to its high strength and antioxidant properties, Inconel X-750 is also widely used in the automotive industry. For example, in the exhaust system of car engines, the high temperature resistance of Inconel X-750 makes it an ideal material choice, improving the emission control and performance of the car.


,Type we could offer

AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape
AMS 5699 wire Inconel X750 Nickel N07750                                          Wire

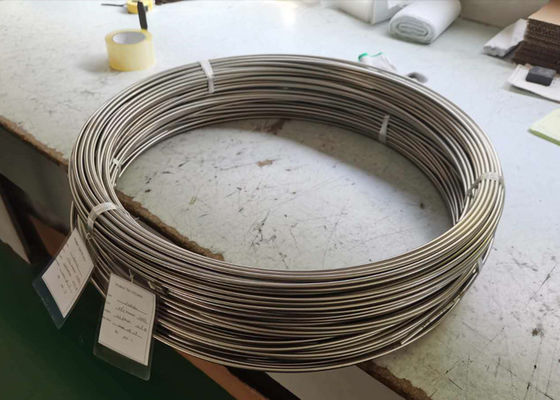

AMS 5542 Custom Tube Inconel X750 Nickel N07750 - Custom Tube Creep Resistance Antioxidant Inconel X750 Wire For Chemical Industry 1

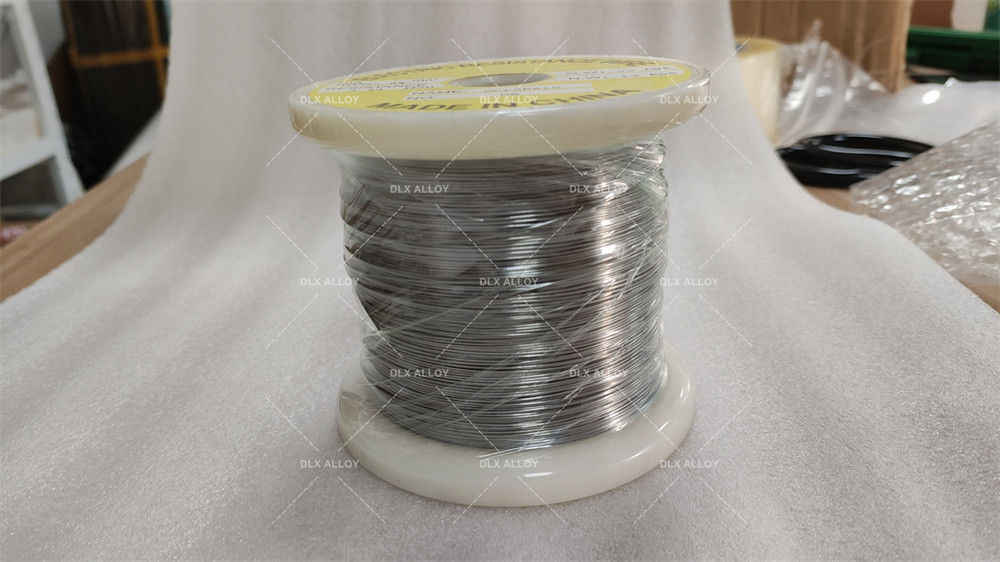

AMS 5542 Plate Inconel X750 Nickel N07750 - Plate Creep Resistance Antioxidant Inconel X750 Wire For Chemical Industry 2
AMS 5542 Sheet Inconel X750 Nickel N07750 - Sheet Creep Resistance Antioxidant Inconel X750 Wire For Chemical Industry 3
AMS 5542 Strip Inconel X750 Nickel N07750 - Strip Creep Resistance Antioxidant Inconel X750 Wire For Chemical Industry 4

Creep Resistance Antioxidant Inconel X750 Wire For Chemical Industry 5Creep Resistance Antioxidant Inconel X750 Wire For Chemical Industry 6
