Seawater Corrosion Resistance Inconel X750 Nickel Based Tube
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xDelivery Time | 7-50 Days | Material | Ni Cr Ti |
---|---|---|---|
Nickel(Min) | 70% | Magnetic Permeability | 1.0035 |
Curie Temperature | -125 °C | Density | 8.28 G/cm3 |
CTE, Linear 20°C | 12.6 µm/m-°C | Condition | Hard / Soft |
Sureface | Bright,Oxided | Tensile Strength | 760-1600MPA |
Melting Point | 1390 - 1430℃ | Specific Heat Capacity | 0.431 J/g-°C |
Thermal Conductivity | 12 W/m-K | Elongation | 30 % |
Name | Inconel X750 Tube | ||
Highlight | Inconel X750 Nickel Based Tube,Inconel X750 Tube,Seawater Inconel X750 Tube |
- Inconel Series

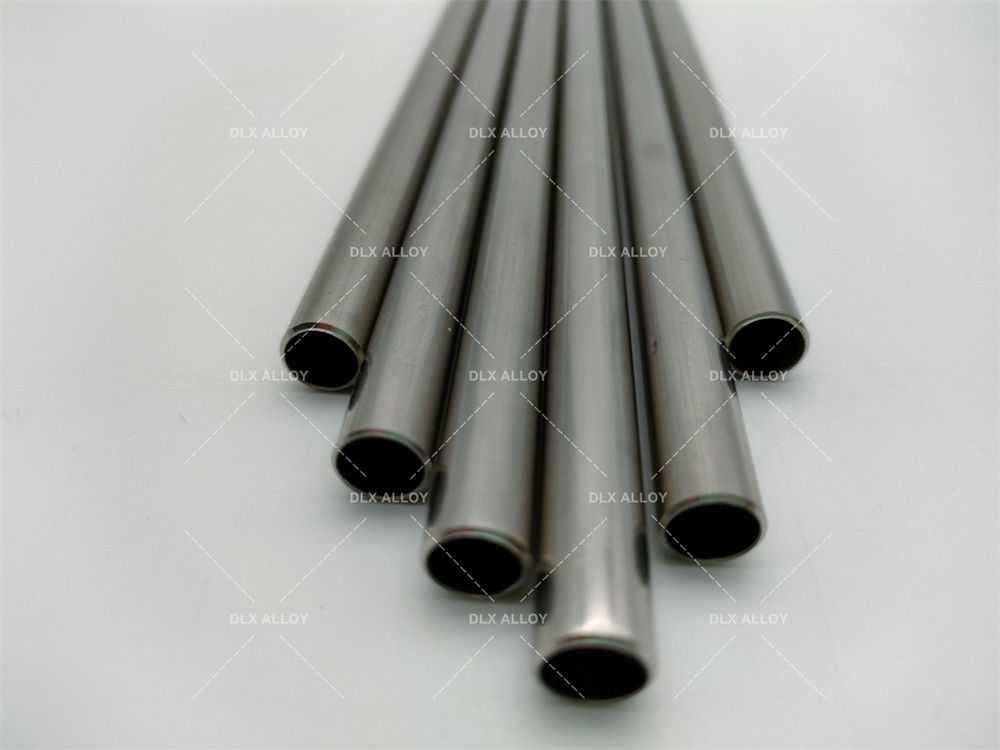

Inconel X-750 alloy tube is a high-strength, high-temperature nickel-based alloy tube. It has excellent oxidation and corrosion resistance and is widely used in aerospace, energy, chemical industry, and other fields.
-
Product Performance
1. High-temperature strength: It has excellent strength and stability at high temperatures.
2. Good corrosion resistance: It has good resistance to oxidative and reductive media.
3. Machinability: It has good processing performance and is suitable for various processing technologies.
-
Production Process
1. Raw material preparation: Select high-purity nickel alloy as raw material.
2. Mixing and batching: Add appropriate amount of alloy elements into the raw material according to the formula.
3. Melting: Put the mixed raw materials into the furnace for high-temperature melting.
4. Casting: Pour the molten alloy liquid into the mold for molding.
5. Heat treatment: Perform heat treatment on the formed alloy tube to improve its mechanical properties.
6. Finished product inspection: Strictly inspect the finished product to ensure that the product quality meets the standard requirements.
-
Chemical Properties of Inconel X750
Element | Ni +Co | Cr | Nb | Ti | C | Mn | Si | Cu | Al | S | Iron |
Chemical Composition (%) |
70% Min |
14%- 17% |
0.7%- 1.2% |
2.25%- 2.75% |
0.08% max | 1% max | 0.5% max | 0.30% max | 0.4%-1.0% | 0.01% max | 5%-9% |
-
Application
1. Aerospace Industry: Inconel X-750 alloy pipes are widely used in the aerospace industry for manufacturing components of aircraft engines, such as turbine blades, combustion chambers, and jet pipes. Its high-temperature strength and excellent corrosion resistance make it an ideal material for these critical components.
2. Energy Sector: In the energy sector, Inconel X-750 alloy pipes are commonly used for manufacturing high-temperature and high-pressure equipment for oil and gas extraction, such as well pipes, valves, and oil & gas pipelines. Its corrosion resistance and high-temperature strength enable it to operate stably in harsh working environments for extended periods.
3. Chemical Industry: Due to its outstanding corrosion resistance, Inconel X-750 alloy pipes are also widely used in the chemical industry for manufacturing chemical reactors, steam generators, and high-temperature reaction equipment.
4. Nuclear Industry: In the nuclear industry, Inconel X-750 alloy pipes are used for manufacturing components of nuclear reactors, such as reactor pressure vessels, fuel elements, and heat exchangers. Its high-temperature strength and radiation resistance make it an ideal material for nuclear equipment.
- ,Type we could offer
AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape AMS 5542 Custom Tube Inconel X750 Nickel N07750 - Custom Tube AMS 5542 Plate Inconel X750 Nickel N07750 - Plate AMS 5542 Sheet Inconel X750 Nickel N07750 - Sheet AMS 5542 Strip Inconel X750 Nickel N07750 - Strip
