Resistance To Creep And Rupture Inconel 625 Rods For Extreme Temperature Environments

Product Details

Place of Origin: China

Brand Name: DLX

Certification: CE,ROHS

Model Number: inconel 625 bar

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $30-$50

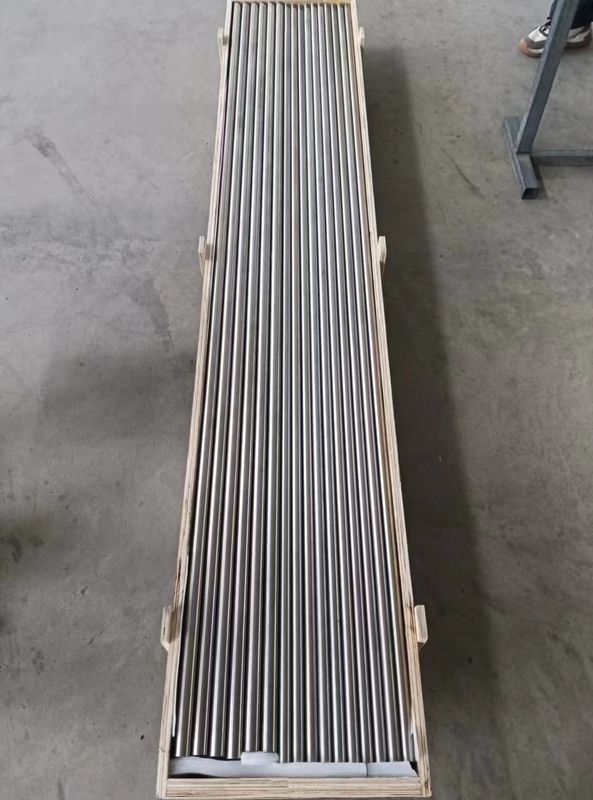

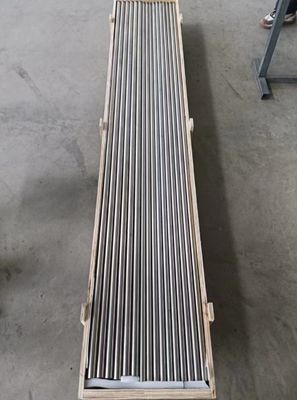

Packaging Details: Inconel 625 bar packed in wooden case

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Creep Resistant Inconel 625 Rods

,

Oxided Inconel 625 Rods

,

Inconel Alloy 8.44 g/cm3

Material:
Ni Co Mn
Nickel(Min):
50-55%
Thermal Conductivity:
9.8 W/m*℃
Curie Point:
-319℉ (-195℃)
Density:
8.44 G/cm3
Yield Strength:
479.2-528.8 MPA
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Tensile Strength:
1276-1034 MPA
Melting Point:
1350℃
Elongation:
34-54%
Product Name:
Competitive Price Nickel-based Alloy Inconel 625 Bar
Material:
Ni Co Mn
Nickel(Min):
50-55%
Thermal Conductivity:
9.8 W/m*℃
Curie Point:
-319℉ (-195℃)
Density:
8.44 G/cm3
Yield Strength:
479.2-528.8 MPA
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Tensile Strength:
1276-1034 MPA
Melting Point:
1350℃
Elongation:
34-54%
Product Name:
Competitive Price Nickel-based Alloy Inconel 625 Bar
Description
Resistance To Creep And Rupture Inconel 625 Rods For Extreme Temperature Environments

Resistance To Creep And Rupture Inconel 625 Rods For Extreme Temperature Environments


Inconel Series

Inconel 625 is a nickel based alloy with excellent performance, including excellent corrosion resistance, high-temperature stability, and mechanical strength. It is widely used in aerospace, energy, chemical and other fields.

Product Information

1. Inconel 625 alloy has excellent corrosion resistance, and its corrosion rate is very low in both marine and non marine environments. It can resist the corrosion of seawater and various salt solutions, and has good resistance to the corrosion of chemical substances such as nitric acid and phosphoric acid.

2. Inconel 625 also exhibits good high-temperature stability, maintaining good tensile and fatigue properties at temperatures up to 950 ℃.

3. According to different needs, various specifications can be produced, including cold rolled thin plates (thickness 4mm-5mm), hot rolled plates (thickness 4mm-14mm), bars (diameter 8mm-300mm), and pipes (diameter 6mm-150mm).

4. According to different application fields and requirements, the surface treatment of Inconel 625 products varies. Bars are usually supplied after polishing or turning treatment, while plates are supplied after solid solution pickling and trimming, while pipes are supplied in a solid solution pickling or bright annealing state.



Production Process

1. Raw Material Preparation: High-quality nickel alloy raw materials are selected to ensure stable material composition and quality.

2. Melting and Alloying: Vacuum induction melting technology is utilized to control the alloy composition, with the addition of appropriate alloying elements for alloying.

3. Billet Preparation: The molten alloy is cast into ingots, which are processed into suitable rod billets through hot rolling or hot extrusion.

4. Finishing Processing: The rod billets undergo finishing processing, such as rolling and drawing, to adjust the diameter and surface roughness of the rods.

5. Heat Treatment: Suitable heat treatment processes are conducted to enhance the alloy's mechanical properties and corrosion resistance.

6. Surface Treatment: Surface polishing, acid cleaning, and other treatments are applied to improve the surface finish and overall aesthetics of the products.

7. Quality Inspection: Stringent quality inspections are carried out according to international standards to ensure that the products meet the specified performance requirements of customers.

Resistance To Creep And Rupture Inconel 625 Rods For Extreme Temperature Environments 0

  • Chemical Properties Of Inconel 625 Bar

Steel grade
Inconel 600
Inconel 601
Inconel 625
Inconel 718
Inconel 725
Inconel X-750
Corresponding brand
N06600/2.4816/1Cr15Ni75Fe8/NS312/CY40
N06601/2.4851/1Cr23Ni60Fe13AI/NS313
N06625/2.4856/0Cr20Ni65Mo10bN4/NS336
N07718/2.4668/GH4169
N07725
N07750/2.4669/GH4145
Chemical composition%
C≤
0.150
0.100
0.100
0.080
0.030
0.080
Mn≤
1.00
1.00
0.50
0.35
0.35
1.00
P≤
/
/
0.015
0.015
0.015
/
S≤
0.015
0.015
0.015
0.015
0.010
0.010
Si≤
0.50
0.50
0.50
0.35
0.20
0.50
Cr≤
14.0-17.0
21.0-25.0
20.0-23.0
17.0-21.0
19.0-22.5
14.0-17.0
Ni≤
≥72.0
58.0-63.0
≥58.0
55.0-59.0
55.0-59.0
≥70
Mo
/
/
8.0-10.0
2.8-3.3
7.0-9.5
/
Cu
≤0.50
≤1.50
/
≤0.30
/
≤0.50
N
/
/
/

/
/
Nb
/
/
3.15-4.15
4.75-5.50
2.75-4.00
0.70-1.20
other
Fe:6.0-10.0
Al:1.0-1.7
Co:≤1.0Ai:≤0.40Tr:0.40Fe:≤5.0
AI:0.20-0.80Ti:0.65-1.15B≤0.006
Tr:1.0-1.7AI≤0.35
Co:≤1.0 AI:0.4-1.0Tr:0.25-2.75Fe:5.0-9.0

Resistance To Creep And Rupture Inconel 625 Rods For Extreme Temperature Environments 1

The applications of Inconel 625 round bars include:

1. Aerospace industry: Inconel 625 bars are used in aircraft engines, gas turbine components, and rocket motors due to their high strength, corrosion resistance, and ability to withstand high temperatures.

2. Chemical processing industry: Inconel 625 bars are used in various chemical processing equipment, such as reactors, heat exchangers, and valves, due to their resistance to corrosion and oxidation in aggressive chemical environments.

3. Oil and gas industry: Inconel 625 bars are used in oil and gas extraction and processing equipment, including downhole tools, wellhead components, and valves, due to their high strength, corrosion resistance, and ability to withstand high-pressure and high-temperature conditions.

4. Nuclear industry: Inconel 625 bars are used in nuclear reactors and related equipment due to their excellent resistance to corrosion and stress corrosion cracking in high-temperature and high-pressure environments.

5. Marine industry: Inconel 625 bars are used in marine applications, such as seawater cooling systems, propeller shafts, and valves, due to their resistance to corrosion in seawater and high strength.

6. Power generation industry: Inconel 625 bars are used in gas turbines, steam turbines, and other power generation equipment due to their high temperature strength, corrosion resistance, and ability to withstand high-stress conditions.

7. Automotive industry: Inconel 625 bars are used in high-performance automotive engines and exhaust systems due to their high temperature strength, resistance to thermal fatigue, and corrosion resistance.

8. Heat treatment industry: Inconel 625 bars are used in heat treatment furnaces and equipment due to their high temperature strength, resistance to oxidation, and ability to withstand thermal cycling.

9. Medical industry: Inconel 625 bars are used in medical implants and instruments due to their biocompatibility, resistance to corrosion in body fluids, and high strength.

10. Aerospace fasteners: Inconel 625 bars are used to manufacture high-strength fasteners for aerospace applications, such as bolts, screws, and studs, due to their high strength and corrosion resistance.

Resistance To Creep And Rupture Inconel 625 Rods For Extreme Temperature Environments 2

contact us:

email:sales7@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Product Available Size:
Wires: Diameter0.5~7.5mm
Rods:Diameter8.0~200mm
Strip:Thickness0.5~2.5mm, Width5~180mm
Plate: Customized
Tube: Customized
