Monel 400 Copper Nickel Alloy Spring Temper Wire Nickel Alloy Wire

Name: Monel 400 Copper Nickel Alloy Spring Temper Wire Nickel Alloy Wire
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: Monel 400
Price: 40.00 USD
Availability: InStock

Brand Name:	DLX
Model Number:	Monel 400
MOQ:	5
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China Jiangsu

Certification:

CE,ROHS

Material:

Nickel Copper

Nickel(Min):

63%

Curie Temperature:

21-49℃

Density:

8.05g/cm3

Application:

Anti-corrosion

Condition:

Hard / Soft

Sureface:

Bright,Oxided

Delivery Time:

7-50 Days

Melting Point:

1288-1343℃

Name:

Monel 400 Wire

Packaging Details:

Spool package with Carton box, Coil package with polybag for monel 400 wire

Supply Ability:

500 tons per month

Highlight:

Nickel Alloy Spring Temper Wire

Monel 400 Spring Temper Wire

Monel 400 Nickel Alloy Wire

Product Description

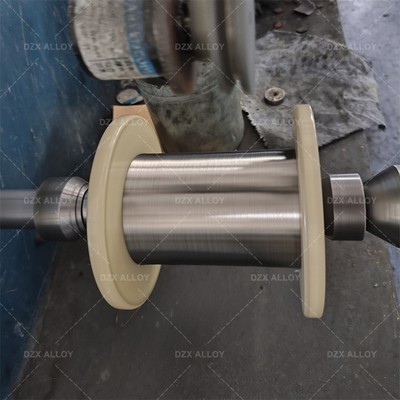

Monel 400 Copper Nickel Alloy Spring Temper Wire Nickel Alloy Wire 0

Monel 400 Copper-Nickel Alloy Spring Temper Wire Nickel Alloy Wire

Monel Series

Monel 400 wire is an exceptional alloy product renowned for its outstanding corrosion resistance. Composed primarily of nickel and copper, it exhibits remarkable resistance to corrosion, particularly in seawater, acidic, and alkaline environments. Monel 400 wire offers high strength and excellent formability, allowing for easy shaping into desired configurations. It also features low magnetic permeability, making it suitable for applications where non-magnetic properties are required.

DLX can make the monel 400 wire from dia 0.05mm to 8mm. The rod diameter from 8mm to 200mm.

Chemical Properties of Monel 400

Ni	Cu	Al	Ti	C	Mn	Fe	S	Si
63.0-70.0	27-33	2.30-3.15	.35-.85	0.25 max	1.5 max	2.0 max	0.01 max	0.50 max

Features

. Exceptional Corrosion Resistance
. High Strength and Durability
. Excellent Heat and Chemical Resistance
. Wide Temperature Range
. Good Formability and Weldability
. Low Magnetic Permeability
. Resistance to Erosion and Cavitation

,Mechanical Properties

Typical Room Temperature Tensile Properties of Annealed Material

Product Form	Condition	Tensile (ksi)	.2% Yield (ksi)	Elongation %	Hardness
Rod & Bar	Hot-Finished/Aged	140-190	100-150	30-20	27-38 HRC
Rod & Bar	Hot Finished/Annealed	90-110	40-60	45-25	75-90 HRB
Rod & Bar	Hot Finished/Annealed/Aged	130-165	85-120	35-20	24-35 HRC
Rod & Bar	Cold-Drawn/Aged	135-185	95-160	30-15	25-41 HRC
Rod & Bar	Cold-Drawn/Annealed/Aged	130-190	85-120	30-20	24-35 HRC
Plate	ot-Finished/Aged	140-180	100-135	30-20	27-37 HRC
Sheet	Cold-Rolled/Annealed	90-105	40-65	45-25	85 HRB Max

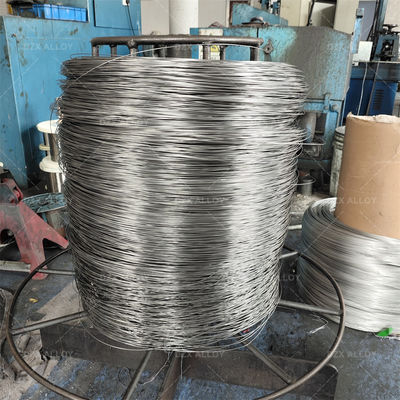

Monel 400 Copper Nickel Alloy Spring Temper Wire Nickel Alloy Wire 2
