Monel 400 Wire ASTM B164 Uns N04400 Nickel Alloy Wire

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: Monel 400

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: Spool package with Carton box, Coil package with polybag for monel 400 wire

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Uns N04400 Nickel Alloy Wire

,

Nickel Copper Monel 400 Wire

,

ASTM B164 Nickel Alloy Wire

Material:
Nickel Copper
Nickel(Min):
63%
Curie Temperature:
21-49℃
Density:
8.05g/cm3
Application:
Anti-corrosion
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Melting Point:
1288-1343℃
Name:
Monel 400 Wire
Material:
Nickel Copper
Nickel(Min):
63%
Curie Temperature:
21-49℃
Density:
8.05g/cm3
Application:
Anti-corrosion
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Melting Point:
1288-1343℃
Name:
Monel 400 Wire
Description

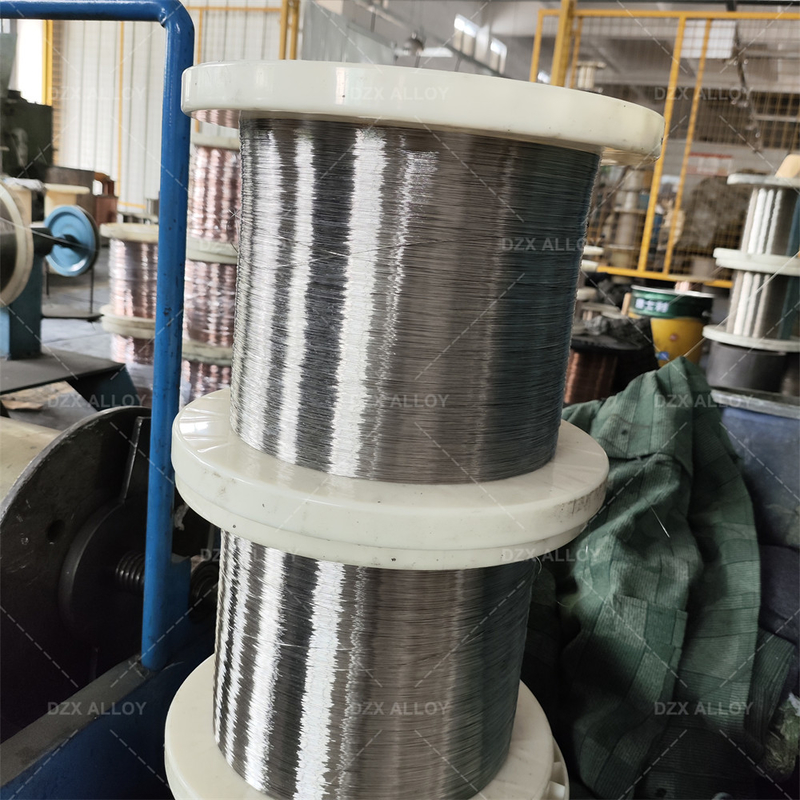

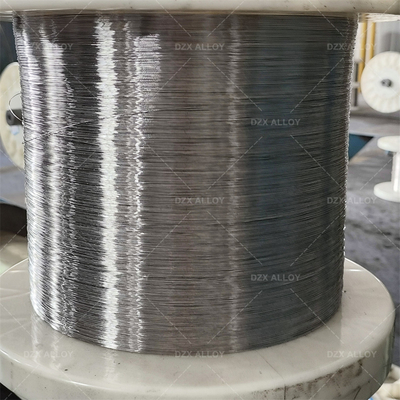

Monel 400 Wire ASTM B164 Uns N04400 Nickel Alloy Wire

Monel 400 Wire ASTM B164 Uns N04400 Nickel Alloy Wire 0

Monel 400 Wire ASTM B164 Uns N04400 Nickl Alloy Wire Price Per Kg
Monel 400 Wire ASTM B164 Uns N04400 Nickel Alloy Wire 1


  • Monel Series

With its exceptional properties, Monel 400 wire finds extensive use in a wide range of industries. It is commonly employed in marine and offshore applications, including seawater piping systems, heat exchangers, and valves, where corrosion resistance is crucial. Monel 400 wire is also highly valued in the chemical processing industry for its resistance to corrosive chemicals. In addition, it finds applications in oil and gas equipment, aerospace components, and electrical connectors, thanks to its corrosion resistance, high strength, and excellent electrical conductivity. The versatility and reliability of Monel 400 wire make it a preferred choice for critical applications requiring corrosion protection and durable performance.


DLX can make the monel 400 wire from dia 0.05mm to 8mm. The rod diameter from 8mm to 200mm.




  • Chemical Properties of Monel 400

Ni Cu Al Ti C Mn Fe S Si
63.0-70.0 27-33 2.30-3.15 .35-.85 0.25 max 1.5 max 2.0 max 0.01 max 0.50 max


  • Application

. Heat Exchangers
. Seawater Desalination
. Food Processing
. Medical and Pharmaceutical
. Automotive
. Chains, cables, springs, valve trim, fasteners for marine service
. Oil and Gas




  • Mechanical Properties

    Typical Room Temperature Tensile Properties of Annealed Material

    Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation % Hardness
    Rod & Bar Hot-Finished/Aged 140-190 100-150 30-20 27-38 HRC
    Rod & Bar Hot Finished/Annealed 90-110 40-60 45-25 75-90 HRB
    Rod & Bar Hot Finished/Annealed/Aged 130-165 85-120 35-20 24-35 HRC
    Rod & Bar Cold-Drawn/Aged 135-185 95-160 30-15 25-41 HRC
    Rod & Bar Cold-Drawn/Annealed/Aged 130-190 85-120 30-20 24-35 HRC
    Plate ot-Finished/Aged 140-180 100-135 30-20 27-37 HRC
    Sheet Cold-Rolled/Annealed 90-105 40-65 45-25 85 HRB Max





    Monel 400 Wire ASTM B164 Uns N04400 Nickel Alloy Wire 2Monel 400 Wire ASTM B164 Uns N04400 Nickel Alloy Wire 3
