Dia 2.4mm 3.2mm 4.0mm Monel 400 Wire Nickel Based Wire

Place of Origin China
Brand Name DLX
Model Number Monel 400
Minimum Order Quantity 5
Packaging Details Spool package with Carton box, Coil package with polybag for monel 400 wire
Delivery Time 5-21 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Nickel Copper Nickel(Min) 63%
Curie Temperature 21-49℃ Density 8.05g/cm3
Application Anti-corrosion Condition Hard / Soft
Sureface Bright,Oxided Delivery Time 7-50 Days
Melting Point 1288-1343℃ Name Monel 400 Wire
Highlight

Dia 4.0mm Monel 400 Wire

,

Monel 400 Nickel Based Wire

,

Dia 2.4mm Monel 400 Wire

Leave a Message
Product Description

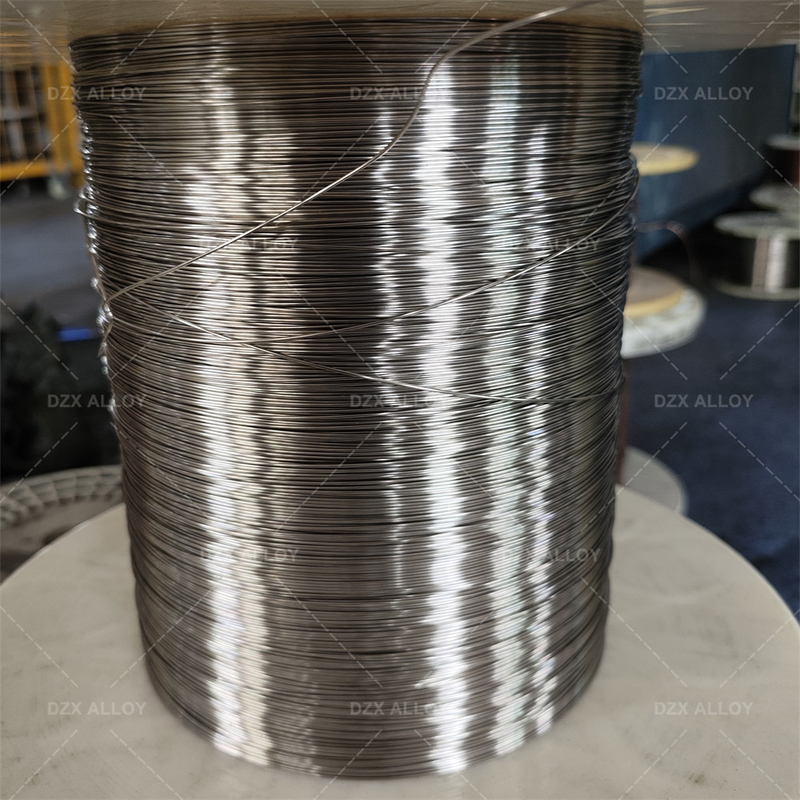

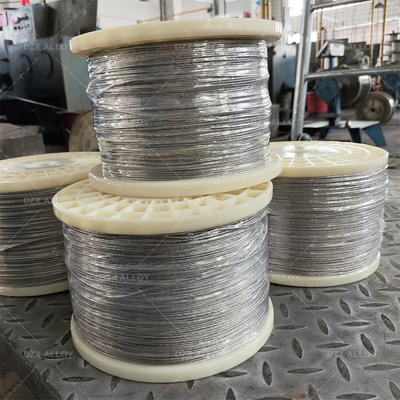

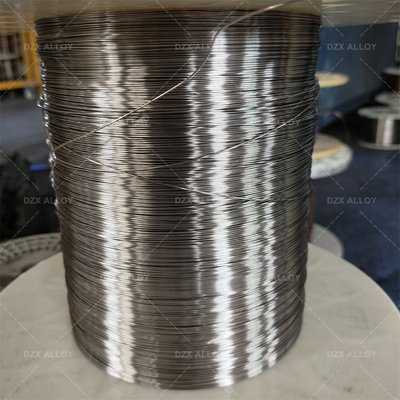

Dia 2.4mm 3.2mm 4.0mm Monel 400 Wire Nickel Based Wire 0

Dia 2.4mm 3.2mm 4.0mm Monel 400 Wire Nickel Based Wire
Dia 2.4mm 3.2mm 4.0mm Monel 400 Wire Nickel Based Wire 1


  • Monel Series

Monel 400 wire is a highly versatile and reliable alloy renowned for its exceptional corrosion resistance, making it ideal for various industries. Composed primarily of nickel and copper, Monel 400 wire exhibits superior resistance to corrosive environments, including seawater, acids, and alkalis. Its high strength and excellent formability allow for easy fabrication and shaping into desired configurations. With its wide temperature range, low magnetic permeability, and excellent durability, Monel 400 wire is widely used in applications such as marine equipment, chemical processing, oil and gas, and aerospace, where corrosion protection and reliable performance are paramount.


DLX can make the monel 400 wire from dia 0.05mm to 8mm. The rod diameter from 8mm to 200mm.




  • Chemical Properties of Monel 400

Ni Cu Al Ti C Mn Fe S Si
63.0-70.0 27-33 2.30-3.15 .35-.85 0.25 max 1.5 max 2.0 max 0.01 max 0.50 max


  • Application

. Marine and Offshore
. Chemical Processing
.
Oil and Gas
. Aerospace and Defense
. Electronics and Electrical
. Heat Exchangers
. Seawater Desalination




  • Mechanical Properties

    Typical Room Temperature Tensile Properties of Annealed Material

    Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation % Hardness
    Rod & Bar Hot-Finished/Aged 140-190 100-150 30-20 27-38 HRC
    Rod & Bar Hot Finished/Annealed 90-110 40-60 45-25 75-90 HRB
    Rod & Bar Hot Finished/Annealed/Aged 130-165 85-120 35-20 24-35 HRC
    Rod & Bar Cold-Drawn/Aged 135-185 95-160 30-15 25-41 HRC
    Rod & Bar Cold-Drawn/Annealed/Aged 130-190 85-120 30-20 24-35 HRC
    Plate ot-Finished/Aged 140-180 100-135 30-20 27-37 HRC
    Sheet Cold-Rolled/Annealed 90-105 40-65 45-25 85 HRB Max
