Nickel Copper Wire Monel 400 With Dia 0.25mm

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: Monel 400

Payment & Shipping Terms

Minimum Order Quantity: 5

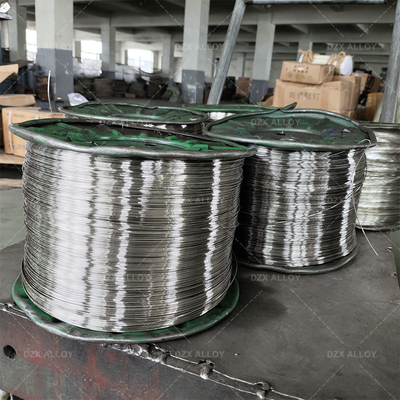

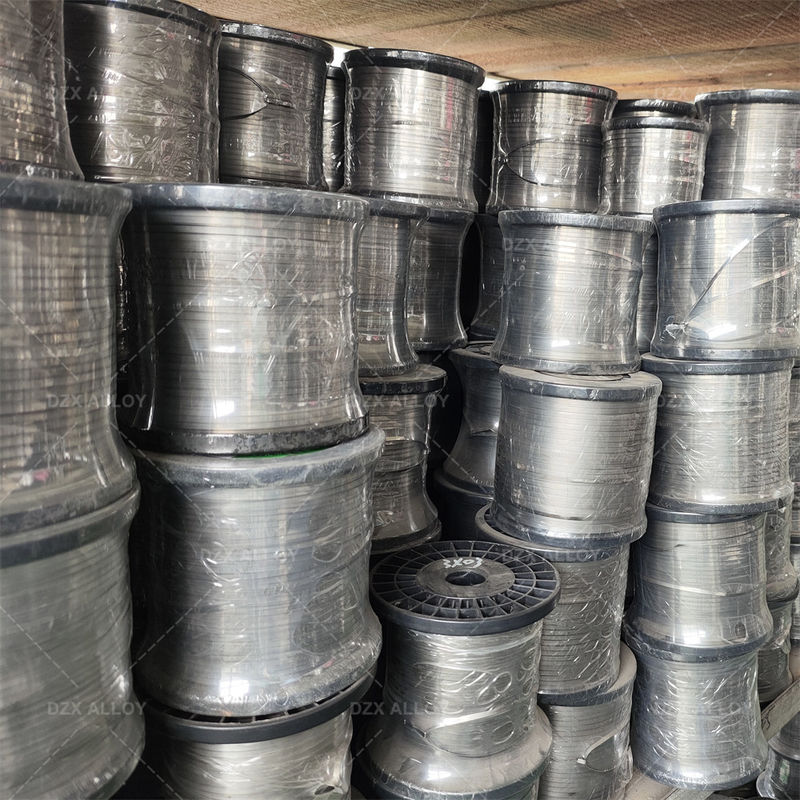

Packaging Details: Spool package with Carton box, Coil package with polybag for monel 400 wire

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Monel 400 Nickel Copper Wire

,

Dia 0.25mm Nickel Copper Wire

,

Monel 400 Alloy Wire

Material:
Nickel Copper
Nickel(Min):
63%
Curie Temperature:
21-49℃
Density:
8.05g/cm3
Application:
Anti-corrosion
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Melting Point:
1288-1343℃
Name:
Monel 400 Wire
Material:
Nickel Copper
Nickel(Min):
63%
Curie Temperature:
21-49℃
Density:
8.05g/cm3
Application:
Anti-corrosion
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Melting Point:
1288-1343℃
Name:
Monel 400 Wire
Description

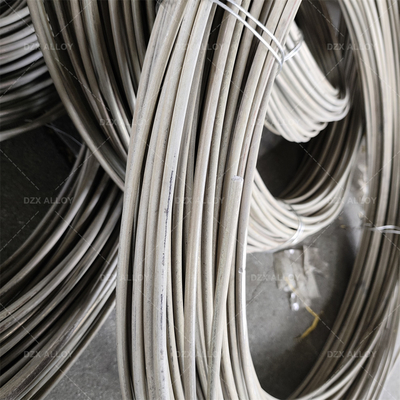

Nickel Copper Wire Monel 400 With Dia 0.25mm

Nickel Copper Wire Monel 400 With Dia 0.25mm 0

Anti-corrosion hot rolled UNS NO4400 nickel based monel 400 wire
Nickel Copper Wire Monel 400 With Dia 0.25mm 1


  • Monel Series

Monel 400 wire is a premium alloy known for its exceptional corrosion resistance, high strength, and excellent formability. Composed primarily of nickel and copper, it offers superior performance in demanding environments such as marine, chemical, and oil and gas industries. With its wide temperature range, low magnetic permeability, and remarkable durability, Monel 400 wire is the preferred choice for critical applications requiring corrosion protection and reliable performance.


DLX can make the monel 400 wire from dia 0.05mm to 8mm. The rod diameter from 8mm to 200mm.




  • Chemical Properties of Monel 400

Ni Cu Al Ti C Mn Fe S Si
63.0-70.0 27-33 2.30-3.15 .35-.85 0.25 max 1.5 max 2.0 max 0.01 max 0.50 max


  • Applications of Monel 400 Wire:

1. Marine and Offshore: Monel 400 wire is extensively used in marine and offshore applications, including seawater piping systems, heat exchangers, condensers, and other critical components.

2. Chemical Processing: Monel 400 wire is highly valued in the chemical processing industry due to its resistance to various corrosive chemicals, such as sulfuric acid, hydrofluoric acid, and alkaline solutions.

3. Oil and Gas: Monel 400 wire finds widespread use in the oil and gas industry, particularly in offshore exploration and production operations.

4. Aerospace and Defense: Monel 400 wire is utilized in aerospace and defense applications that demand exceptional corrosion resistance and high strength-to-weight ratio.

5. Electronics and Communication: Monel 400 wire's low magnetic permeability and excellent electrical conductivity make it valuable in electronics and communication applications.


  • Mechanical Properties

    Typical Room Temperature Tensile Properties of Annealed Material

    Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation % Hardness
    Rod & Bar Hot-Finished/Aged 140-190 100-150 30-20 27-38 HRC
    Rod & Bar Hot Finished/Annealed 90-110 40-60 45-25 75-90 HRB
    Rod & Bar Hot Finished/Annealed/Aged 130-165 85-120 35-20 24-35 HRC
    Rod & Bar Cold-Drawn/Aged 135-185 95-160 30-15 25-41 HRC
    Rod & Bar Cold-Drawn/Annealed/Aged 130-190 85-120 30-20 24-35 HRC
    Plate ot-Finished/Aged 140-180 100-135 30-20 27-37 HRC
    Sheet Cold-Rolled/Annealed 90-105 40-65 45-25 85 HRB Max





    Nickel Copper Wire Monel 400 With Dia 0.25mm 2

    Nickel Copper Wire Monel 400 With Dia 0.25mm 3
