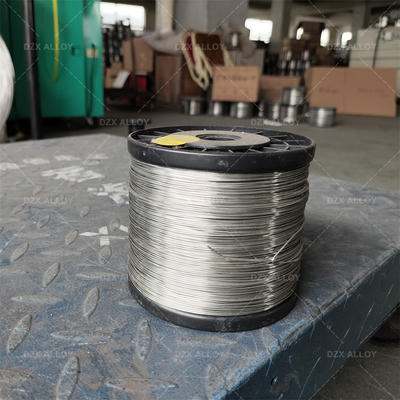

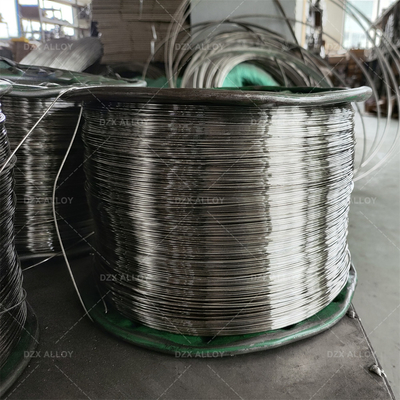

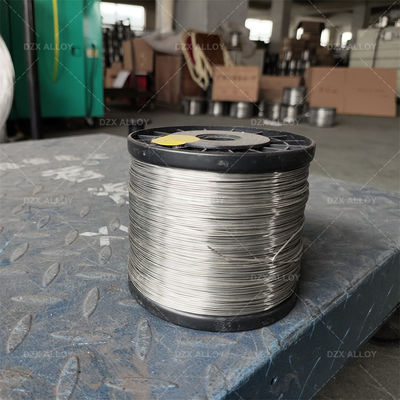

Thin Monel 400 Nickel Alloy Wire 0.1mm 0.2mm 0.3mm 0.4mm 0.5mm

Place of Origin China
Brand Name DLX
Model Number Monel 400
Minimum Order Quantity 5
Packaging Details Spool package with Carton box, Coil package with polybag for monel 400 wire
Delivery Time 5-21 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Nickel Copper Nickel(Min) 63%
Curie Temperature 21-49℃ Density 8.05g/cm3
Application Anti-corrosion Condition Hard / Soft
Sureface Bright,Oxided Delivery Time 7-50 Days
Melting Point 1288-1343℃ Name Monel 400 Wire
Highlight

Thin Monel 400 Wire

,

Nickel Alloy Monel 400 Wire

,

Monel 400 Wire 0.1mm

Leave a Message
Product Description

Thin Monel 400 Nickel Alloy Wire 0.1mm 0.2mm 0.3mm 0.4mm 0.5mm 0

0.1mm 0.2mm 0.3mm 0.4mm 0.5mm Very Thin Monel 400 Nickel Alloy 400 Wire
Thin Monel 400 Nickel Alloy Wire 0.1mm 0.2mm 0.3mm 0.4mm 0.5mm 1


  • Monel Series

Monel 400 wire is a highly versatile and corrosion-resistant alloy that is widely used in various industries. It is composed primarily of nickel (about 67%) and copper (about 30%), with small amounts of iron, manganese, carbon, and silicon. Monel 400 wire provides exceptional resistance to corrosive environments, making it ideal for applications in marine, chemical, oil and gas, and aerospace industries.

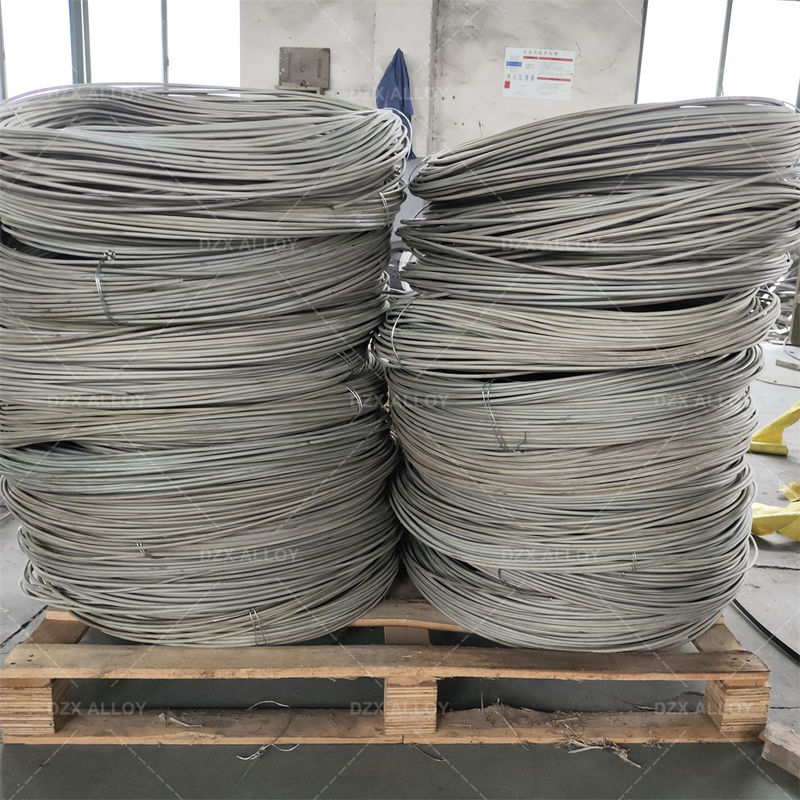

DLX can make the monel 400 wire from dia 0.05mm to 8mm. The rod diameter from 8mm to 200mm.




  • Chemical Properties of Monel 400

Ni Cu Al Ti C Mn Fe S Si
63.0-70.0 27-33 2.30-3.15 .35-.85 0.25 max 1.5 max 2.0 max 0.01 max 0.50 max


  • Application

1. Marine and Offshore: Monel 400 wire is extensively used in marine and offshore applications, including seawater desalination plants, offshore platforms, and marine equipment.

2. Chemical Processing: Monel 400 wire is widely employed in the chemical industry for handling corrosive chemicals, including sulfuric acid, hydrofluoric acid, and alkaline solutions.

3. Oil and Gas: Monel 400 wire finds application in the oil and gas industry, particularly in offshore drilling and production operations.

4. Aerospace: Monel 400 wire is utilized in various aerospace applications, including aircraft fuel systems, exhaust components, and engine parts.

5. Electrical and Electronic: Monel 400 wire's low magnetic permeability and excellent electrical conductivity make it valuable in electrical and electronic applications.




  • ,Mechanical Properties

    Typical Room Temperature Tensile Properties of Annealed Material

    Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation % Hardness
    Rod & Bar Hot-Finished/Aged 140-190 100-150 30-20 27-38 HRC
    Rod & Bar Hot Finished/Annealed 90-110 40-60 45-25 75-90 HRB
    Rod & Bar Hot Finished/Annealed/Aged 130-165 85-120 35-20 24-35 HRC
    Rod & Bar Cold-Drawn/Aged 135-185 95-160 30-15 25-41 HRC
    Rod & Bar Cold-Drawn/Annealed/Aged 130-190 85-120 30-20 24-35 HRC
    Plate ot-Finished/Aged 140-180 100-135 30-20 27-37 HRC
    Sheet Cold-Rolled/Annealed 90-105 40-65 45-25 85 HRB Max
