Product Details
Place of Origin: China
Brand Name: DLX
Certification: CE,ROHS
Model Number: ni200 Pure Nickel wire
Payment & Shipping Terms
Minimum Order Quantity: 2kg
Packaging Details: Spool package with Carton box, Coil package with polybag for pure nickel wire 0.025mm
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
Pure Nickel Wire 0.025mm |
Grade: |
200 201 N4 N6 |
Certificate: |
ISO9001 |
Material: |
Ni |
Elongation (≥ %):: |
35 |
Ni(min): |
99.6%-99.94% |
Application:: |
Industry |
Melting Point: |
1435-1445℃ |
M.O.Q:: |
1KG |
Delivery: |
7-25 Days |
Shape: |
Wire |
Size: |
0.025-10mm |
Product Name: |
Pure Nickel Wire 0.025mm |
Grade: |
200 201 N4 N6 |
Certificate: |
ISO9001 |
Material: |
Ni |
Elongation (≥ %):: |
35 |
Ni(min): |
99.6%-99.94% |
Application:: |
Industry |
Melting Point: |
1435-1445℃ |
M.O.Q:: |
1KG |
Delivery: |
7-25 Days |
Shape: |
Wire |
Size: |
0.025-10mm |

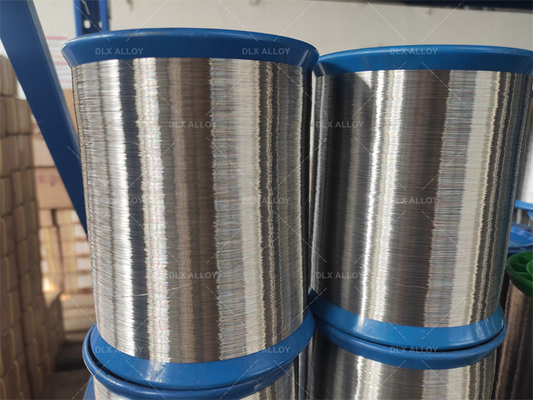

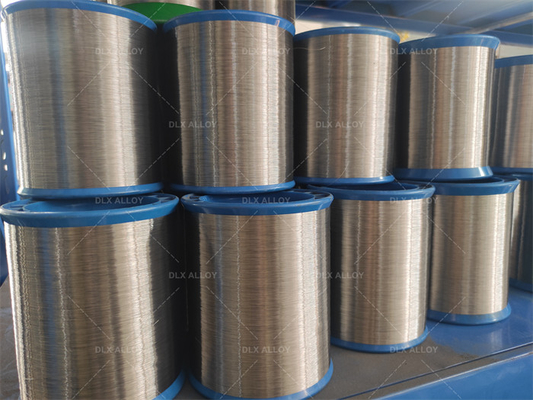

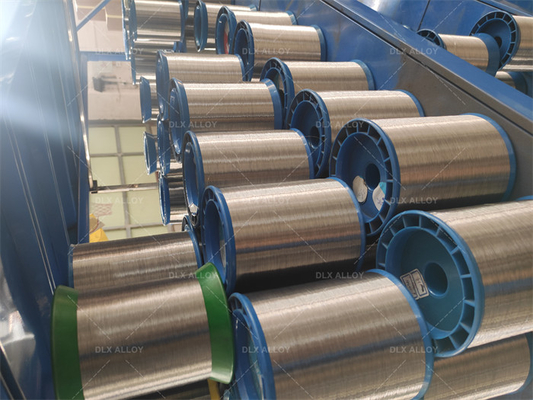

DLX PURE NICKEL WIRE (NI200 NI201) UNS NO2201 0.025MM Bright annealied nickel wire
Descripion:
pure nickel wire exhibits excellent thermal and electrical conductivity, allowing for efficient heat transfer and reliable electrical performance. Its strong magnetic properties make it suitable for applications in electromagnets and magnetic sensors.
Features:
1. Good mechanical strength
2. high corrosion resistance
3. high heat resistance
4. high melting point
5. good mechanical properties
6. good pressure workability in hot and cold state
Applications:
easy to degas, suitable for radio, electric light source, machinery manufacturing, chemical industry, and is an important vacuum electronic device. of structural materials
Size range
Wire: 0.025 to 8.0 mm.
Physical Data
| Density | 8.89g/cm3 |
| Specific Heat | 0.109(456 J/kg.℃) |
| Electrical Resistivity | 0.096×10-6ohm.m |
| Melting Point | 1435-1446℃ |
| Thermal Conductivity | 70.2 W/m-K |
| Mean Coeff Thermal Expansion | 13.3×10-6m/m.℃ |
Typical Mechanical Properties
| Mechanical Properties | Nickel 200 |
| Tensile Strength | 462 Mpa |
| Yield Strength | 148 Mpa |
| Elongation | 47% |
